CAN Card for PCI

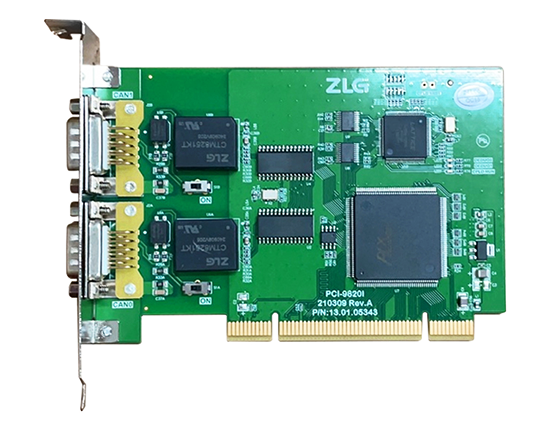

The PCI Series universal CAN card are compatible with PCI2.2 specification and come with the high-performance CAN interface card of 1-4 channels. By plugging the PCI CAN card into the computer’s PCI port.

The PCI-98XX series products are universal CAN cards and used for most PC-control CAN bus occasions. They have high communication speed and powerful real-time performance.

The PCI-50X0 series products are smart CAN cards, i.e. onboard co-processors. They can ensure no CAN data loss when the computer CPU is occupied. They are mostly used in the multi-card IPCs or the multi-task high-load software environments.

This series CAN card support Win2000/XP/WIN7/WIN8/WIN10, various Linux and Vxworks5.5 operating systems.

Product Selection

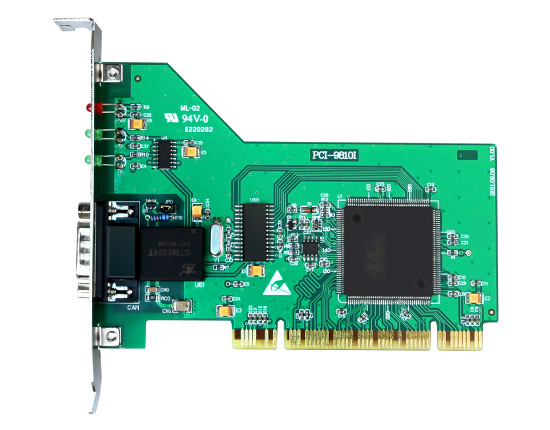

ModelsPCI-9810IPCI-9820IPCI-9840IPCI-9820PCI-5010-UPCI-5020-U
Pictures
FeaturesHigh speed and low latencyHigh speed and low latencyHigh speed and low latencyHigh speed and low latencyHigh speed and low latencyHigh speed and low latency

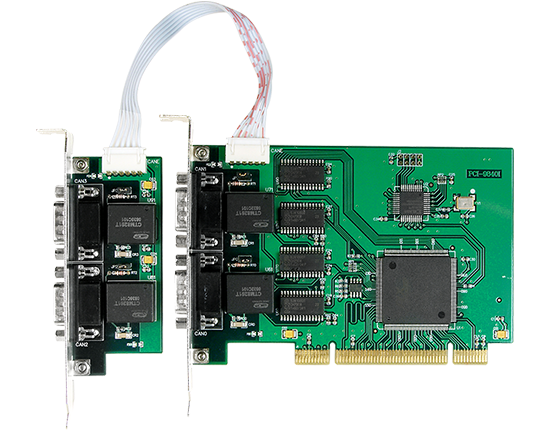

CAN channels1 channel2 channels4 channels2 channels1 channel2 channels
Interface typeDB9 portDB9 portDB9 portDB9 portDB9 portDB9 port
Electrical isolation
Industrial grade
Data reception capability (each channel)14000 frames/second14000 frames/second14000 frames/second12000 frames/second14000 frames/second14000 frames/second
Data transmission capability (eachchannel)4000 frames/second4000 frames/second4000 frames/second3000 frames/second4000 frames/second4000 frames/second
Windows system drivesupportedsupportedsupportedsupportedsupportedsupported
Linux system drive-supportedsupportedsupported--
Vxworks drive-supportedsupportedsupported--

When your computer CPU is overloaded ortoo many PCI devices are inserted, users are recommended to use thePCI-50X0-U Series PCI smart card which is actually an onboard co-processor.It can ensure no CAN data loss when the computer CPU is occupied, and ismostly used in the multi-card IPCs or the multi-task high-load softwareenvironments.

Each high-speed railway station in China uses our PCI CAN cards.

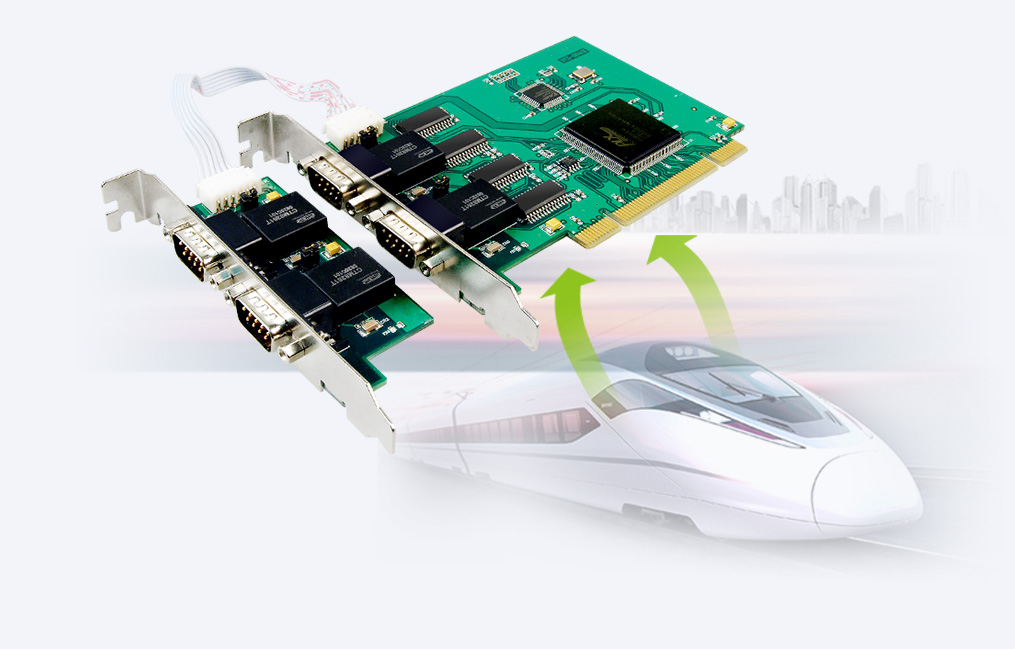

This series CAN card has been proven to be stable and reliable by stringent verification and has been widely used in high-speed railways, metros, aerospace, building security, elevator control, weighing apparatus and medical instruments. Each high-speed railway station in China uses our PCI CAN cards.

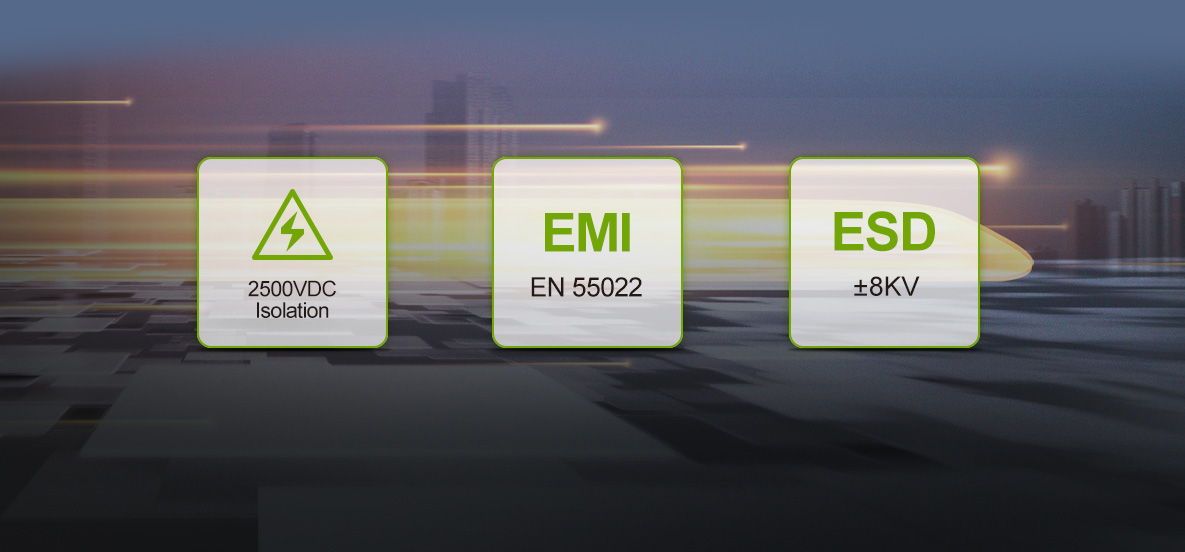

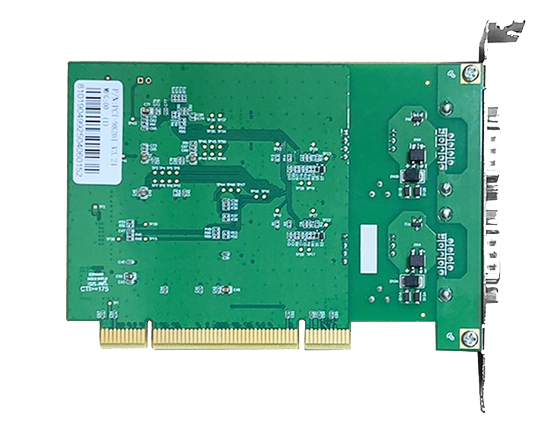

2-Channel CAN Interface with 2500VDC Electrical Isolation

2-channel CAN interface with 2500VDC electrical isolation and ±8KV electrostatic discharge

130,000-frame Super Buffer with no Frame Loss

High-performance type with full-load reception capability at any Baud rate, 130,000-frame super buffer with no frame loss as the top priority

Compliant with CAN2.0B Specification

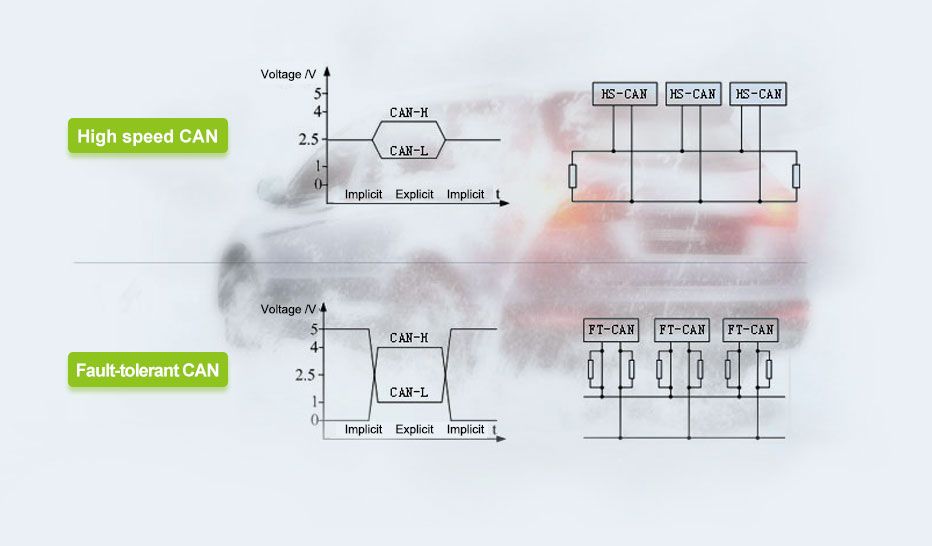

The CAN protocol is fully compliant with CAN2.0B specification and ISO11898-1/2, and compatible with CAN2.0A. Users can choose CANBridge-1054 to support the fault-tolerant CAN standard of ISO11898-3.

CAN Baud rate can be set at random within 1Mbps

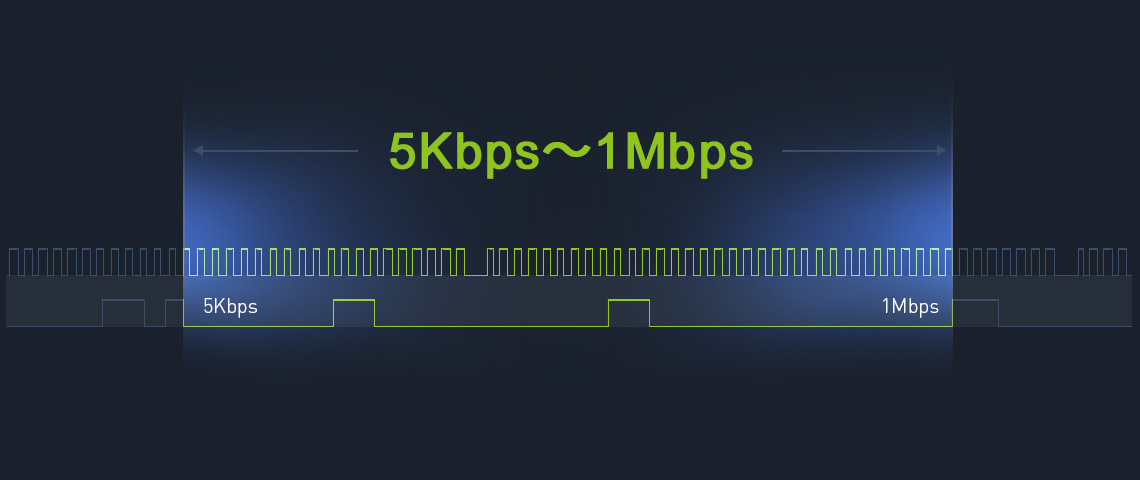

The CAN Baud rate can be set at random in the range of 5kbps to 1Mbps.

Support Various Development Environments

It has effective and easy secondary development function and supports various development environments like VC, C#, Labview, LINUX etc.

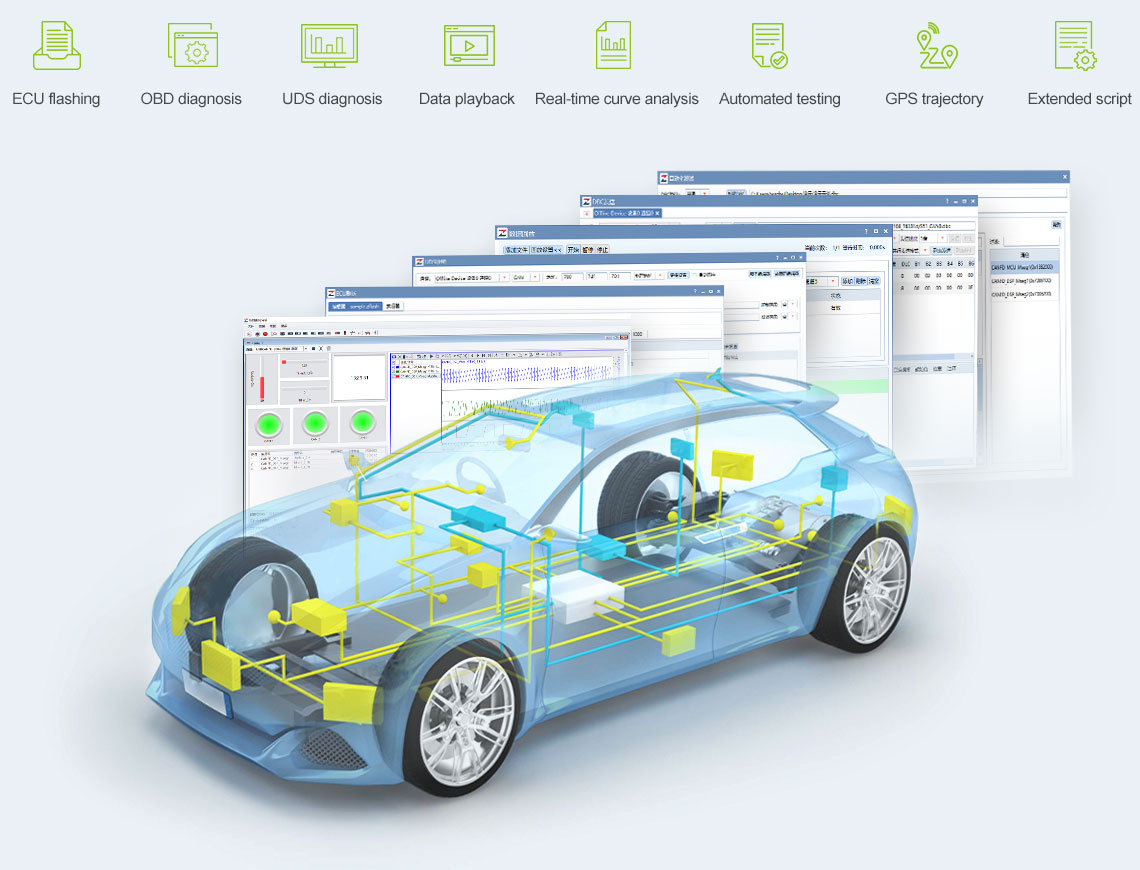

Powerful CANtest Testing and Analyzing Software

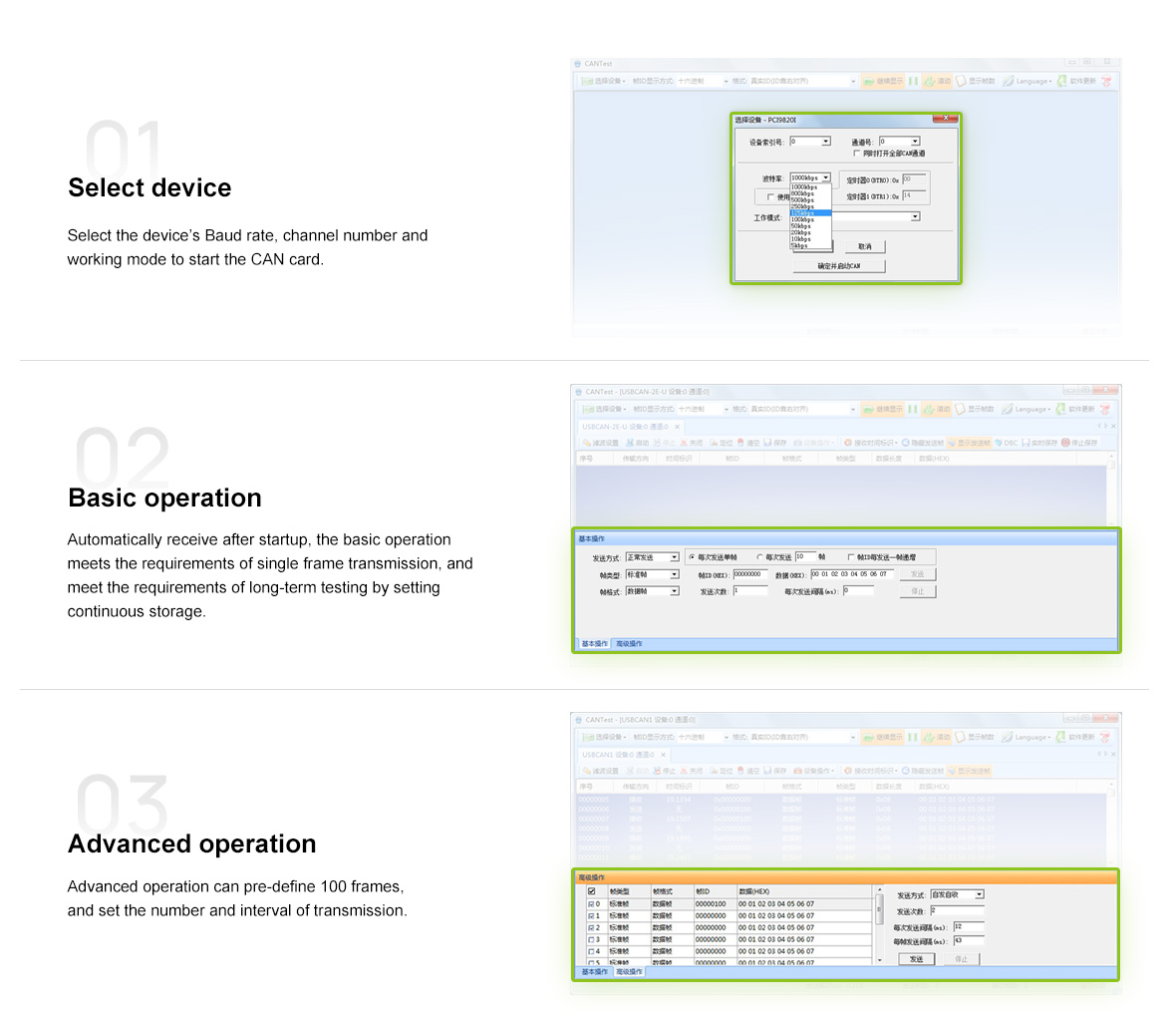

1.Select Baud rate, channel number and operating mode to start CAN card.

2.Perform automatic reception after startup. A single-frame transmission can be achieved in a basic operation. Users can set continuous storage for long-term testing.

3.For advanced operations, 100 frames can be predefined; the transmission counts and intervals can also be set.

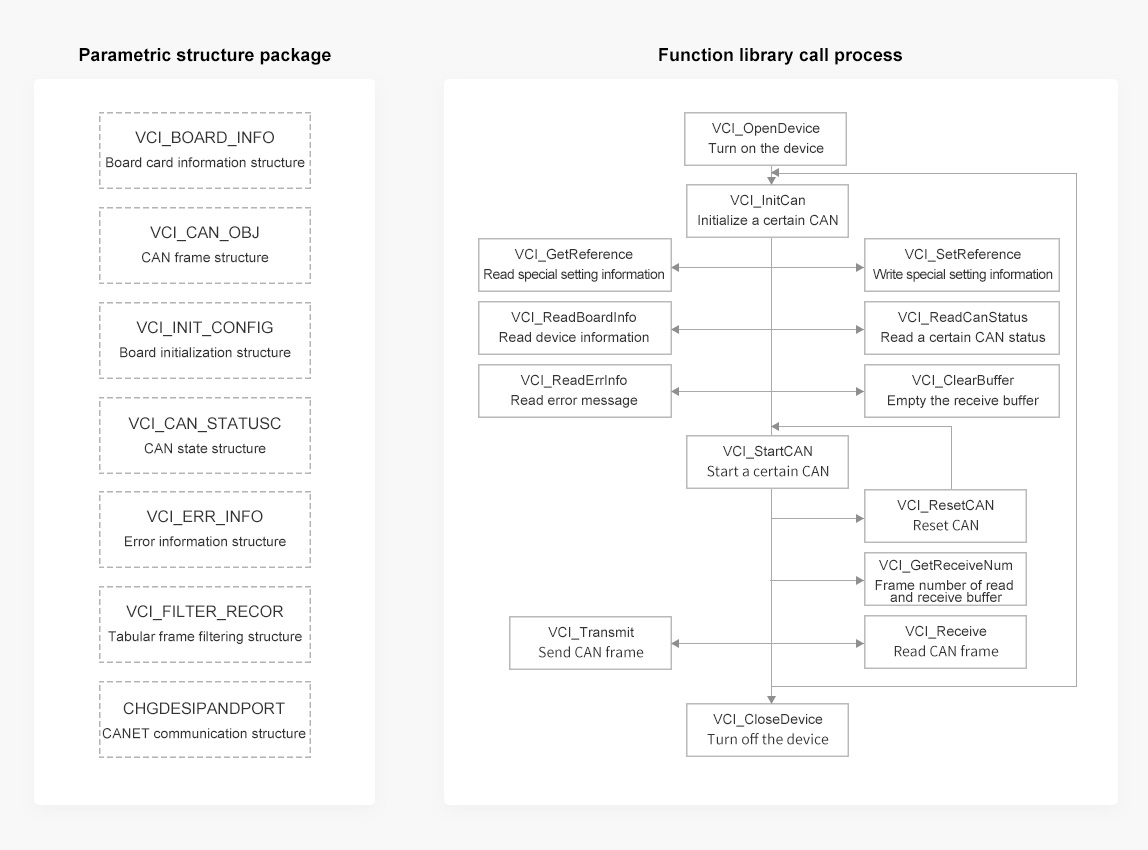

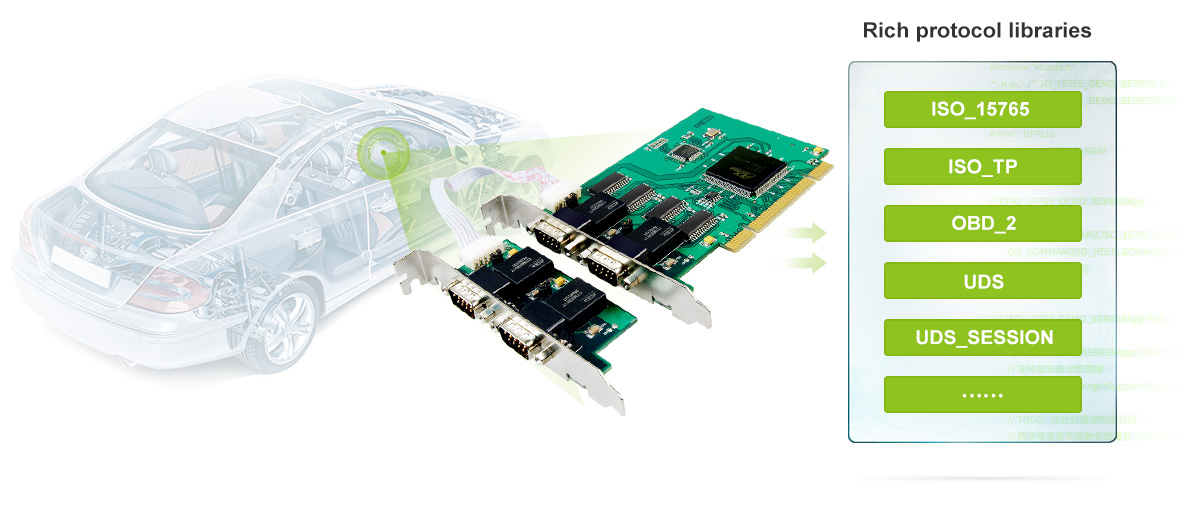

Secondary Development Function Library

All CAN cards from ZHIYUAN Electronics share the same PC secondary development function library (supporting major development environments like VC, VB, C#, LINUX, Labview, LabWindows and Delphi 7), and users can freely switch interfaces just by modifying device types.
