Features
Small volume at industrial grade;
9V~36V wide voltage supply;
Multiple interfaces:
-
1-channel standard 10/100M Ethernet;
-
1-channel isolation CAN;
-
1-channel isolation RS485;

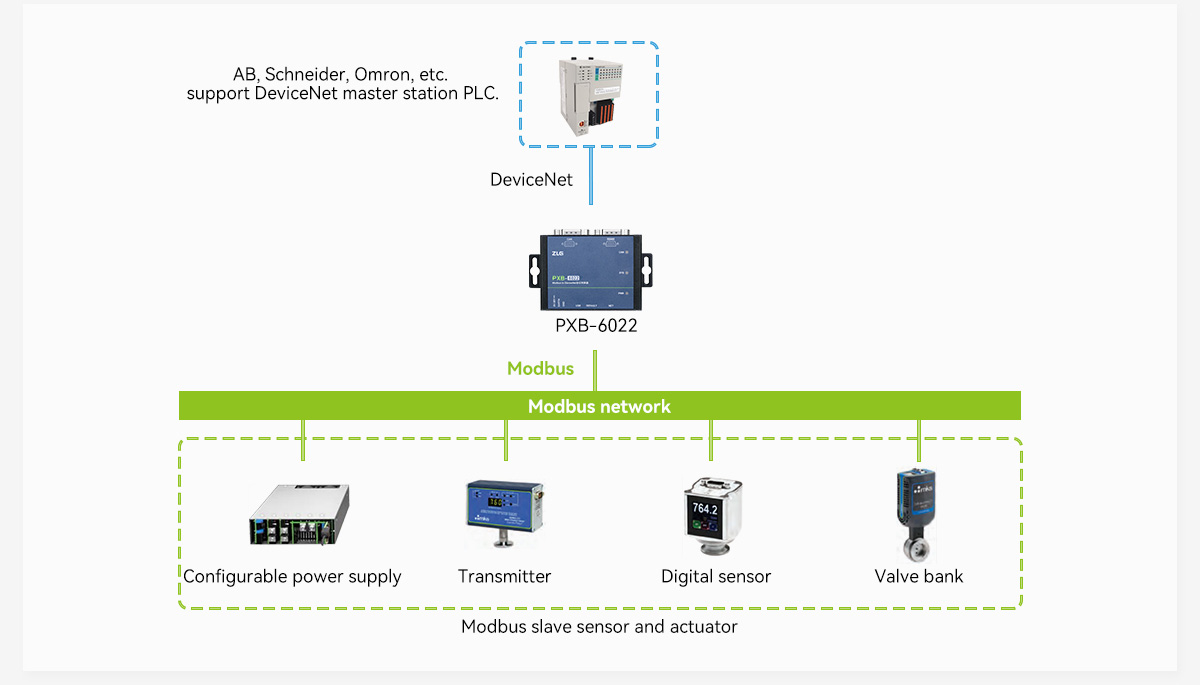

Modbus to DeviceNet slave station protocol conversion;
-
Support Modbus RTU and TCP master station mode;
-
DeviceNet provides the Baud rates of 125K, 250K and 500K;
-
Support DeviceNet I/O scanning;
-
Support the software to change the DeviceNet address;
-
Provide standard EDS files of DeviceNet;
-
15 different levels of input and output bytes are for options,Up to 512 bytes input and 512 bytes output.
