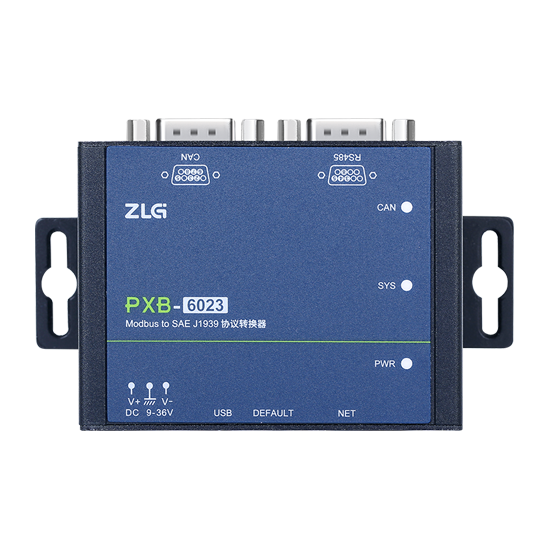

PXB-6023 is a protocol converter for Modbus to J1939 launched by Zhiyuan Electronics. Modbus supports RTU and TCP protocols, and CAN supports up to 1M Baud rate. With a flexible configuration function, PXB-6023 can seamlessly convert Modbus protocol data to J1939 data.
Small volume at industrial grade;
9V~36V wide voltage supply;
Multiple interfaces:
1-channel standard 10/100M Ethernet;
1-channel isolation CAN;
1-channel isolation RS485;

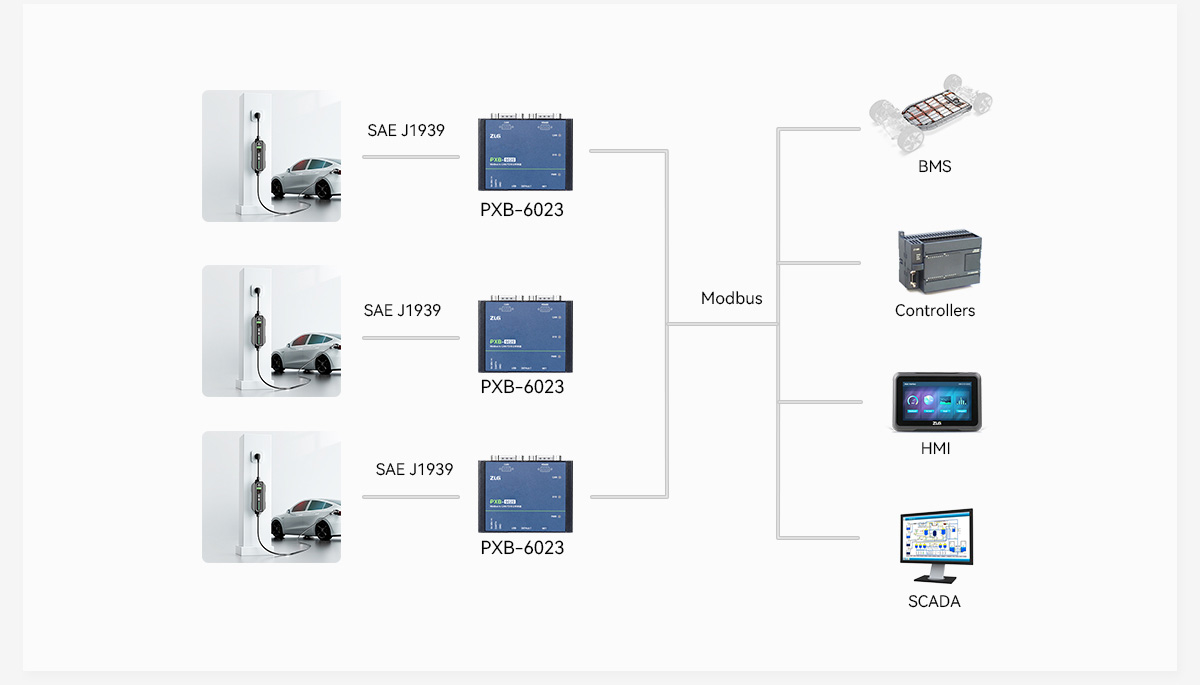

Modbus to J1939 bus protocol conversion:
Support Modbus RTU and TCP;
Support master or slave mode;
Support the timed transmission of up to 128 groups of messages;
Support the receiving of up to 128 groups of messages in the white list.
| Dimension: | 84mmx63mmx30mm |
| Shell material: | Metal |
| Mounting mode: | Hangers-mounted |
| Storage temperature: | -40~85℃ |
| Operating temperature: | -40~85℃ |
| Power supply: | 9~36V |
| Power consumption: | 12V/100mA |
| Reverse voltage protection: | Available |
| Anti-interference and radiation resistance in industrial environment: | |
| ESD: | Contact: ± 4kV; air: ±8kV |
| EFT: | Power supply: ±1kV; signal: 0.5 kV |
| Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| RF field induction: | Power supply: 3 V/m; signal: 3 V/m |
