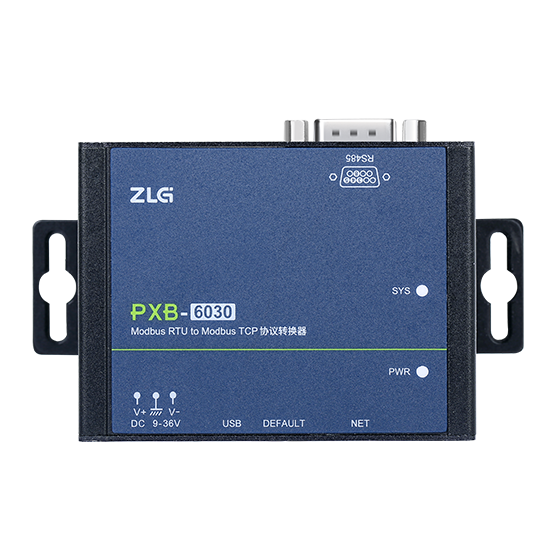

PXB-6030 is a protocol converter for Modbus RTU to Modbus TCP launched by Zhiyuan Electronics. Modbus supports RTU/ASCII and TCP protocols, and these three protocols support master and slave stations. It can easily realize the data conversion between Modbus RTU/ASCII serial device and Modbus TCP Ethernet device.
Small volume at industrial grade;
9V~36V wide voltage supply;
1-channel standard 10/100M Ethernet;
1-channel isolation RS485;

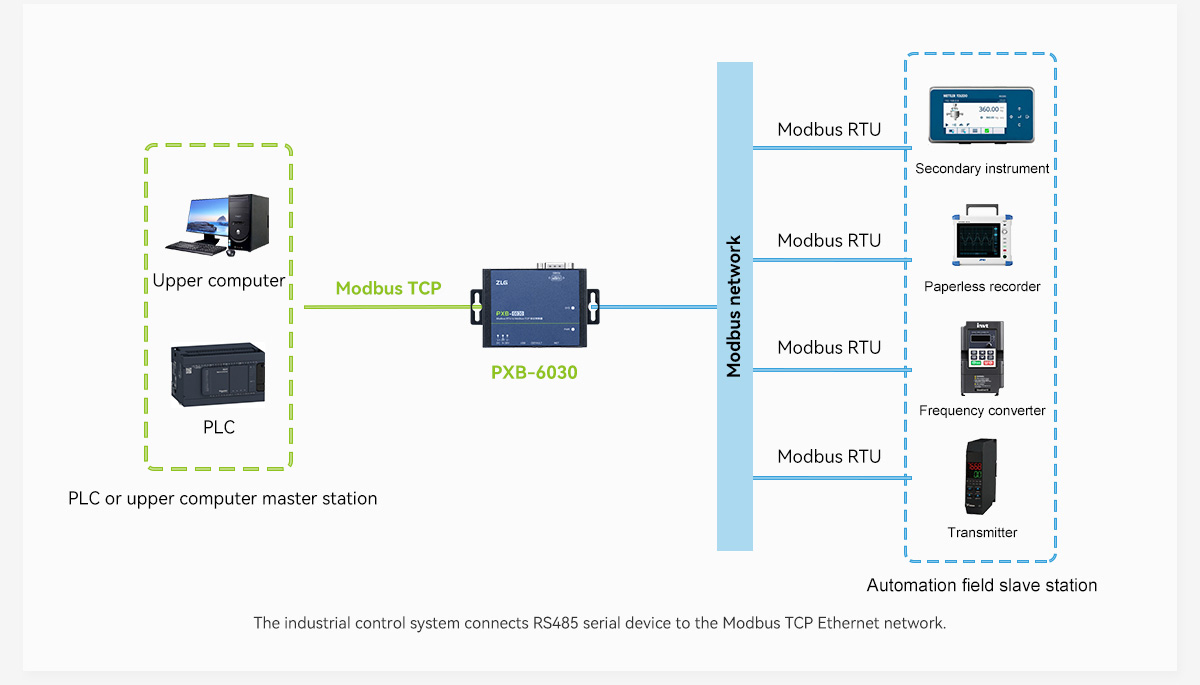

Mutual conversion between Modbus RTU/ASCII and Modbus TCP:
4 working modes:
RTU_Master ⇔ TCP_Slave
TCP_Master ⇔ RTU_Slave
ASCII_Master ⇔ TCP_Slave
TCP_Master ⇔ ASCII_Slave
Modbus TCP supports up to 8 connections;
Support up to 255 Modbus RTU/ASCII slave stations;
Support device ID mapping function;
Support setting TCP connection keep-alive time.
| Dimension: | 84mmx63mmx30mm |
| Shell material: | Metal |
| Mounting mode: | Hangers-mounted |
| Storage temperature: | -40~85℃ |
| Operating temperature: | -40~85℃ |
| Power supply: | 9~36V |
| Power consumption: | 12V/100mA |
| Reverse voltage protection: | Available |
| Anti-interference and radiation resistance in industrial environment: | |
| ESD: | Contact: ± 4kV; air: ±8kV |
| EFT: | Power supply: ±1kV; signal: 0.5 kV |
| Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| RF field induction: | Power supply: 3 V/m; signal: 3 V/m |
