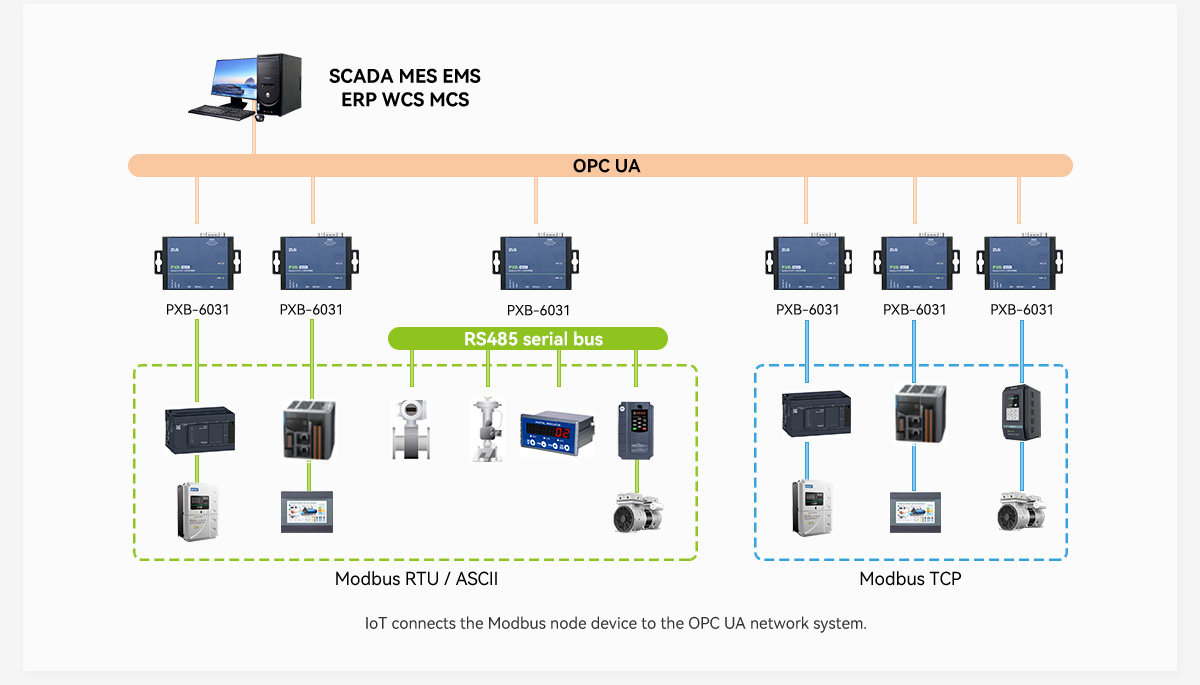

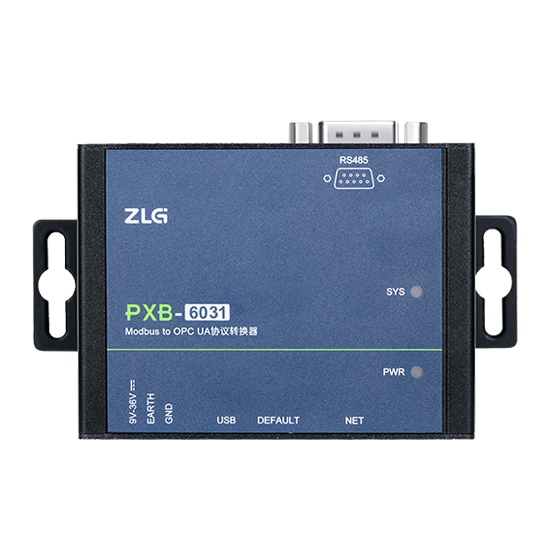

PXB-6031 is a protocol converter for Modbus to OPC UA launched by Zhiyuan Electronics. Modbus supports RTU and TCP protocols. With a flexible configuration function, PXB-6031 can easily connect the Modbus device to the OPC UA server and seamlessly convert Modbus protocol data to OPC UA data.
Small volume at industrial grade;
9V~36V wide voltage supply;
1-channel standard 10/100M Ethernet;
1-channel isolation RS485;
Protocol conversion of Modbus to OPC UA server;
Support Modbus RTU and TCP master stations;
Support object and variable editing of OPC UA;
Support up to 32 OPC UA objects;
Support changing OPC UA network parameters;
Support different data formats of OPC UA.
| Dimension: | 84mmx63mmx30mm |
| Shell material: | Metal |
| Mounting mode: | Hangers-mounted |
| Storage temperature: | -40~85℃ |
| Operating temperature: | -40~85℃ |
| Power supply: | 9~36V |
| Power consumption: | 12V/100mA |
| Reverse voltage protection: | Available |
| Anti-interference and radiation resistance in industrial environment: | |
| ESD: | Contact: ± 4kV; air: ±8kV |
| EFT: | Power supply: ±1kV; signal: 0.5 kV |
| Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| RF field induction: | Power supply: 3 V/m; signal: 3 V/m |
