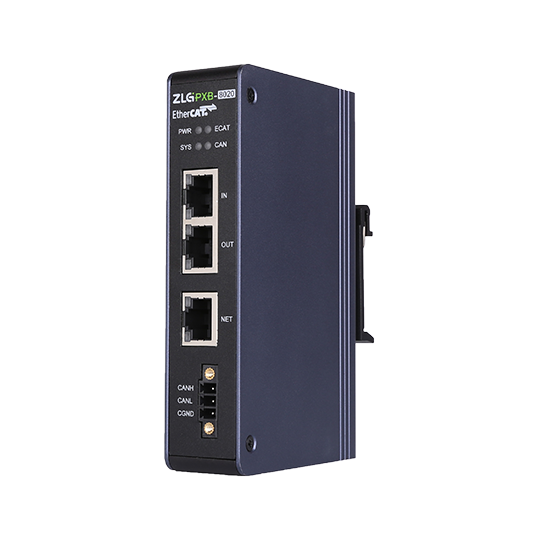

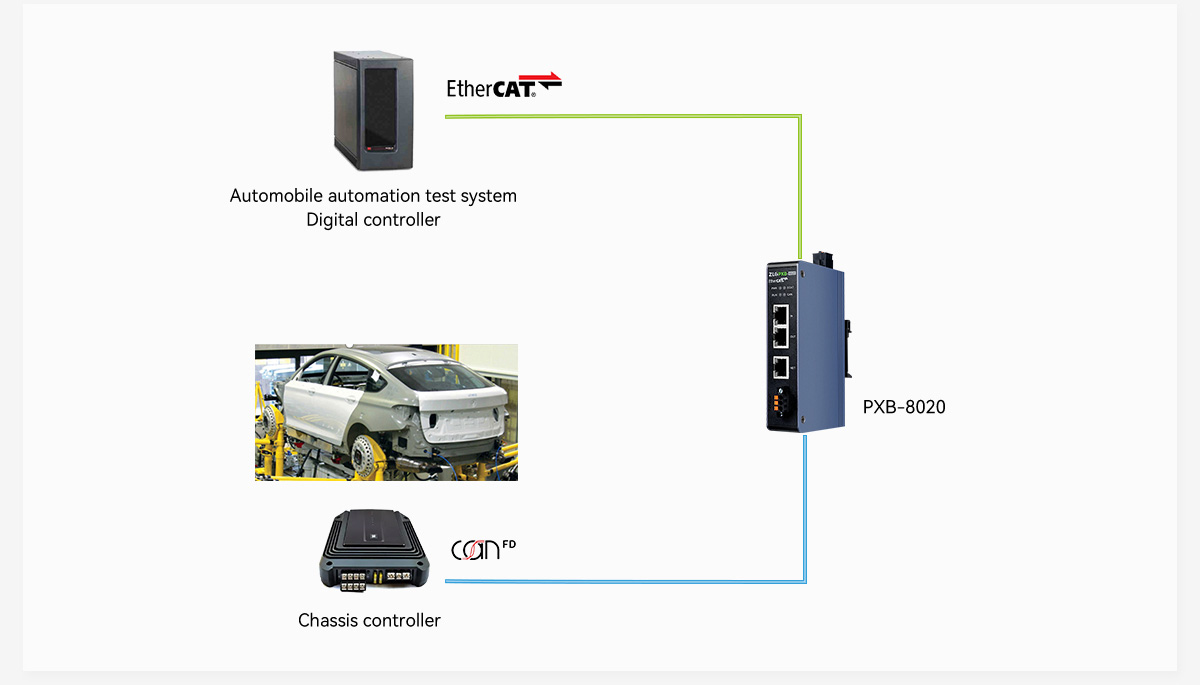

PXB-8020 is an industrial fieldbus protocol converter for EtherCAT to CAN/CAN FD launched by Zhiyuan Electronics. This device provides a simple and easy-to-use configuration tool for upper computer. With connection and configuration, it can easily connect the CAN/CANFD data to the EtherCAT control system.
Support setting parameters such as CAN type, CAN FD standard and CAN FD acceleration;
CAN messaging supports multiple trigger modes such as cycle, state change and single sending;
CAN messaging supports multiple data sources;
Support sending and receiving messages in the form of full frame and byte;
Support standard frames, extended frames and remote frames;
With the user-defined sending mode, it can accurately customize and send CAN or CAN FD messages.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| CAN isolation: | Digital isolation, power isolation |
| CAN FD Baud rate: | 40k~5Mbps, CAN FD acceleration |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
