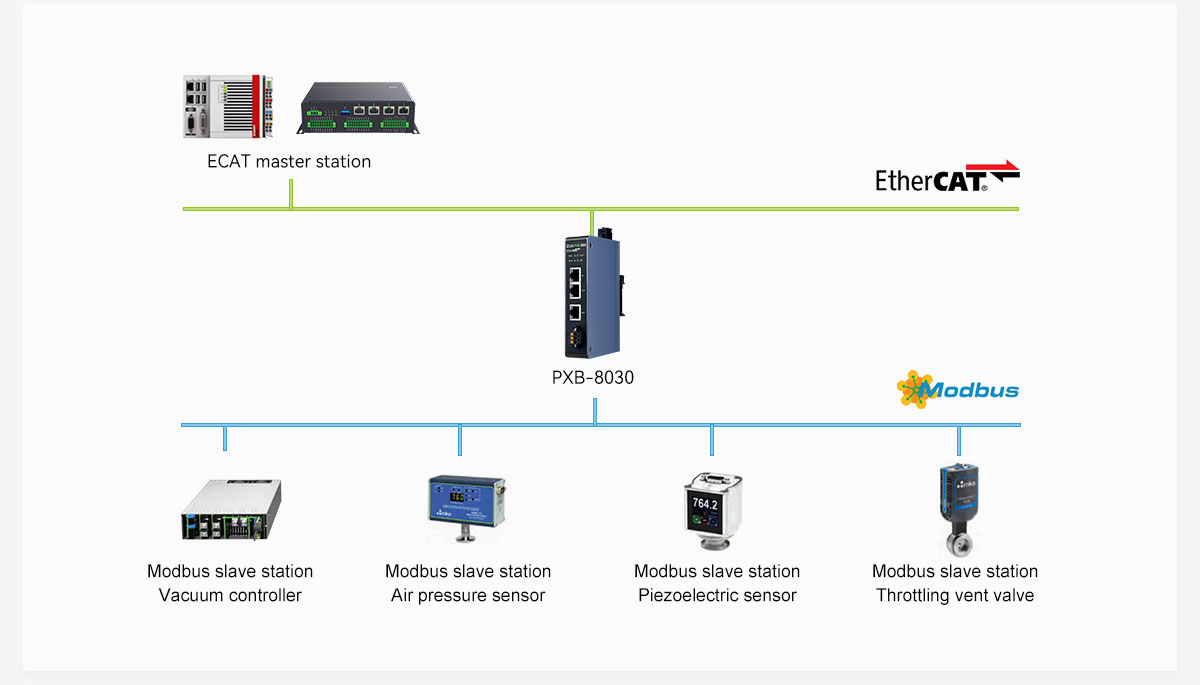

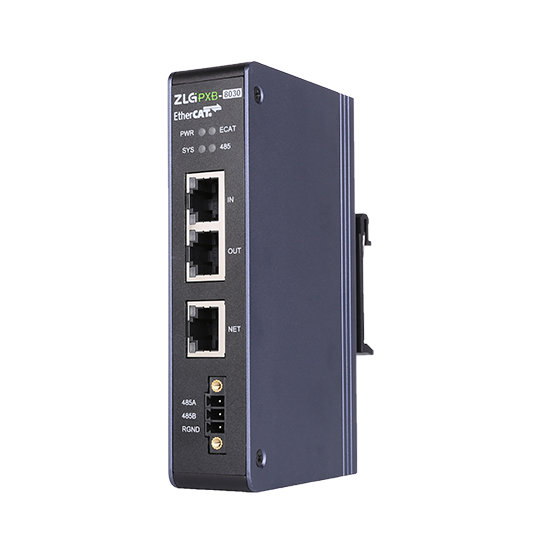

PXB-8030 is a protocol converter for Modbus to EtherCAT launched by Zhiyuan Electronics. This device provides a configuration tool for upper computer. With connection and configuration, it can easily connect the Modbus device to the EtherCAT master control system, or support Modbus and EtherCAT networks to transmit data seamlessly between the PLC control systems.
IP address, slave ID, destination IP and port can be set;
Support 4 working modes: EtherCAT slave station to Modbus TCP/RTU master/slave station;
When Modbus is set as a master station, it can support up to 32 Modbus slave devices;
Support 01H, 02H, 03H, 04H, 05H, 06H, 15H and 16H instructions.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| RS485 isolation: | Digital isolation, power isolation |
| RS485 Baud rate: | Up to 2Mbps |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
