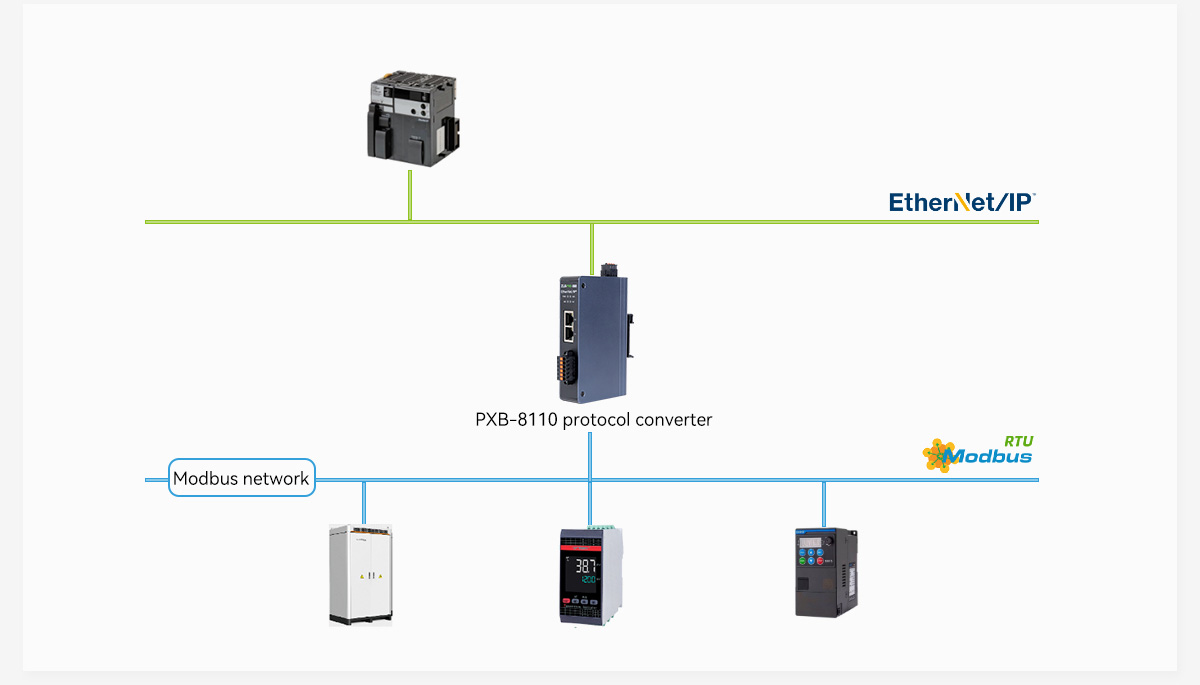

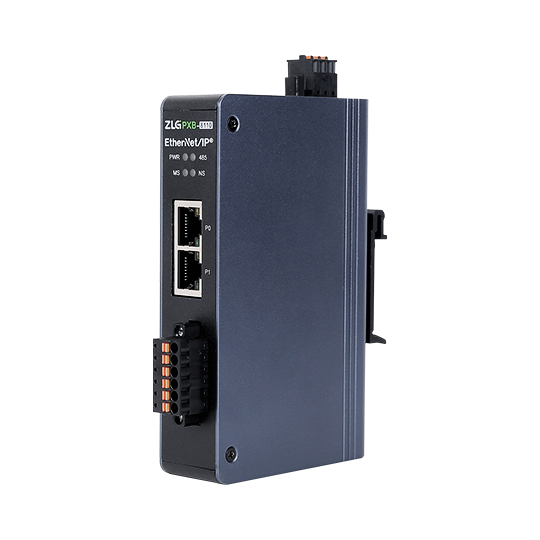

PXB-8110 is an industrial fieldbus protocol converter for Modbus RTU to EtherNet/IP launched by Zhiyuan Electronics. This product provides a configuration tool for upper computer. With connection and configuration, it can easily connect the Modbus device to the EtherNet/IP master control system, or support Modbus RTU and EtherNet/IP networks to transmit data seamlessly between the PLC control systems.
Support standard Ethernet/IP protocol;
Support up to 500 bytes input and 500 bytes output;
Support DLR device-level ring network;
Support polling, state change and application trigger;
Support 4 working modes: EtherNet/IP slave station to Modbus RTU master/slave station;
When Modbus is set as a master station, it can support up to 32 Modbus slave devices;
Support 01H, 02H, 03H, 04H, 05H, 06H, 15H and 16H instructions.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| RS485 isolation: | Digital isolation, power isolation |
| RS485 Baud rate: | Up to 2Mbps |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
