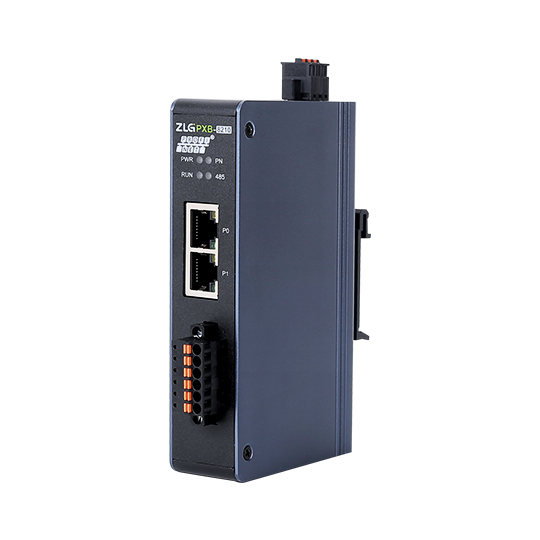

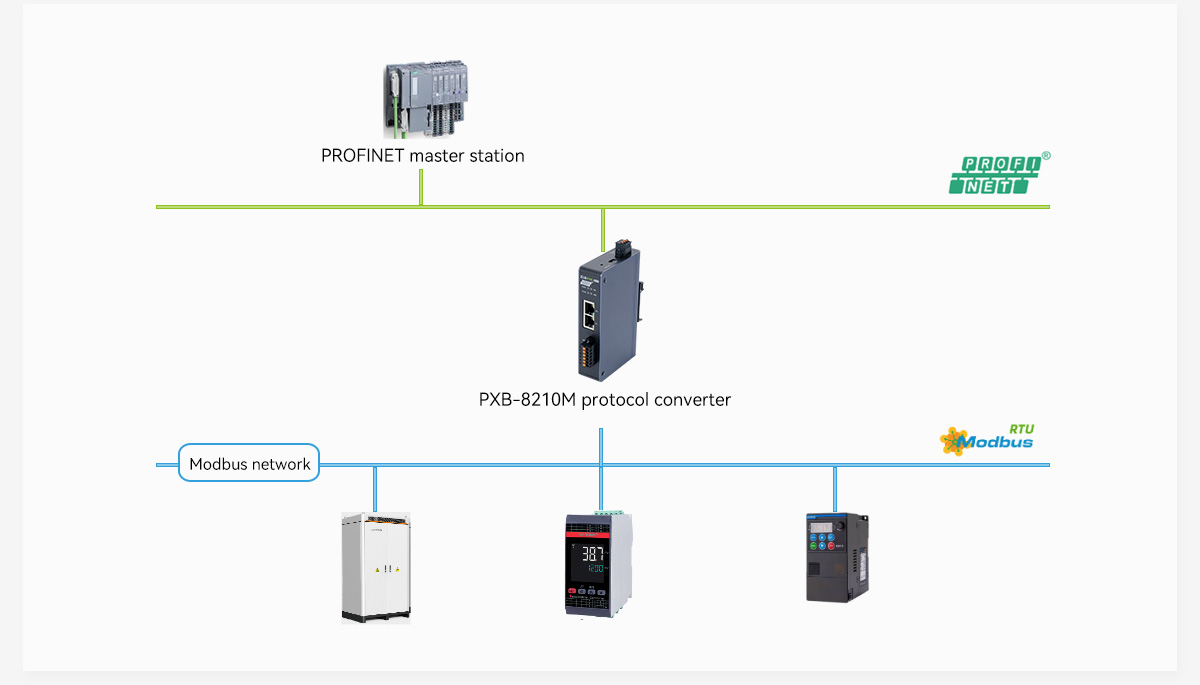

PXB-8210 is an industrial fieldbus protocol converter for Modbus RTU to PROFINET launched by Zhiyuan Electronics. This device provides a configuration tool for upper computer. With connection and configuration, it can easily connect the Modbus device to the PROFINET master control system, or support Modbus RTU and PROFINET networks to transmit data seamlessly between the PLC control systems.
Comply with PROFINET V2.4;
Comply with V2.43 GSDML;
Support RT data communication;
Support up to 1440 bytes input and 1440 bytes output;
Integrated dual-port switch;
Provide 16 card slots;
Support 4 working modes: EtherNet/IP slave station to Modbus RTU master/slave station;
When Modbus is a master station, it can support up to 32 Modbus slave station devices;
Support 01H, 02H, 03H, 04H, 05H, 06H, 15H and 16H instructions.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| CAN isolation: | Digital isolation, power isolation |
| CAN FD Baud rate: | 40k~5Mbps, CAN FD acceleration |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
