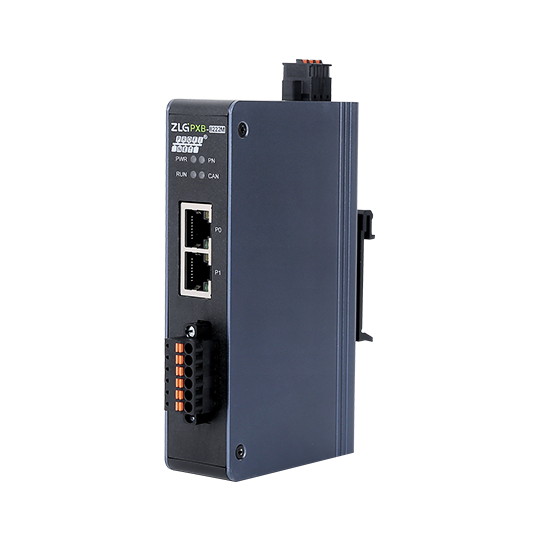

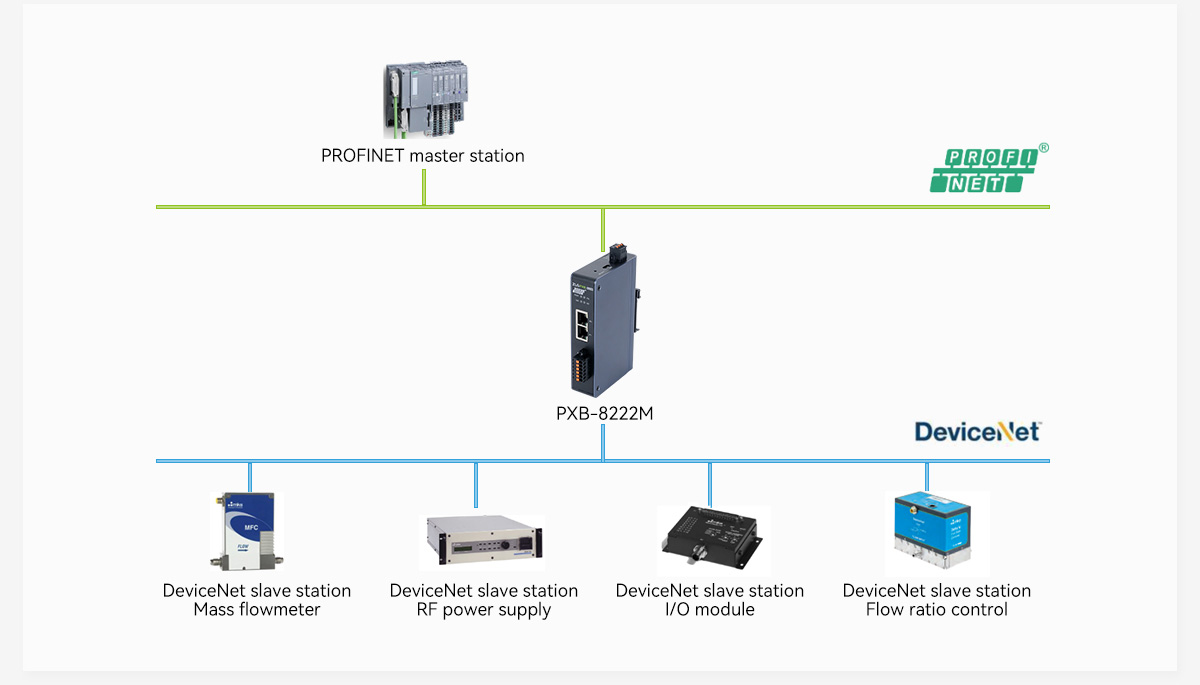

PXB-8222M is an industrial fieldbus protocol converter for PROFINET to DeviceNet launched by Zhiyuan Electronics. This device provides a simple and easy-to-use configuration tool for upper computer. With connection and configuration, it can easily connect the DeviceNet slave device to the PROFINET network.
Comply with PROFINET V2.4;
Comply with V2.43 GSDML;
Support RT data communication;
Support up to 1440 bytes input and 1440 bytes output;
Integrated dual-port switch;
Provide 16 card slots;
DeviceNet master station provides the Baud rates of 125K, 250K and 500K;
DeviceNet master station can connect up to 63 slave stations;
DeviceNet master station provides 4 IO modes: polling, bit-strobe, state change and cycle;
DeviceNet supports explicit message function.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| CAN isolation: | Digital isolation, power isolation |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
