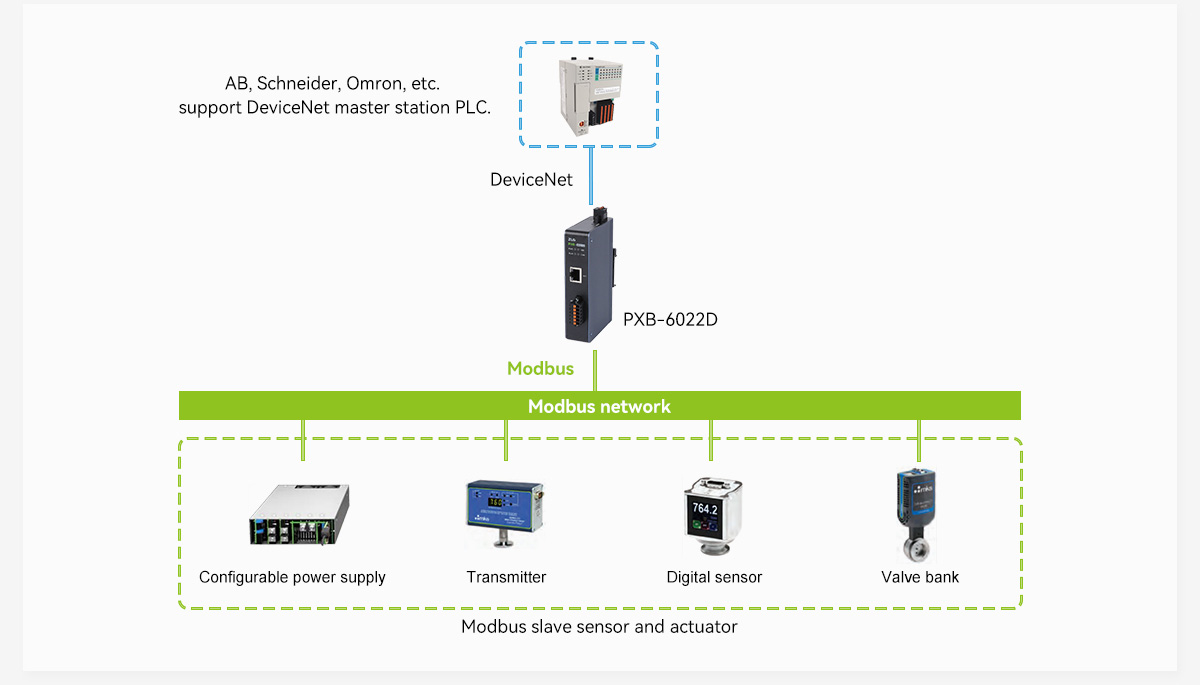

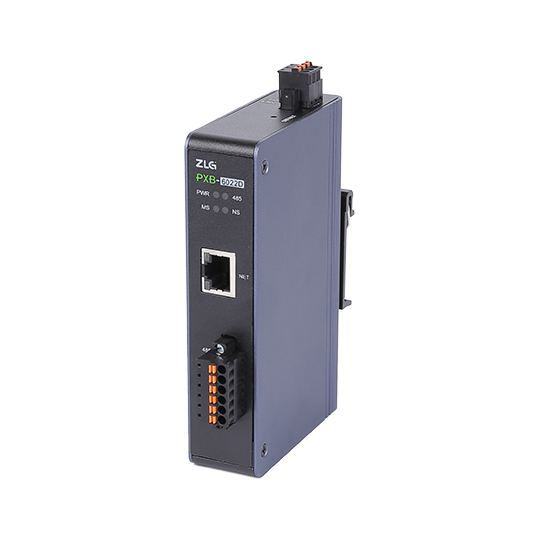

PXB-6022D is a protocol converter for Modbus to DeviceNet launched by Zhiyuan Electronics. This device is mounted with guide rail. It can connect the Modbus device to the DeviceNet master station system, or support Modbus and DeviceNet networks to transmit data seamlessly between the PLC control systems.
Support Modbus RTU and TCP master station mode;
DeviceNet provides the Baud rates of 125K, 250K and 500K;
Support DeviceNet I/O scanning;
Support the software to change the DeviceNet address;
Provide standard EDS files of DeviceNet;
15 different levels of input and output bytes are for options;
Up to 512 bytes input and 512 bytes output.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| RS485 isolation: | Digital isolation, power isolation |
| RS485 Baud rate: | Up to 2Mbps |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
