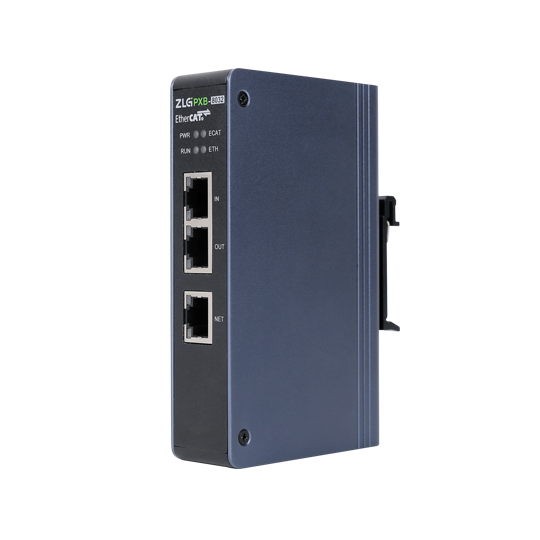

PXB-8032 is an industrial fieldbus protocol converter for TCP/IP to EtherCAT launched by Zhiyuan Electronics. This device provides a configuration tool for upper computer. With connection and configuration, it can seamlessly convert Ethernet TCP/IP data to EtherCAT data.
EtherCAT supports EoE function;
EoE supports TCP Server (1 client), TCP Client and UDP;
The converter supports TCP Server (8 clients), TCP Client and UDP;
The protocol type, IP address and port of EoE and converter can be set;
Support 4 groups of conversion settings. Each group of conversion settings supports 4 conversion messages. AWPX Tools configuration software is provided, which is simple and easy to use.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| Shell material: | Metal |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
