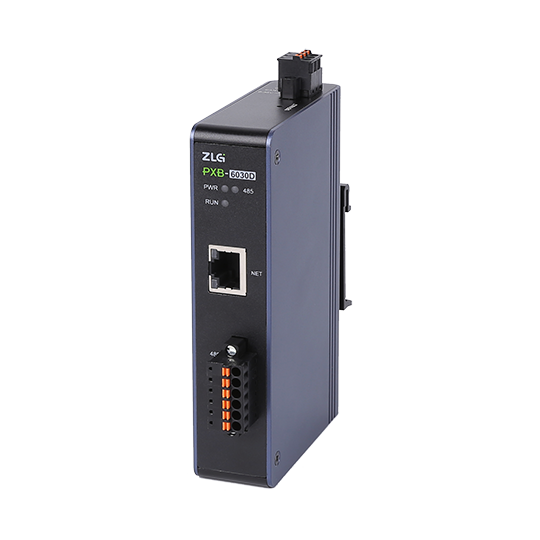

PXB-6030D is a protocol converter for Modbus RTU to Modbus TCP launched by Zhiyuan Electronics. This device is mounted with guide rail. With a flexible configuration function, it can easily realize the data conversion between Modbus RTU/ASCII serial device and Modbus TCP Ethernet device.

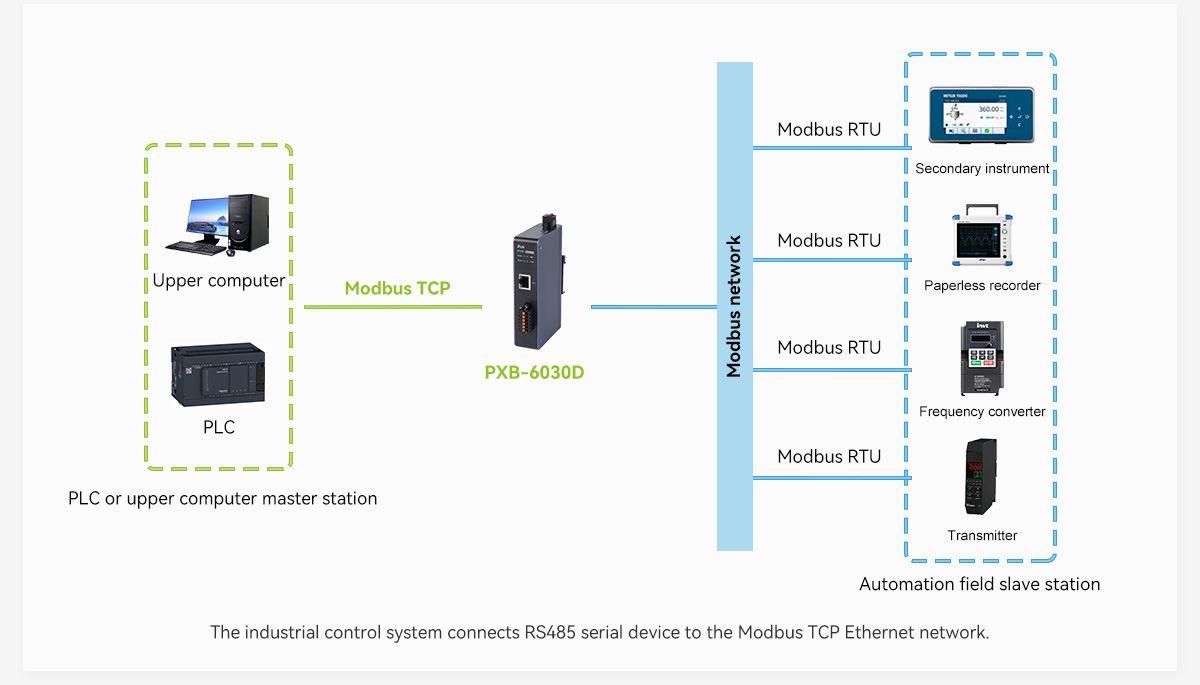

Conversion between Modbus RTU/ASCII and Modbus TCP
4 working modes:
RTU_Master ↔ TCP_Slave
TCP_Master ↔ RTU_Slave
ASCII_Master ↔ TCP_Slave
TCP_Master ↔ ASCII_Slave
Modbus TCP supports up to 8 connections;
Support up to 255 Modbus RTU/ASCII slave stations;
Support device ID mapping function;
Support setting protocol conversion timeout.
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| RS485 isolation: | Digital isolation, power isolation |
| RS485 Baud rate: | Up to 2Mbps |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
