Features
-
Support Modbus RTU and TCP master stations;
-
Support object and variable editing of OPC UA;
-
Support up to 32 OPC UA objects;
-
Support changing OPC UA network parameters;
-
Support different data formats of OPC UA.

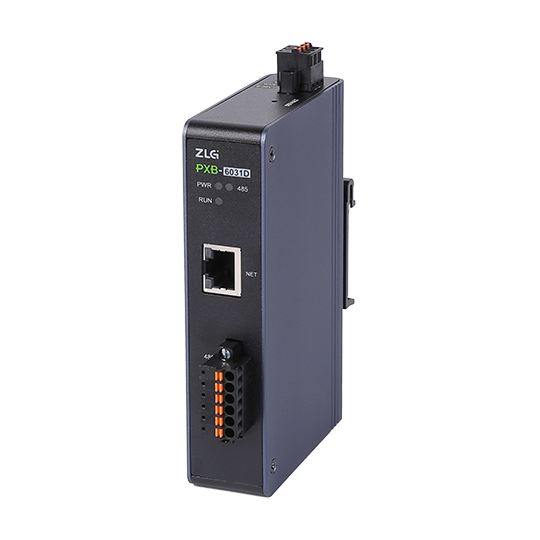

Modbus to OPC UA protocol converter
PXB-6031D
PXB-6031D is a protocol converter for Modbus to OPC UA launched by Zhiyuan Electronics. This device is mounted with guide rail. It can easily connect the Modbus device to the OPC UA server and seamlessly convert Modbus protocol data to OPC UA data.
Diagrams of typical cases
PXB-6031D (connect the Modbus device to SCADA, MES, EMS, WCS, MCS and other control management systems using OPC UA.)

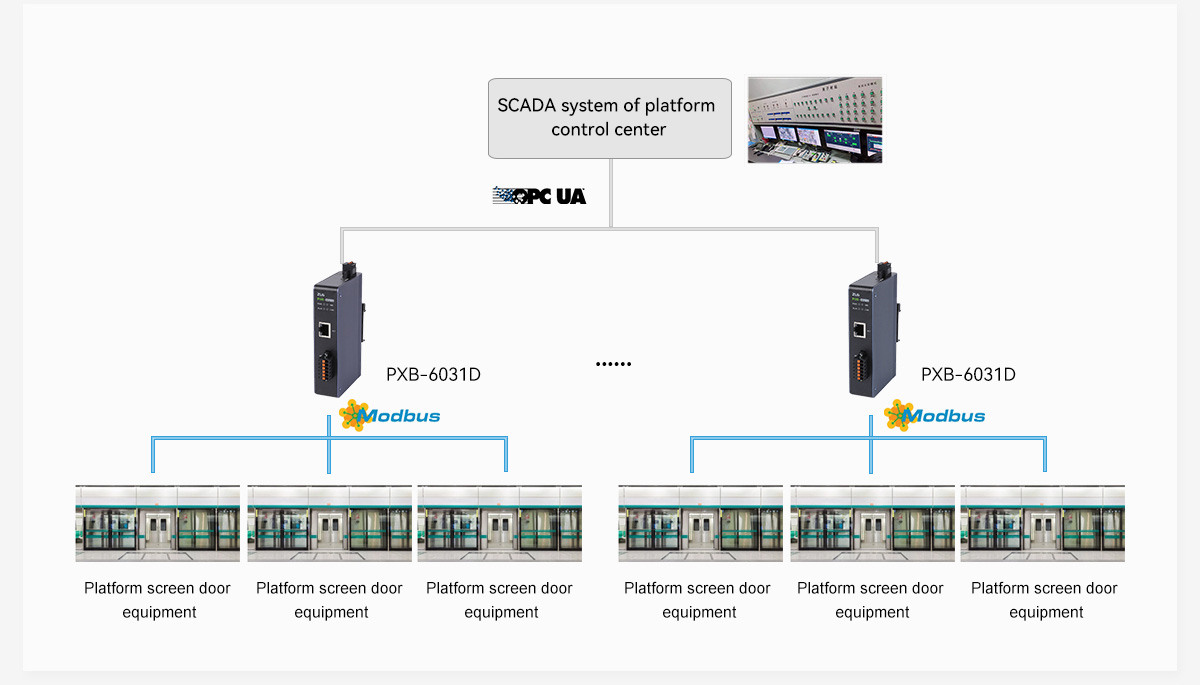

PXB-6031D metro platform connects the Modbus device to the OPC UA control system.
Parameters
| Input voltage: | 9 ~ 36VDC，150mA @ 12VDC |
| Power protection: | Anti-reverse connection protection and short circuit protection |
| Automatic restart trigger: | Built-in independent watchdog timer (WDT) |
| RS485 isolation: | Digital isolation, power isolation |
| RS485 Baud rate: | Up to 2Mbps |
| Terminal resistance: | Built-in 120Ω (the upper computer software can be used for configuration.) |
| Shell material: | Metal + plastic |
| Dimension: | 125.00mm×76.00mm×28.00mm (bare machine) |
| Mounting mode: | Standard 35mm DIN guide rail |
| Operating temperature: | -40~85℃ (-40~185°F) |
| Storage temperature: | (Including package) -40~85℃ (-40 ~185°F) |
| Relative humidity: | 5 ~ 95% (non-condensing) |
| EMI : | EN55032，CLASS A |
| EMC IEC/EN 61000-4-2 ESD: | Contact: 4.0 kV; air: 8.0 kV |
| IEC/EN 61000-4-4 EFT: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-5 Surge: | Power supply: 1.0 kV; signal: 0.5 kV |
| IEC/EN 61000-4-6 CS (150 kHz~80 MHz): | Power supply: 3 V/m; signal: 3 V/m |
