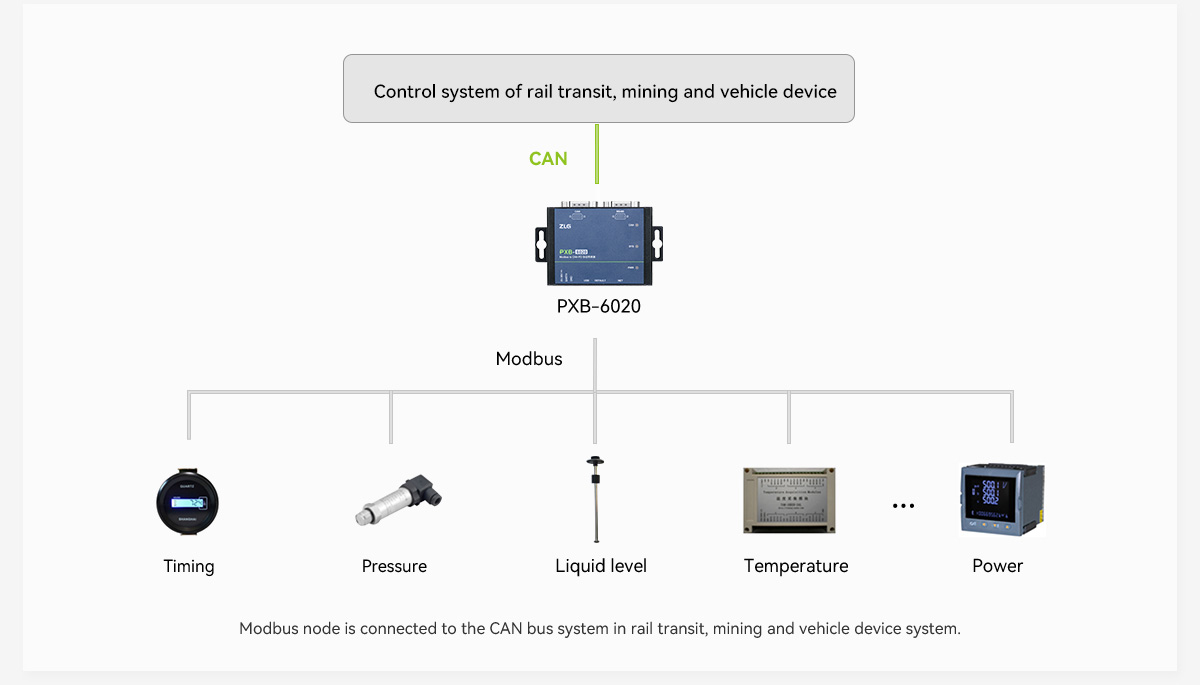

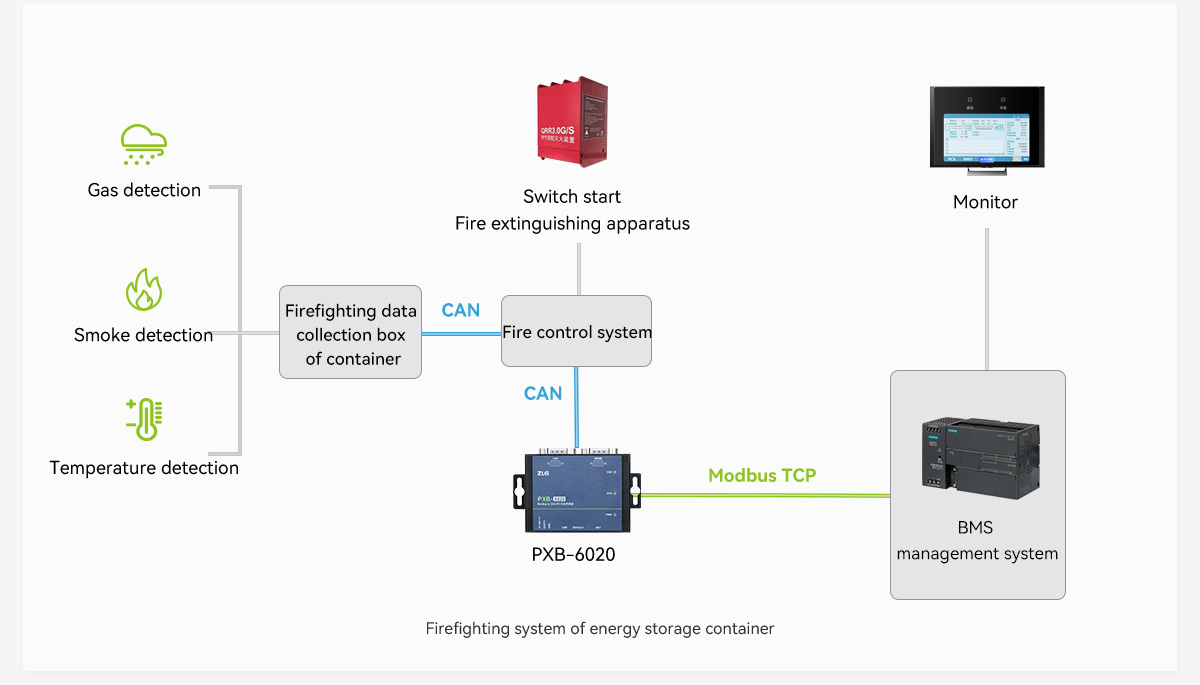

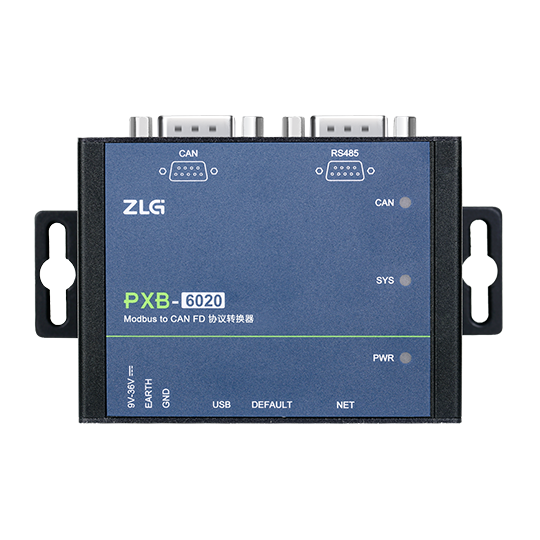

PXB-6020 is a protocol converter for Modbus to CAN FD launched by Zhiyuan Electronics. Modbus supports RTU and TCP protocols, and it can be configured in Master or Slave mode. It can connect the CAN device to the Modbus master station system or connect the Modbus device to the CAN bus system.
Small volume at industrial grade;
9V~36V wide voltage supply;
Multiple interfaces:
1-channel standard 10/100M Ethernet;
1-channel isolation CAN FD;
1-channel isolation RS485;
Modbus to CAN FD bus protocol conversion：
Support Modbus RTU and TCP;
Support master or slave mode;
Support the timed transmission of up to 128 groups of messages;
Support the receiving of up to 128 groups of messages in the white list;
Support user-defined transmissions.
| Dimension： | 84mmx63mmx30mm |
| Shell material： | Metal |
| Mounting mode： | Hangers-mounted |
| Power protection： | Anti-reverse connection protection and short circuit protection |
| Auto restart trigger： | Built-in independent watchdog timer (WDT) |
| RS485 isolation： | Digital isolation, power isolation |
| CAN isolation： | Digital isolation, power isolation |
| RS485 Baud rate： | Up to 2Mbps |
| CAN FD Baud rate： | 40k~5Mbps, CAN FD acceleration |
| Storage temperature： | -40~85℃ |
| Operating temperature： | -40~85℃ |
| Power supply： | 9~36V |
| Power consumption： | 12V/100mA |
| Reverse voltage protection： | Available |
| Anti-interference and radiation resistance in industrial environment： | |
| ESD： | Contact: ± 4kV; air: ±8kV |
| EFT： | Power supply: ±1kV; signal: 0.5 kV |
| Surge： | Power supply: 1.0 kV; signal: 0.5 kV |
| RF field induction： | Power supply: 3 V/m; signal: 3 V/m |
