C series remote I/O module
C series remote I/O module
Multi-protocol for device interoperability
Supports PROFINET, EtherNet/IP, Modbus and multiple protocols, compatible with mainstream vendors and allowing seamless access to diverse standard industrial networks.

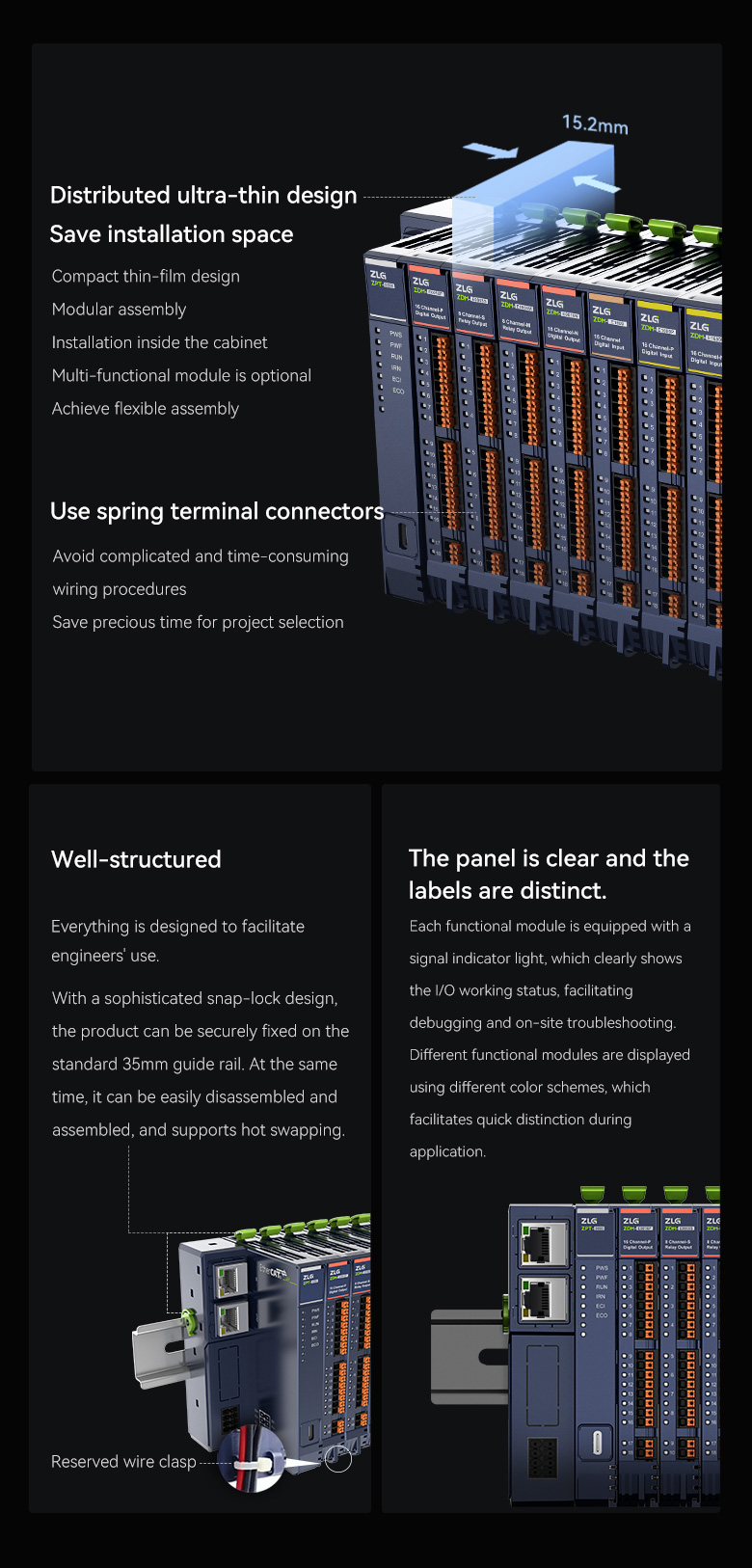

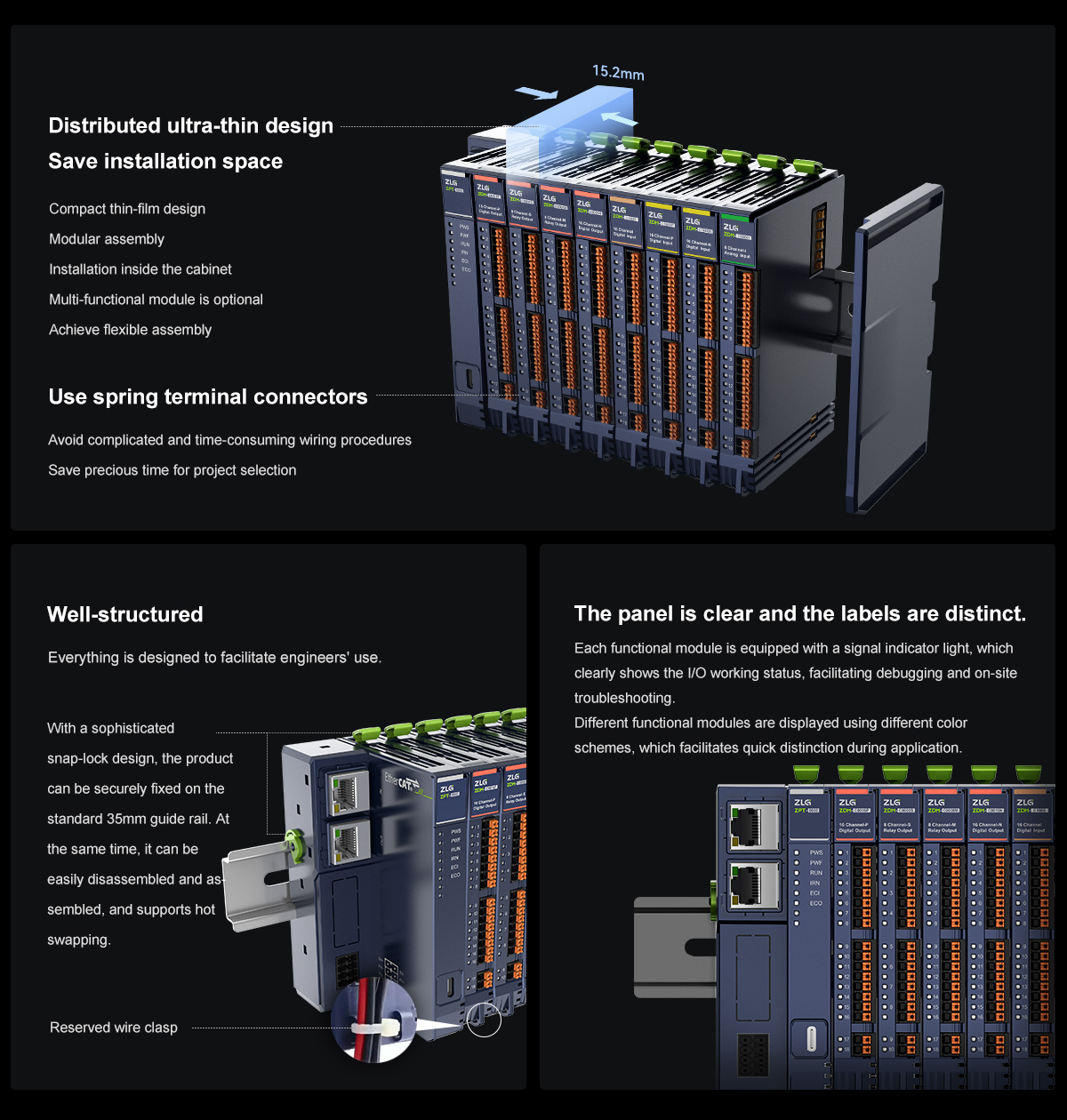

A wide variety of module types can be flexibly expanded.
Product details
Easy configuration and testing
When paired with the upper computer software AWIO Tools, it enables easy configuration of the I/O module and allows for simple and rapid completion of product testing.
Industrial-grade quality, stable communication

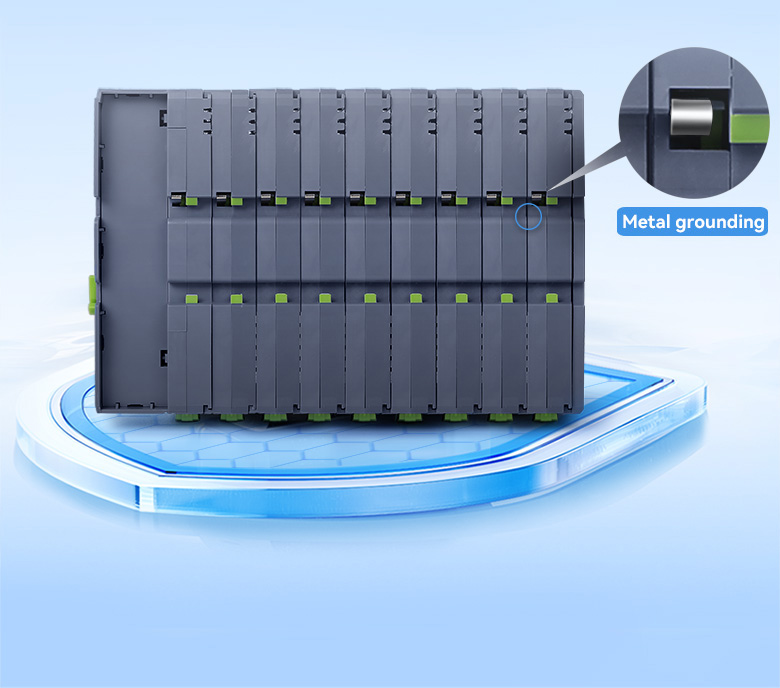

Completely independently designed, with strict checks at each stage from research and development to production. It is stable and reliable, with metal grounding at the bottom and strong anti-interference capability.
Parameters
| Module Function | Model | Specification |
|---|---|---|

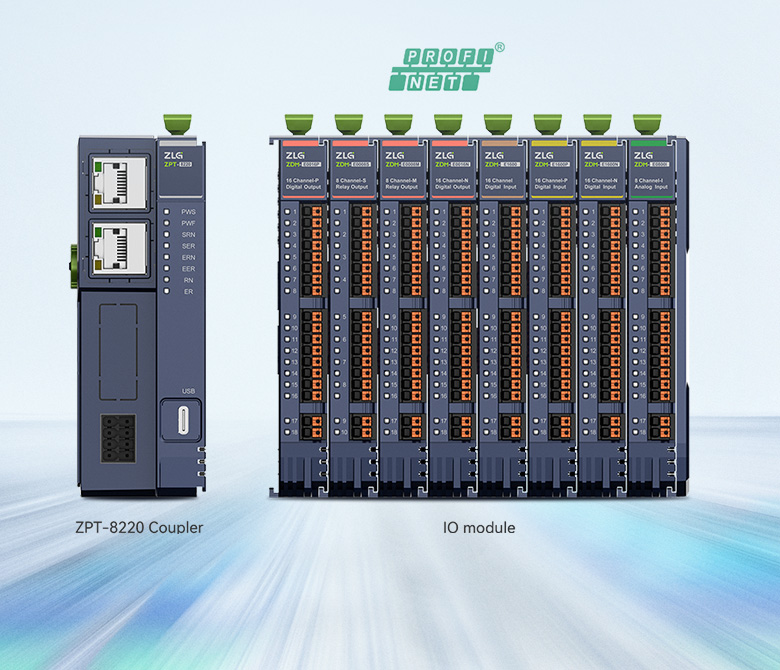

| Coupler | ZPT-8220 | PROFINET Coupler |
| ZPT-8120 | EtherNet/IP Coupler | |
| ZPT-8020 | EtherCAT Coupler | |
| ZPT-6020R | Modbus RTU Coupler | |
| ZPT-6020T | Modbus TCP Coupler | |
| Digital input module | ZDM-C1600N | 16-channel digital input, NPN type, plug-in terminal |
| ZDM-C1600P | 16-channel digital input, PNP type, plug-in terminal | |
| ZDM-C1600 | 16-channel digital input, PNP/NPN compatible, plug-in terminal | |
| Digital output module | ZDM-C0016N | 16-channel digital output, NPN type, 0.5A, plug-in terminal |
| ZDM-C0016P | 16-channel digital output, PNP type, 0.5A, plug-in terminal | |
| Digital Configurable Module | ZDM-C1616NC | 16-channel Configurable I/O, NPN type, plug-in terminal |
| ZDM-C1616PC | 16-channel Configurable I/O, PNP type, plug-in terminal | |
| Relay Output | ZDM-C0008M | 8-channel mechanical relay output, 2A, relay isolation, plug-in terminal |
| ZDM-C0008S | 8-channel solid state relay output, 1A, relay isolation, plug-in terminal | |
Analog Input Module | ZDM-C0800V | 8-channel 16-bit Analog Voltage Input, ±10V, ±0.1% accuracy |
| ZDM-C0800I | 8-channel 14-Bit Analog Current Input, 0～20mA, ±0.1% accuracy, Range Selectable | |
Analog output module | ZDM-C0008V | 8-channel 16-Bit Analog Voltage Output, ±10V, ±0.1% accuracy |
| ZDM-C0008I | 8-channel16-Bit Analog Current Output, 0～20mA, ±0.1% accuracy | |
| Temperature collection module | ZDM-C0400P3 | 4-channel 24-bit RTD temperature signal acquisition, 3-wire system, PT100/PT1000, accuracy ＜ ±0.25℃ |
| ZDM-C0800TC | 8-channel 16-bit thermocouple temperature signal acquisition, K-type/T-type, accuracy < ±2℃ | |
| Functional module | ZDM-CTM | Terminal module |

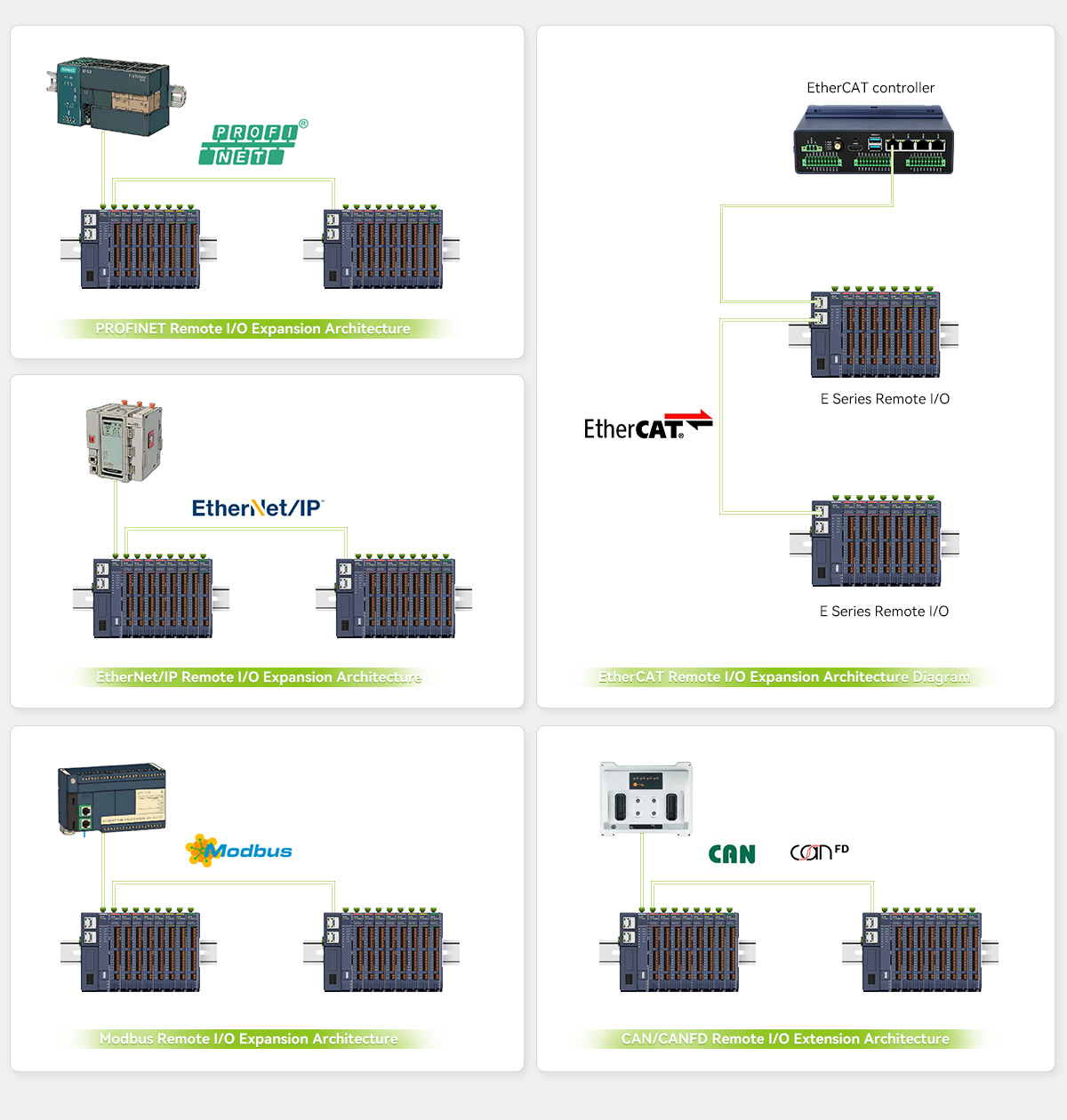

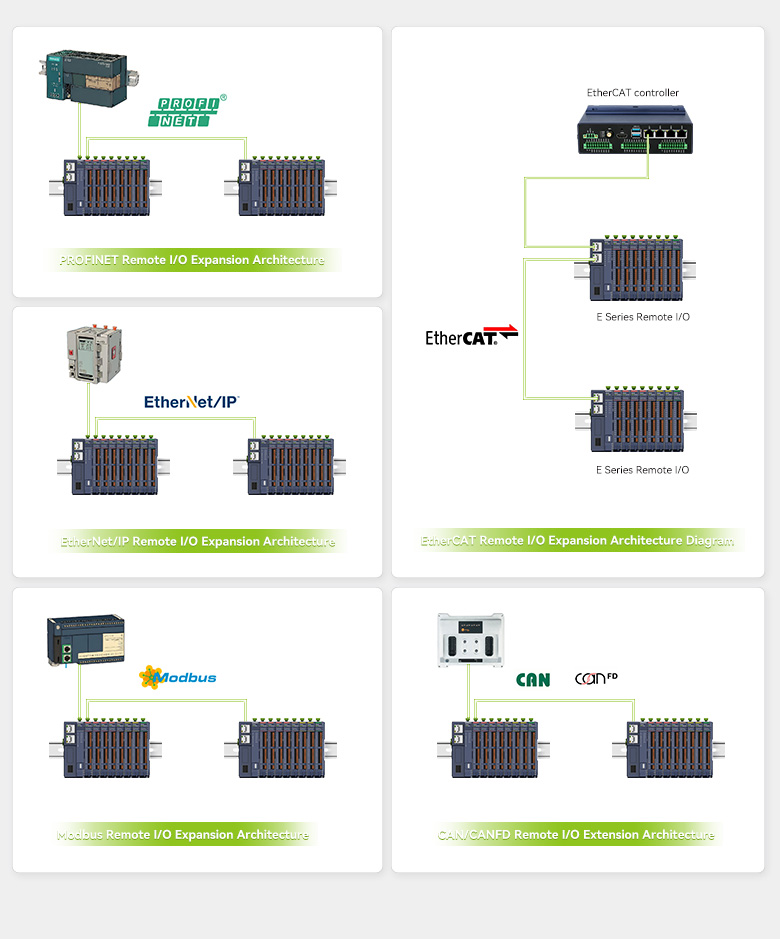

System architecture
Application industries
