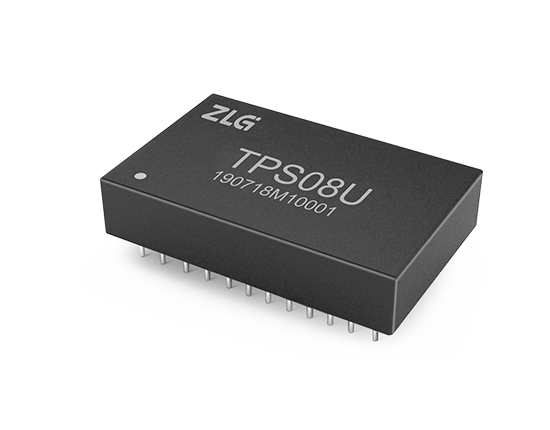

TPS08U high-precision analog acquisition module is a standard industrial data collection module, which can simultaneously collect voltage or current signals. It is equipped with current detection resistor, and its reading accuracy is 0.1%FS in full load range. It can realize high-precision voltage and current acquisition.

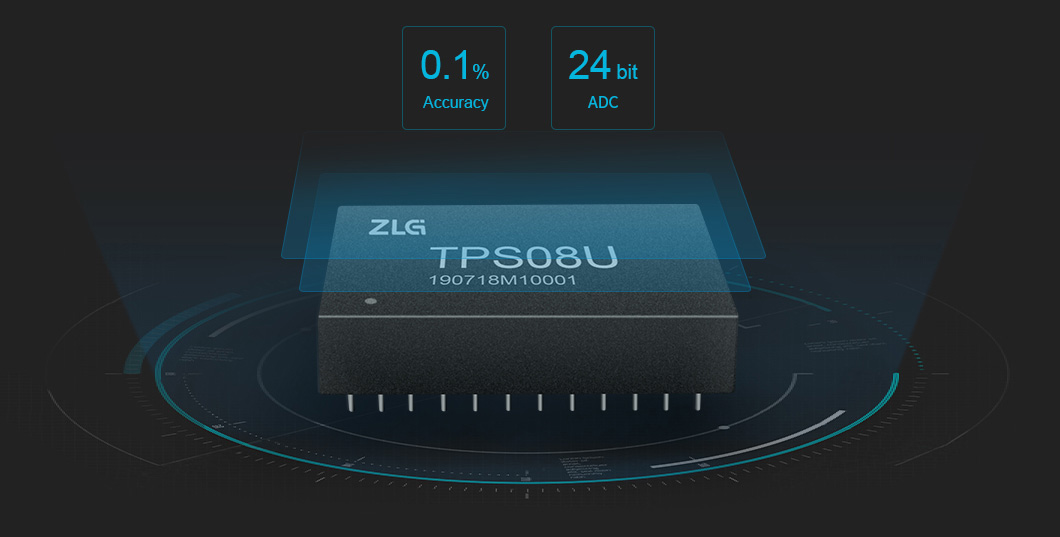

Adopting 24-bit ADC, the module has high resolution ratio, low-temperature drift current sampling resistor, integrated power supply and communication electrical isolation circuit, and features strong anti-interference capability.

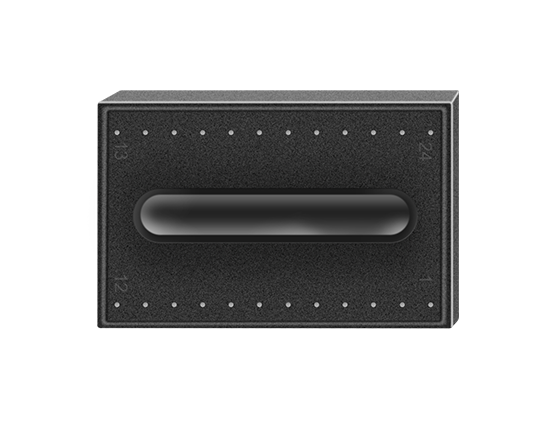

Product Parameters
| Product model | Operating voltage(V) | Communication type | Number of channels | Rate(SPS) | Voltage range(V) | Current range(mA) | Accuracy(%FS) | Isolation voltage(VDC) | Operating temperature(℃) | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|
| TPS08U | 3.3 | SPI | 8 | 12.5 | 0~5 | 0~20 | 0.1 | 2500 | -40~+85 | DIP24 |
High measurement accuracy, meeting strict measurement requirements
TPS08U adopts low-temperature drift resistor and zero-drift operational amplifier, and its reading accuracy within the range is 0.1%. It also adopts 24-bit ADC analog-to-digital conversion. Therefore, the device can capture subtle signal changes and meet the requirements of high-precision industrial measurement. It can provide users with a highly reliable temperature measurement solution.
8-channel signal acquisition, flexible application

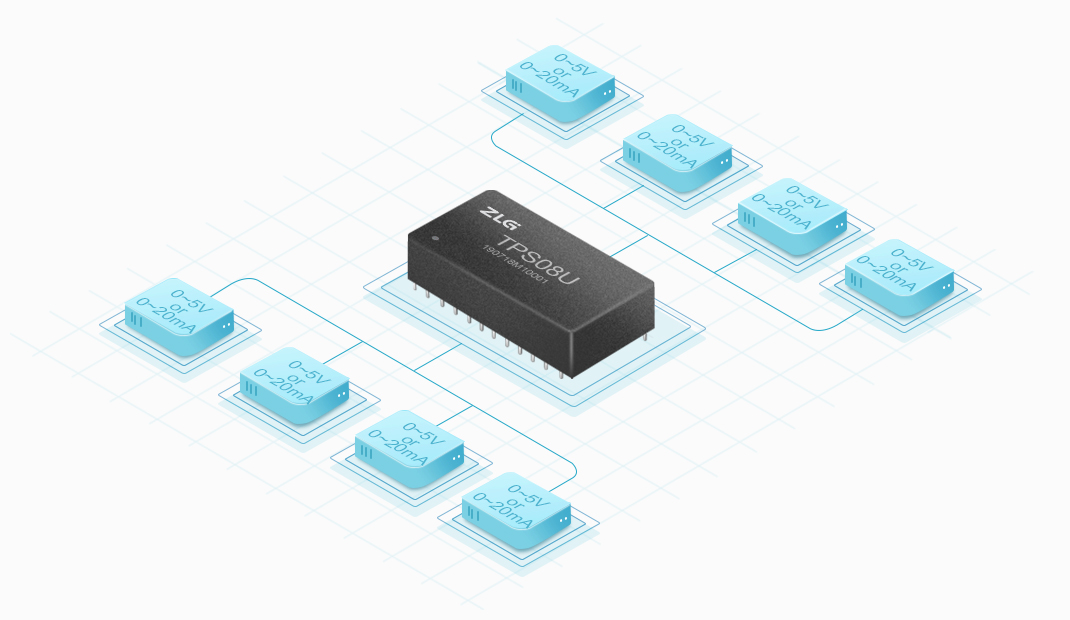

TPS08U isolated analog signal acquisition module supports 8-channel analog signal acquisition, which meets the multi-point signal acquisition requirements of users in various complex environments.

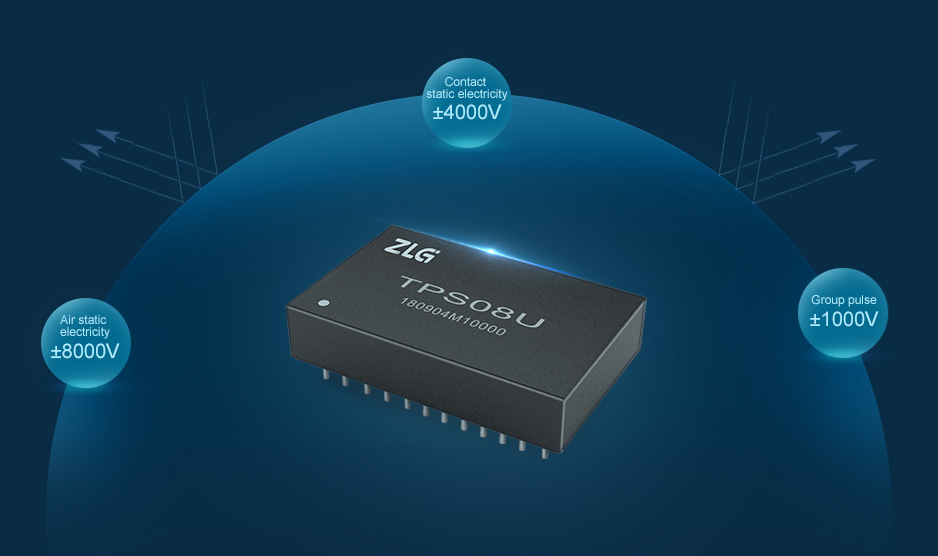

Strong anti-interference capability, providing all-weather protection for data collection
TPS08U integrates power supply and communication isolation circuit, and optimizes the layout of circuit layout. It can be applied in harsh industrial sites to provide users with reliable signal acquisition solutions.
Simple and easy to use, farewell to complicated acquisition circuit design

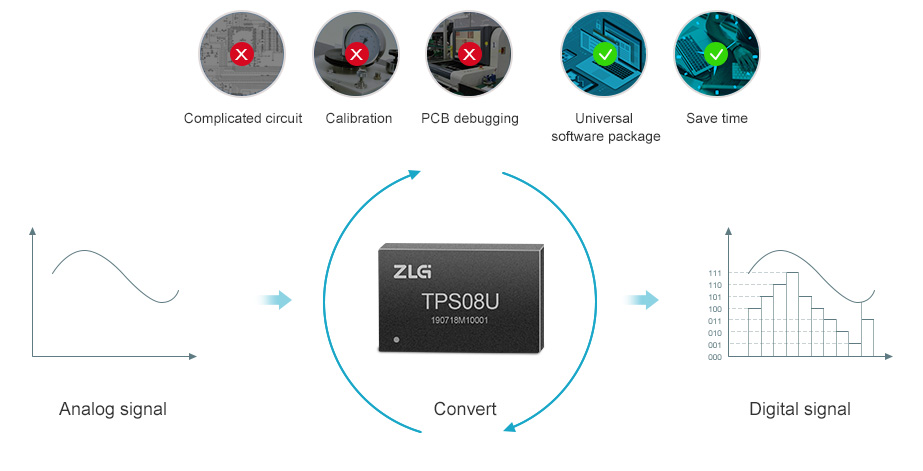

TPS08U is an acquisition module that converts analog signals to digital signals (SPI), providing a universal software package that can be reused across platforms. It helps users save the learning time of module instructions, avoid complicated circuit design, calibration and PCB debugging, and shorten the project development cycle.
Stable and reliable, providing unlimited possibilities for applications
After nearly 20 years of technology accumulation, Zhiyuan Electronics has realized technical innovation and provided users with a reliable and convenient high-precision analog signal acquisition solution. It can be widely applied in industrial control, sensor signal detection, mechanical control, connecting instruments, transmission equipment, remote field communication, etc.
Diverse product data

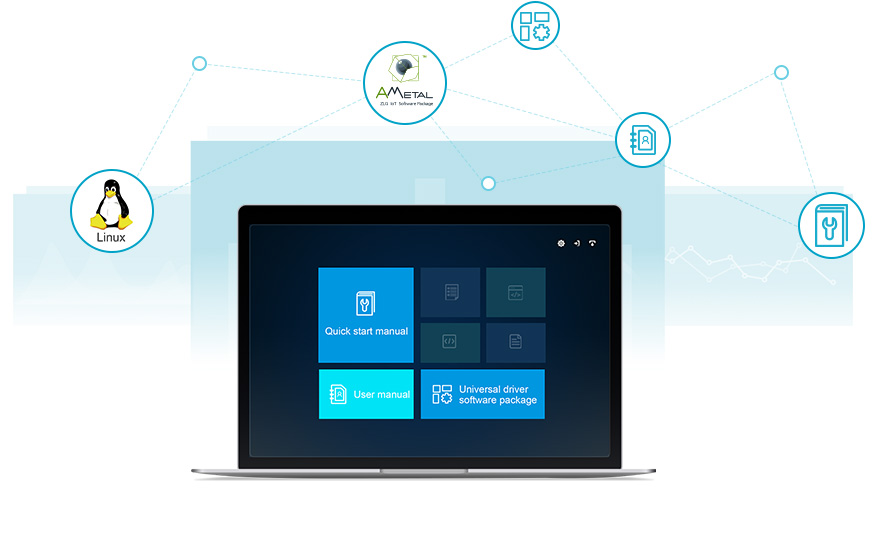

Provide user manual, quick start manual, universal driver software package (including drivers such as MCU, Linux and Ametal), etc., and help developers complete product design quickly.
