ZM24 Series High-Performance Master-Slave Integrated Bluetooth 6.0 Module

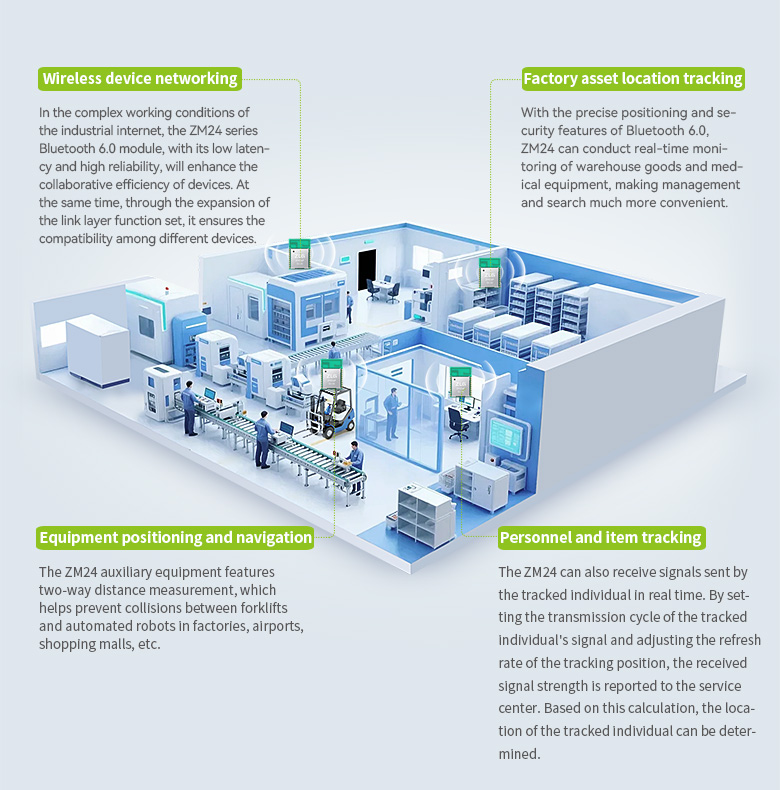

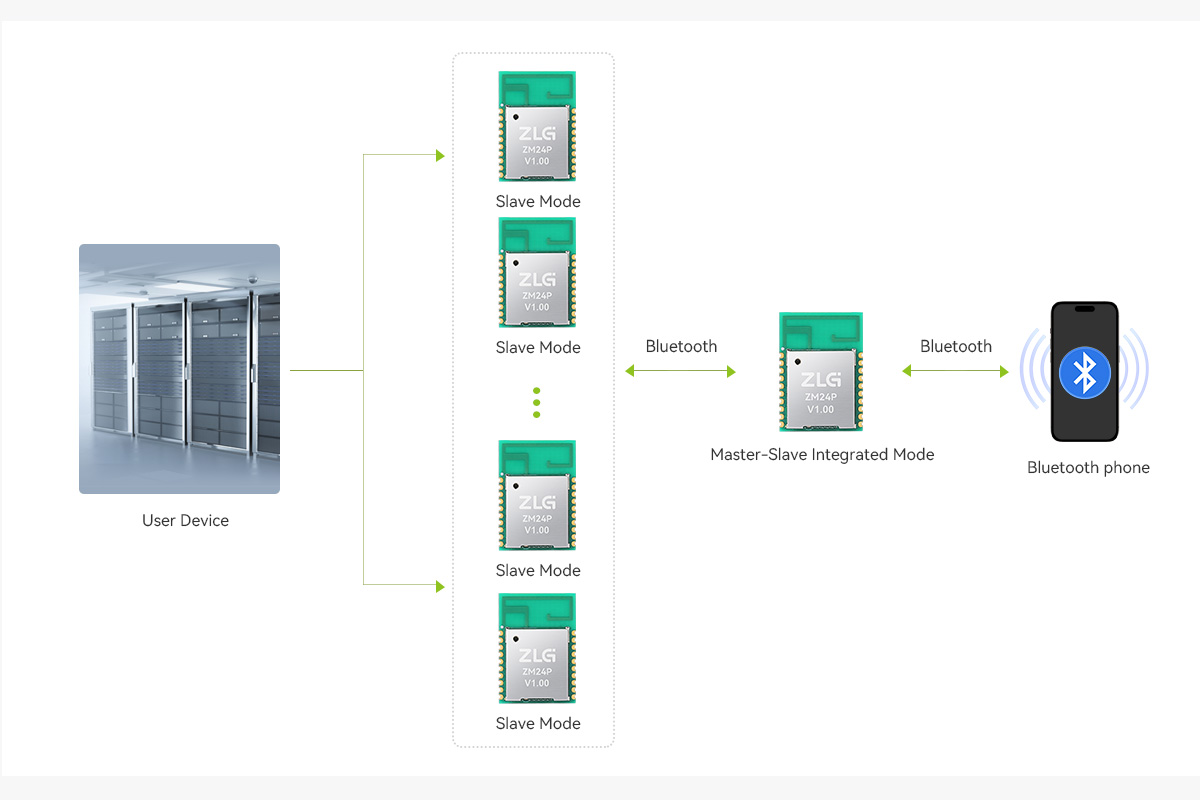

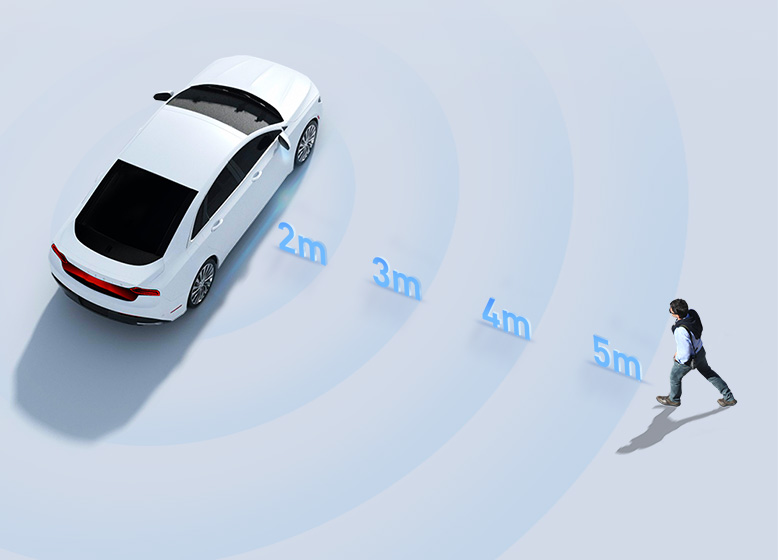

The ZM24 series is a high-performance BLE 6.0 module with master-slave integration developed by Zhiyuan Electronics. Adopting the latest channel sounding technology, it supports centimeter-level high-precision Bluetooth positioning, master-slave integrated operation, Bluetooth transparent data transmission, and OTA upgrade. Featuring industrial-grade reliability, the module ensures stable operation even in harsh environments. It is widely used in automotive digital key, underground coal mine positioning, equipment asset tracking, and smart terminal contactless interaction applications.

Long-Range Bluetooth Communication

The ZM24 module supports a maximum transmit power of 10 dBm. In 1M PHY mode, the receiver sensitivity can reach -97 dBm. Paired with the high-performance PCB antenna developed by Zhiyuan, it easily enables long-range Bluetooth communication.

Ultra-Low Power, Long Battery Life

The ZM24 Bluetooth module supports three operating modes: full-speed, Low-Power 1 and Low-Power 2, delivering excellent low-power performance. Current consumption is 2.6 mA in normal mode, 54 μA in low-power advertising mode, and 259 nA in deep sleep mode.

Secure High-Speed Data Transmission

The ZM24 series high-performance Bluetooth 6.0 module integrates five core functions including remote OTA, remote AT configuration, and BLE auto reconnection. Its superior performance enables secure, high-speed data transmission for a wide range of applications.

Industrial-grade quality
