CAN Isolation Gateway Bridge Switch Series
The CAN isolation bridge switch series is equipped with 2 or 4 electrical isolated CAN bus interfaces. It can achieve the relay function in the CAN-bus network, and save to forward data among the CAN networks with different speed. Main applications include:
(1)Increase nodes and lengthen communication distance.
(2) Realize the inter-connection of various CAN networks with different Baud rate.
(3)This series product has powerful ID filtering conversion and data conversion functions.
(4) This series product has powerful anti-interference capability.
Product Selection

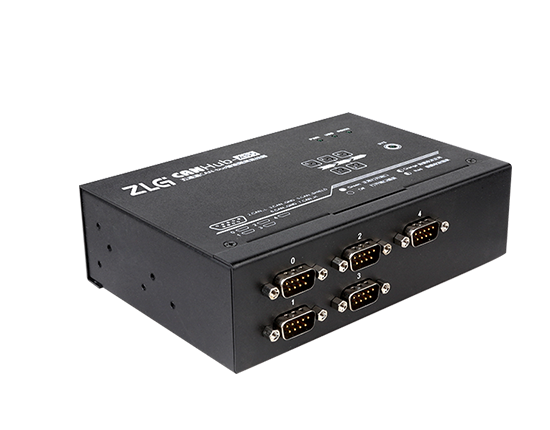

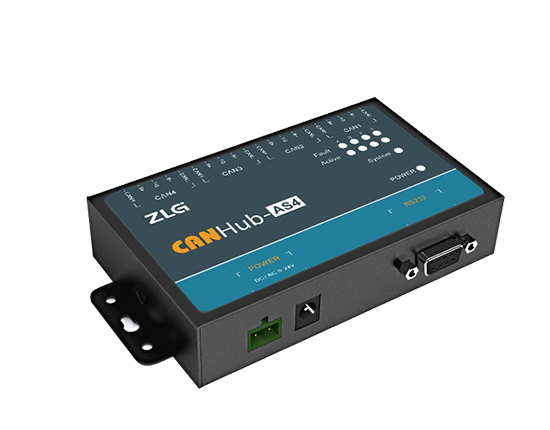

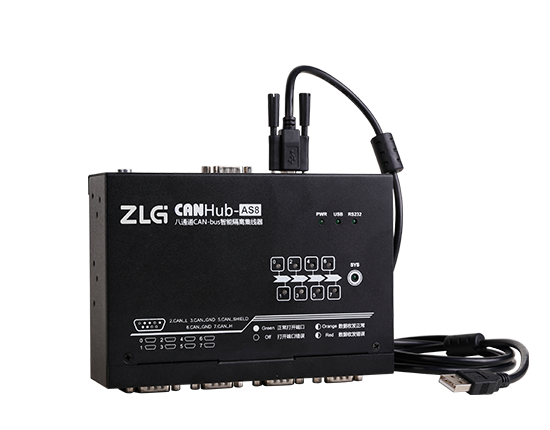

| Models | CANHub-AS4 | CANBridge+ | CANBridge |
|---|---|---|---|
| Pictures |  |  |  |
| Supply voltage | 9-26V 400mA | 9-26V 150mA | 9-26V 150mA |
| High-speed CAN channels | 4 channels | 2 channels | 2 channels |
| Fault-tolerant CAN channels | - | 1-channel high-speed CAN can be switched to the fault-tolerant CAN mode | - |
| CAN Baud rate | 5K-1Mbps | 5K-1Mbps | 5K-1Mbps |
| Set the baud rate independently for each channel | √ | √ | √ |
| Configuration interface | RS232 | USB | RS232 |
| Electrical isolation | √ | √ | √ |
| Industrial grade | √ | √ | √ |
| Message forwarding capability | 6000 frames/second (each channel) | 8000 frames/second (each channel) | 6000 frames/second (each channel) |
| Message forwarding method | save and forward | save and forward | save and forward |
| Forwarding delay | <3ms | <0.1ms | <3ms |
| Lengthen communication distance | √ | √ | √ |
| Cascade connection | √ | √ | |
| Routing | √ | - | √ |
| ID conversion function | - | √ | - |
| Data conversion function | - | √ | - |
| 120ohm terminal resistor | External | Built-in 120ohm ; and the short-circuit terminal is enabled | external |
| Installation method | Positioning-hole | Positioning-hole, optional NETCOM-DIN35CN guide-rail accessory | Guide-rail |
| Dimensions | 118mm*83mm*26mm | 100mm*70mm*25mm | 100mm*70mm*25mm |
Stable, Reliable and Widely Applicable
The CAN isolation bridge switch series product has been proven to be reliable and stable by stringent verification, and has been widely used in high-speed railways, metros, coal mines, medical treatment, aerospace, building security, elevator control for distance extension, topological structure improvement and interference isolation.

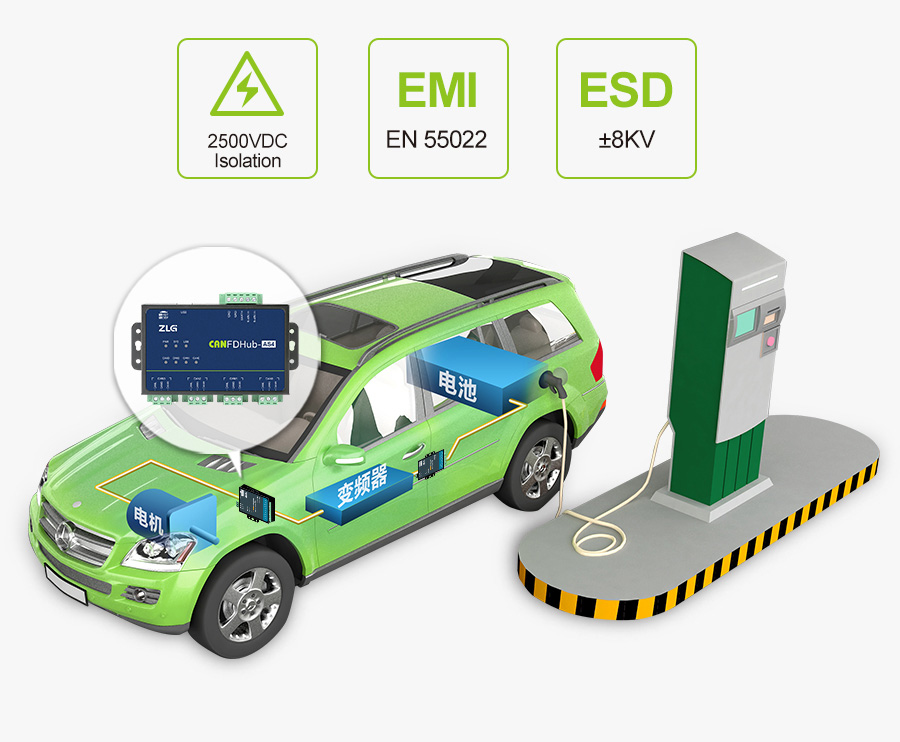

CAN Interface with 2500VDC Electrical Isolation
The CAN interface with 2500VDC electrical isolation and the ±8KV electrostatic discharge help you to isolate interface effectively.
The Baud rate of each channel can be set at random.
The CAN Baud rate of each channel can be set at random in the range of 5Kbps1Mbps.

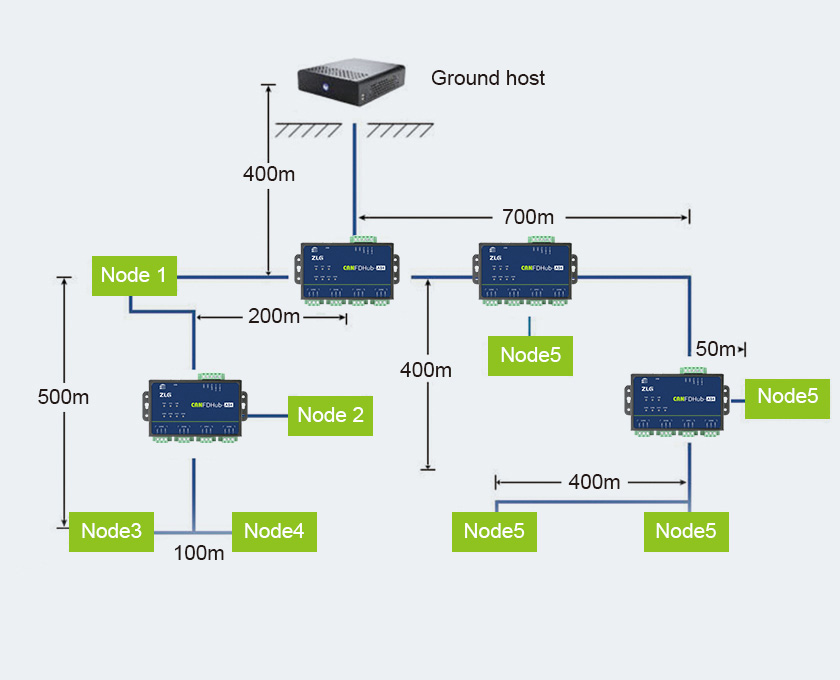

Unlimited cascade connection can realize ultra-long distance communication.

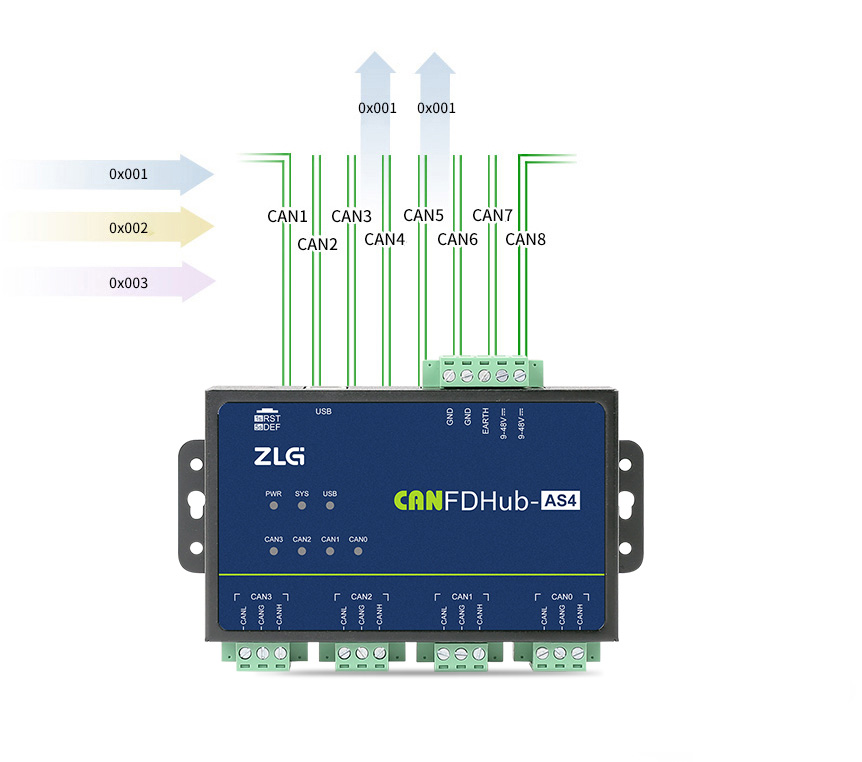

Powerful routing and ID filtering function can effectively control the bus load.

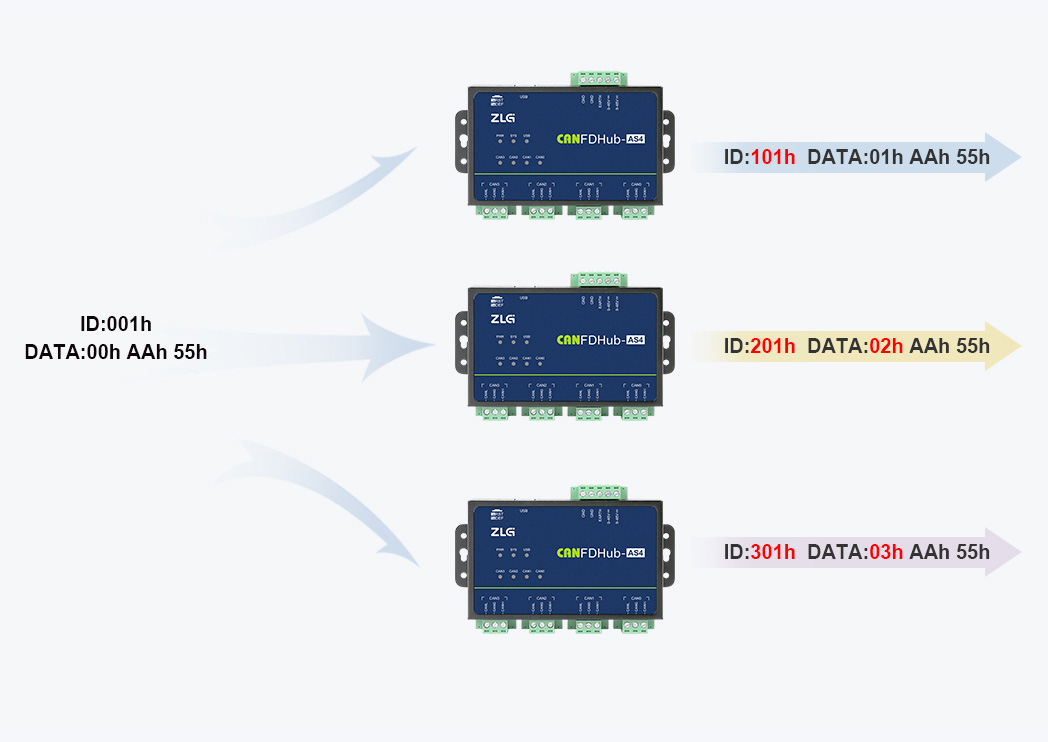

Special CANBridge+ Function: ID and Data Conversion
CAN protocol is fully compliant with CAN2.0B specification
The CAN protocol is fully compliant with CAN2.0B specification and ISO 11898-1/2/3, and compatible with CAN2.0A.
CANBridge strongly recommended by SIEMENS Security System
Configuration Software
1.When configuring the CANBridge, users only need to correctly set Baud rate for two channels. The filtering setting should only be used as required. The following figure shows that a certain 100kbps bus is lengthened to 100m from 50m and only the messages with0x001-0x005 ID are allowed to pass.
2.CANBridge+ has frame mapping function, and maximum 64 frames can be provided for a single channel. In some special occasions, the received IDs should be converted into other IDs, or the data part of frame needs to be converted. The frame ID and data can be conveniently changed by using the frame mapping function.
3.When configuring CANHub-AS4, users only need to correctly set the Baud rate and routing for four channels. The filtering setting should only be used as required. The following figure shows the example that the host is connected to CAN1 and the messages are forwarded to CAN2, CAN3 and CAN4 from CAN1. Users can observed that messages of CAN2, CAN3 and CAN4 can only be forwarded to CAN1 instead of other channels. In this way, the invalid data forwarded can be greatly reduced, thus improving the bus utilization rate.
4.The configuration software can monitor CAN operation status, and obtain bus errors in real time to help the field operators to determine fault causes.
CANBridge Monitoring Window
CANHub-AS4 Monitoring Window
