Parameters

  • Serial devices can be quickly connected to the network, and a transparent transmission channel is built between serial port and Ethernet;
  • Automatically disconnect and reconnect after the network is disconnected to ensure the reliable TCP connection in the whole network;
  • Check bit, stop bit and data bit of working serial port can be set;
  • With dip switch operation, RS-232/485 serial port can be selected as required;
  • The serial port supports software and hardware flow control to ensure the reliable transmission of serial port data;
  • Support DNS to meet the requirements of communication through domain names;
  • Flexible serial port data framing settings meet various subpackage requirements of users;
  • It is compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software of the upper computer follows the standard SOCKET rules;
  • It supports virtual serial port working mode and provides Windows virtual serial port driver. Users’ serial devices can be seamlessly upgraded to Ethernet communication mode without changing the original serial port software;
  • TCP supports multi-connection, password verification and sending specific data after connection, and manages a serial port device while satisfying less than 4 users;
  • In TCP Client mode, you can choose the connection control conditions of serial port state change, serial port receiving any data or Start up, establish or disconnect TCP connection by controlling serial port state, which is convenient for you to control TCP connection;
  • In UDP mode, it supports stand-alone or multi-machine communication, which meets the requirements of multiple users to manage a serial device simultaneously;
  • Each serial port can be configured into different working modes, which can be flexibly applied in various fields;
  • Support advanced security mechanisms to prevent unauthorized access, provide firewall IP address screening, and set at most 8 certified IP or IP segments;
  • Highly reliable serial Ethernet conversion solution simplifies complex application system;
  • Support the upgrading of remote firmware.

Product dimension

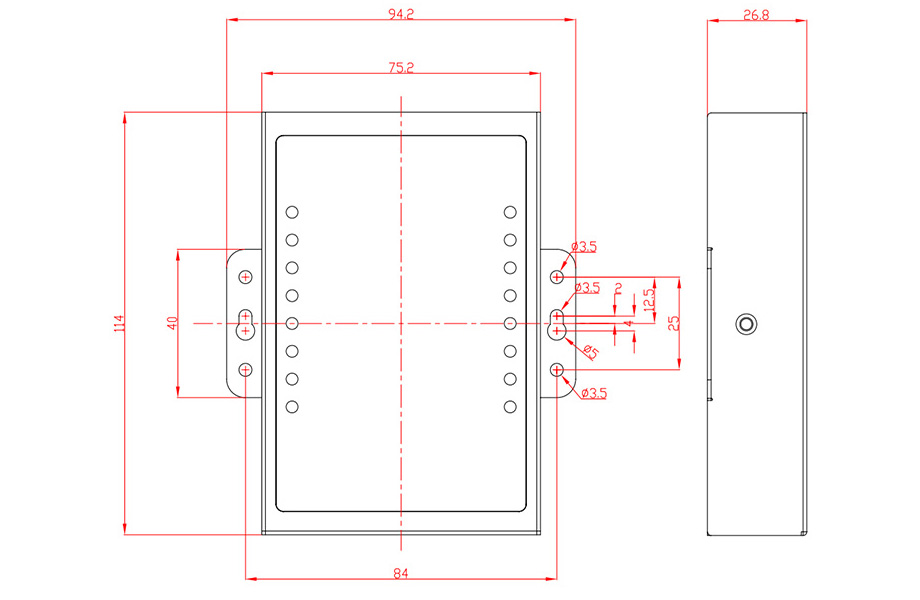

NETCOM-200L product dimension drawing

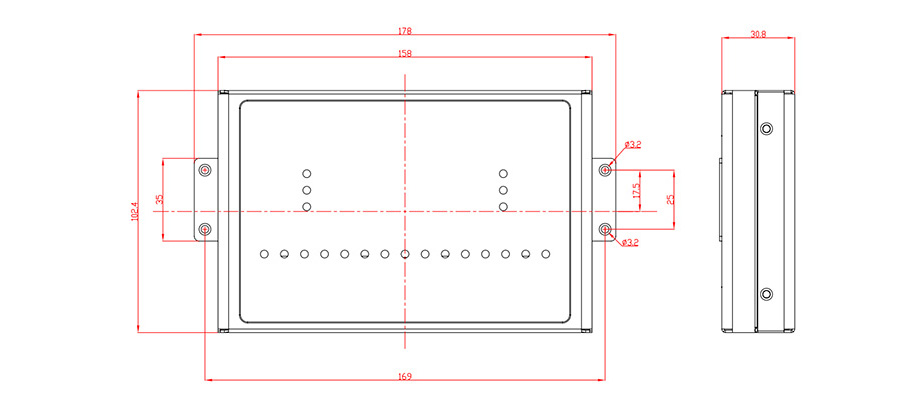

NETCOM-400L product dimension drawing

Accessories list

Packing list of NETCOM-200L
SNNameQuantityUnitRemarks
1NETCOM-200L device1Piece
2NETCOM PACK2Piece
3Ethernet crossover cable1Piece
4After-sales service guide1Piece
5Certificate of conformity1Piece
Packing list of NETCOM-200IE
SNNameQuantityUnitRemarks
1NETCOM-200IE device1Piece
2NETCOM PACK2Piece
3DC12V power adapter1Piece
4Ethernet crossover cable1Piece
5After-sales service guide1Piece
6Certificate of conformity1Piece
Packing list of NETCOM-400L
序号NameQuantityUnitRemarks
1NETCOM-400L device1Piece
2NETCOM PACK4Piece
3DC12V power adapter1Piece
4Ethernet crossover cable1Piece
5After-sales service guide1Piece
6Certificate of conformity1Piece
Packing list of NETCOM-400IE
SNNameQuantityUnitRemarks
1NETCOM-400IE device1Piece
2NETCOM PACK4Piece
3DC12V power adapter1Piece
4Ethernet crossover cable1Piece
5After-sales service guide1Piece
6Certificate of conformity1Piece
