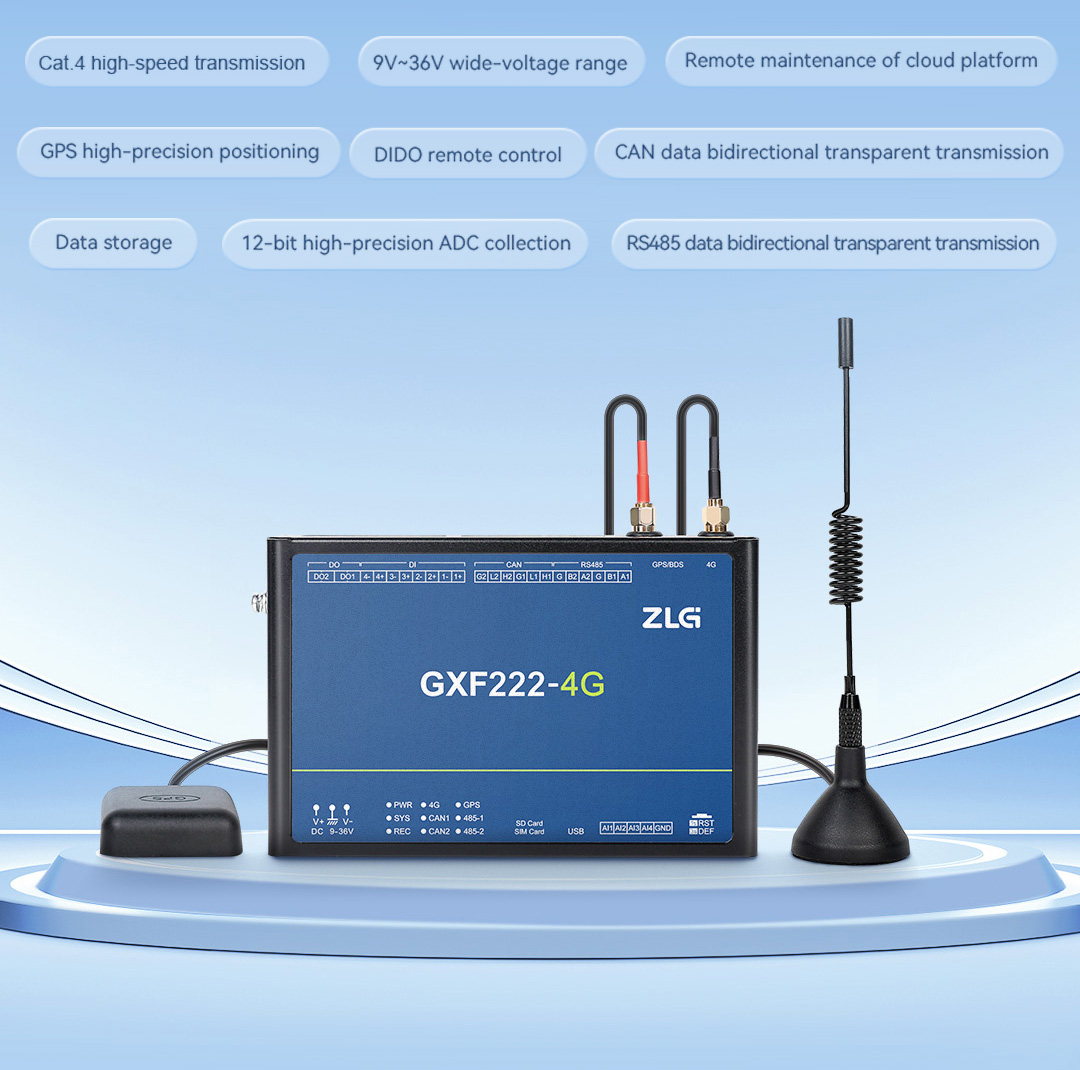

New-generation industrial data collection edge gateway
GXF222-4G
Selection Table
| Product model | GXF222-4G |
|---|---|
| RS-485 Channels | 2 |
| RS-485 Baud Rate | 2400~230400bps |
| RS-485 interface type | Terminal |
| CAN Channels | 2 channels (support CAN FD) |
| CAN maximum Rate | 2500 frames/second/channel |
| CAN baud Rate | 40k~5Mbps |
| CAN interface type | Terminal |
| Debugging interface | USB（TypeC） |
| 4G data transmission | Cat.4 |
| 4G maximum downlink rate | 150Mbps |
| 4G maximum uplink rate | 50Mbps |
| Data cloud | Supported |
| Positioning function | GPS/Beidou |
| Local data storage | Supported |
| SD card type | Class10 |
| DI | 4 channels |
| DO | 2 channels |
| ADC | 4 channels |
| 120 Ω termination resistance | Supported (CAN FD, RS-485) |
| Supply voltage | DC 9~36V |
| Power failure saving | Supported |
| Operating temperature | -40℃~+80℃ (excluding SD card) |
| Product dimension | 158.00×102.40×30.80mm |
| Mounting mode | Guide rail/hanger mounting |

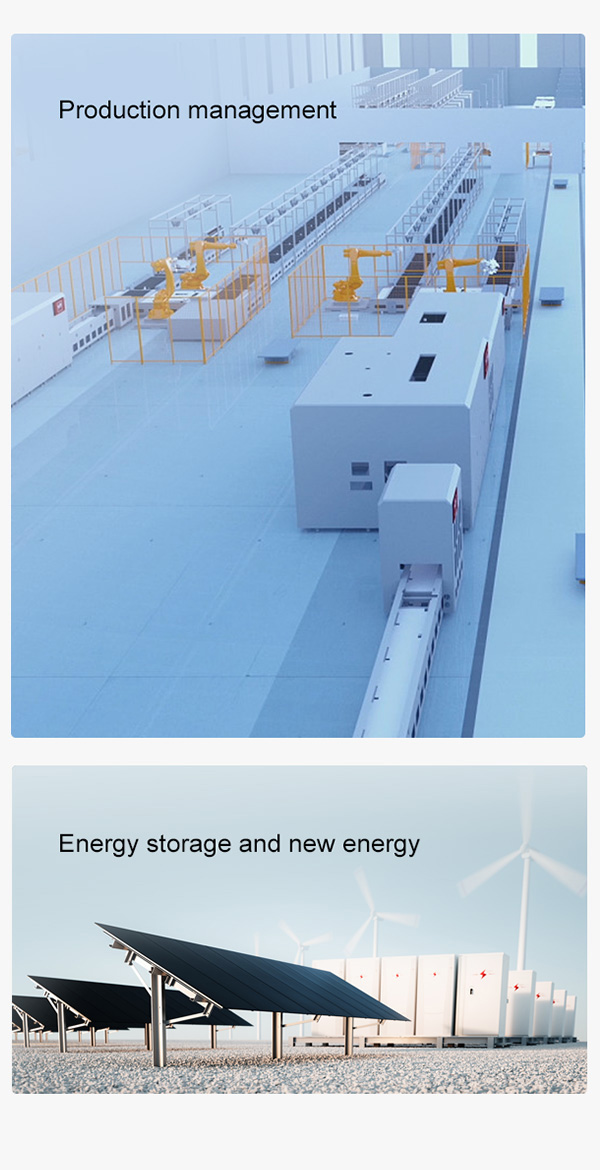

Typical application scenarios

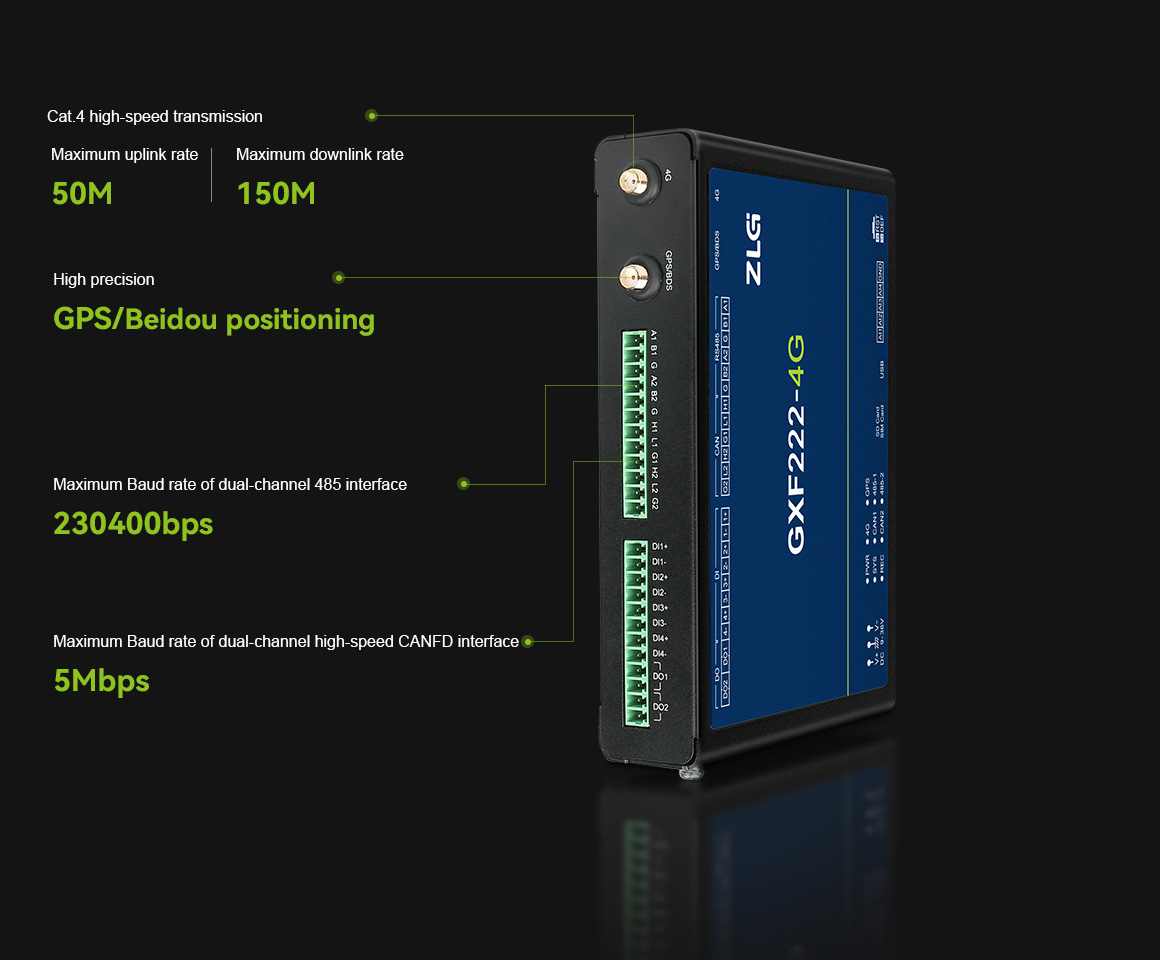

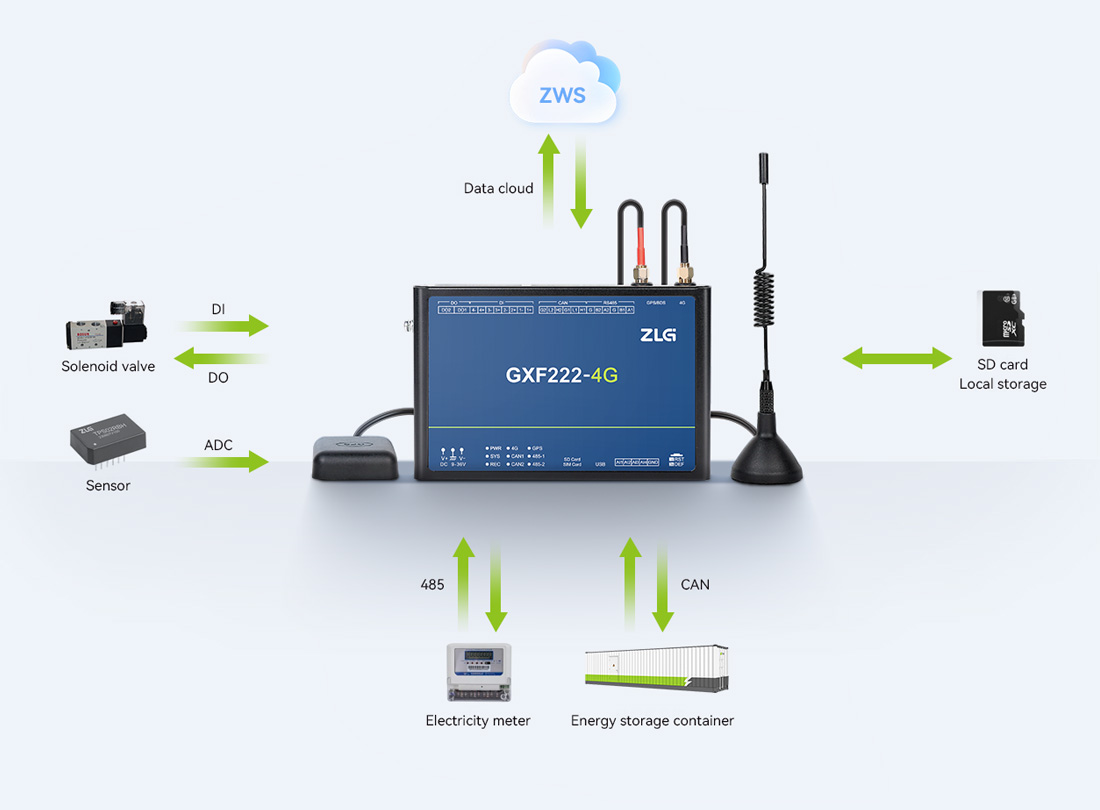

High-performance communication interface

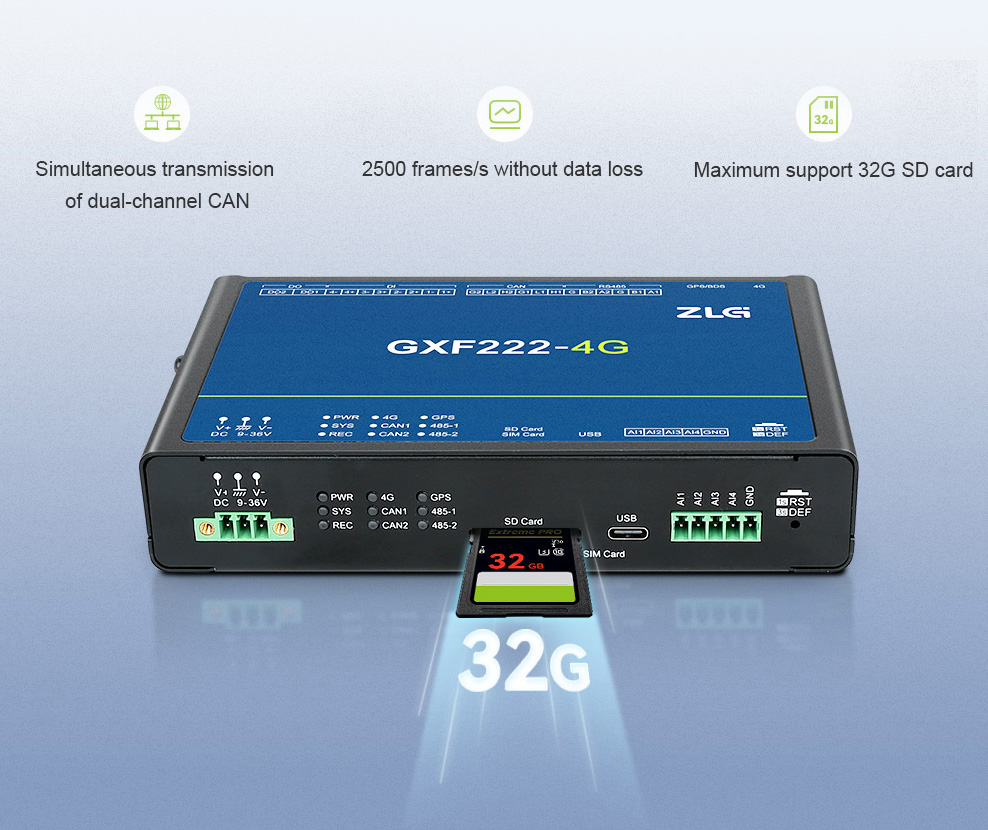

Local storage of CAN FD data

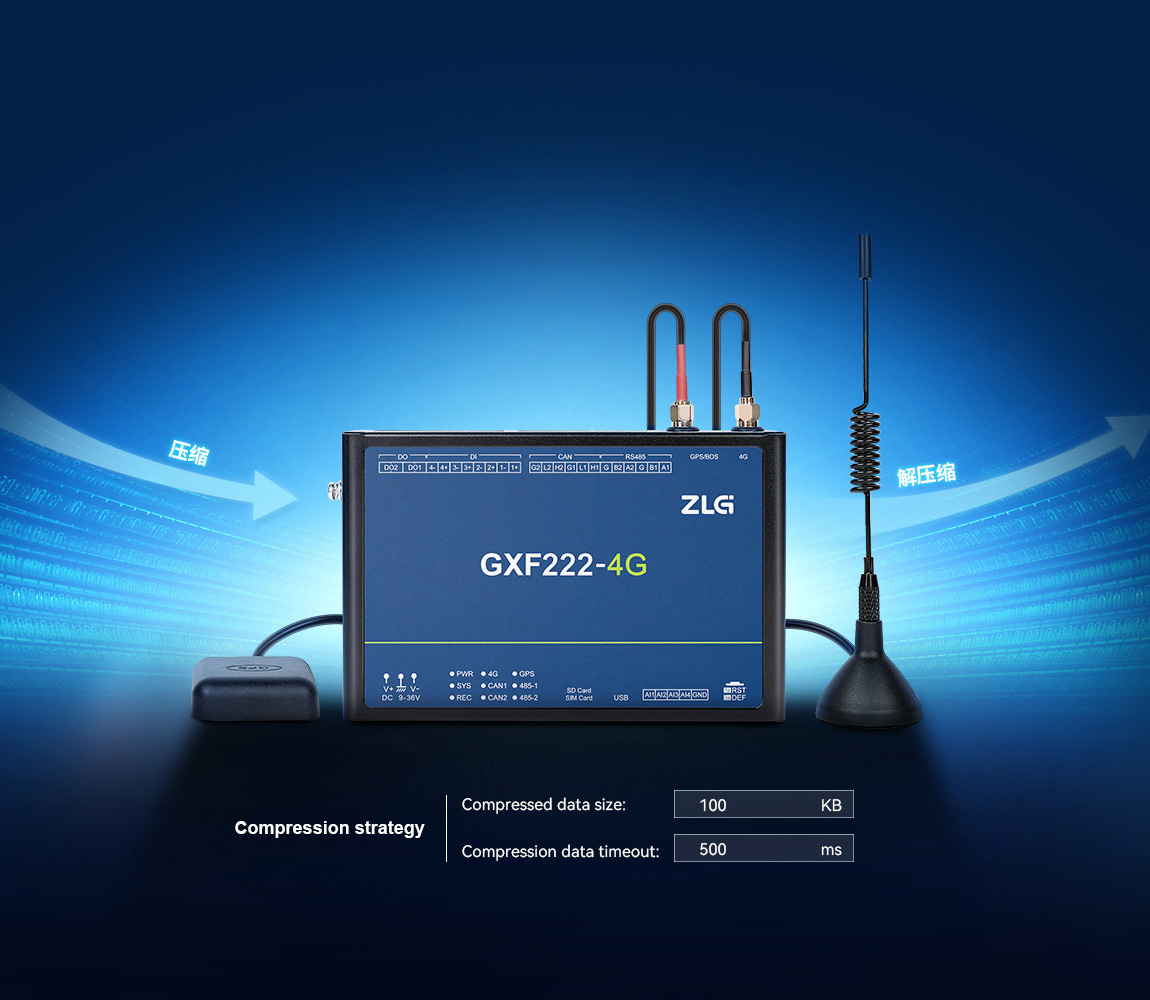

Data compression and transmission save customers’ flow
Privatization deployment of cloud platform
We provide platform privatization services. Customers can choose the Zhiyuan ZWS cloud platform to make deployment in their own servers to complete independent management and application.
Remote maintenance of cloud platform

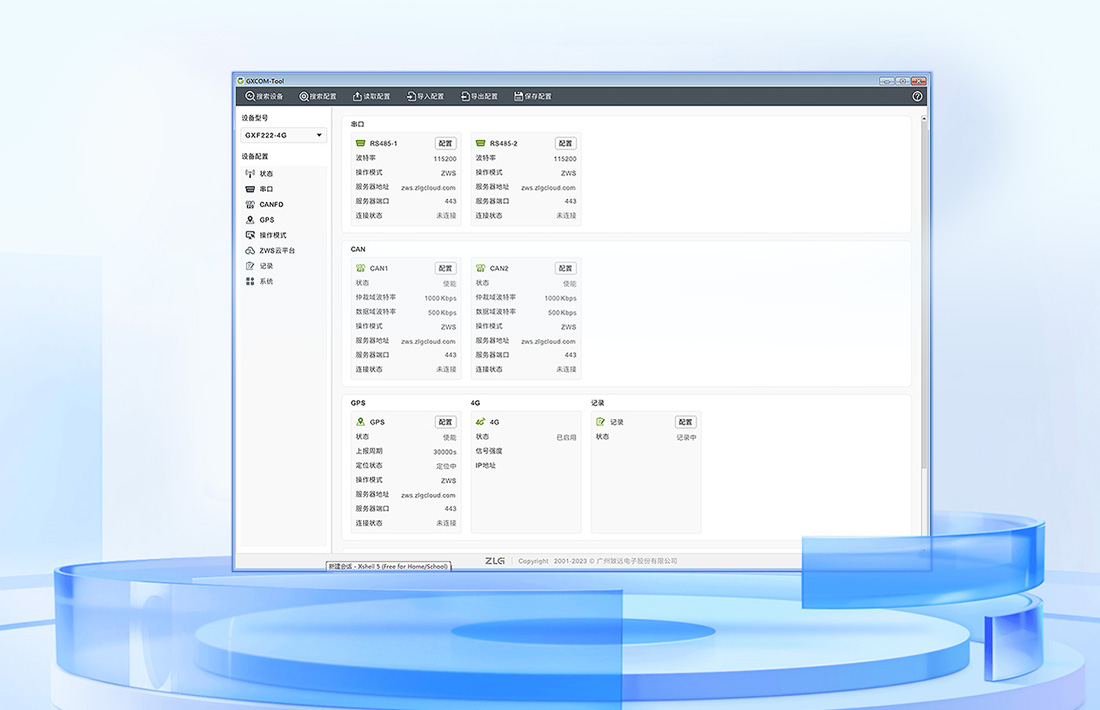

Easy-to-use configuration tool

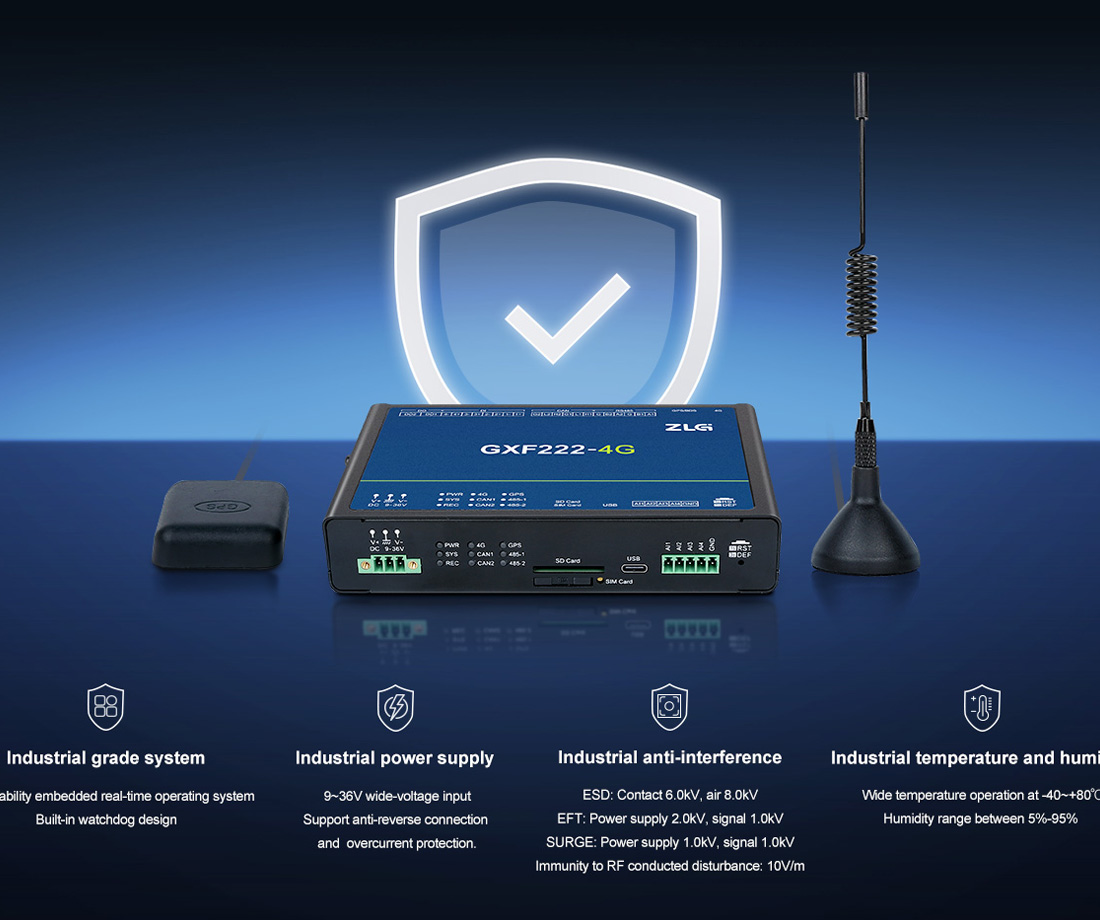

Quality at industrial grade, stable and reliable

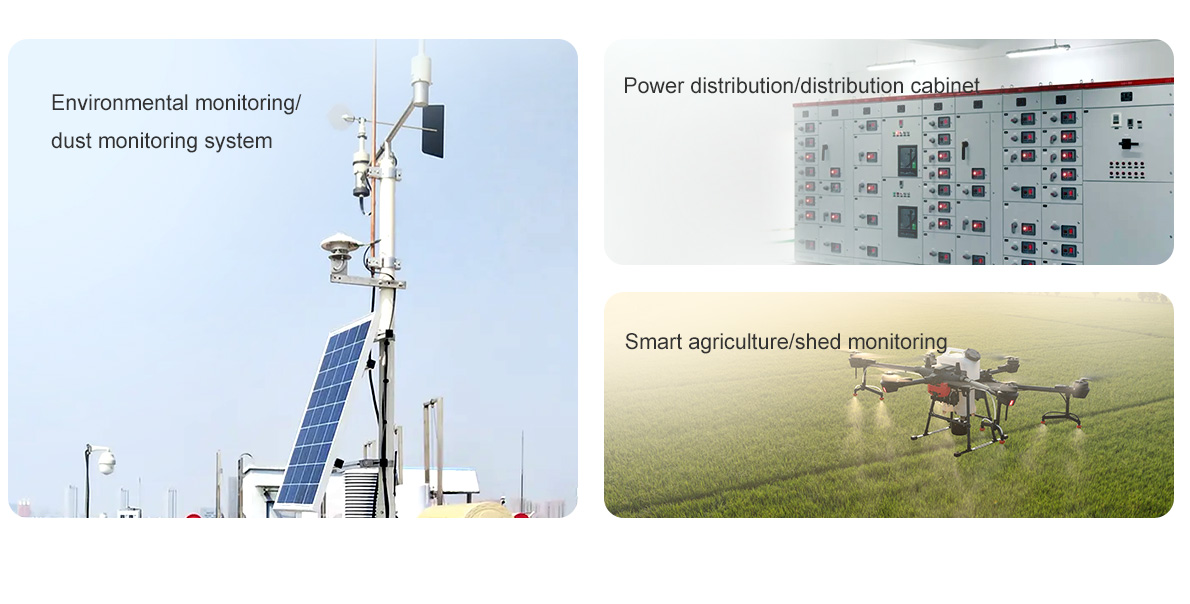

Industry cases
