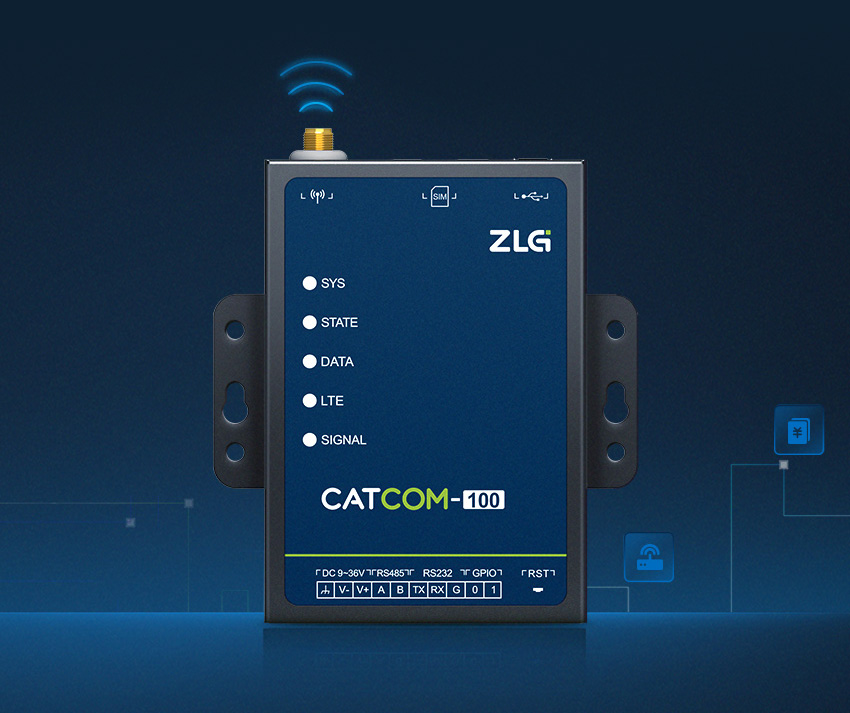

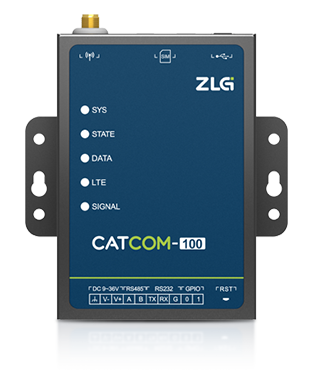

CATCOM Cat.1 intelligent network terminal

CATCOM-100/ZWG-40COM

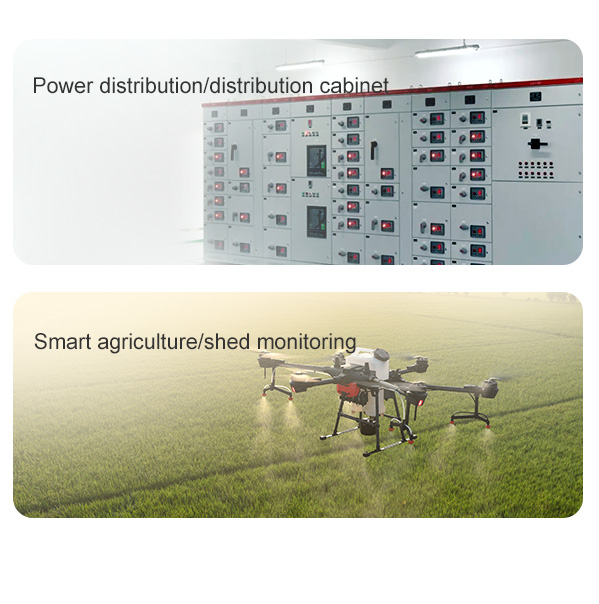

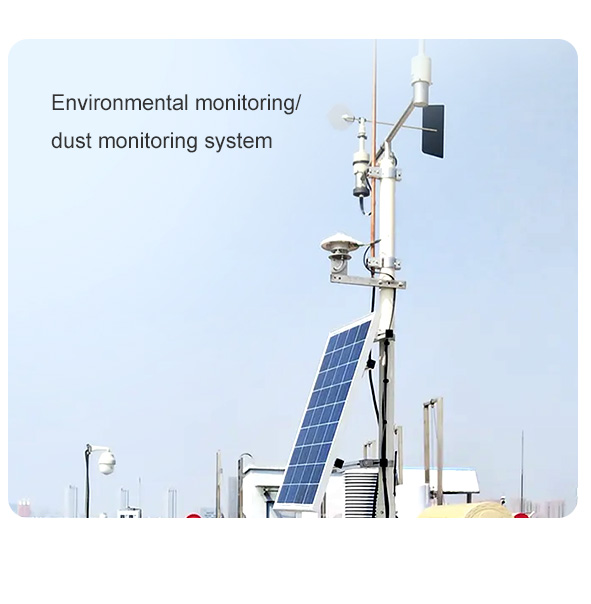

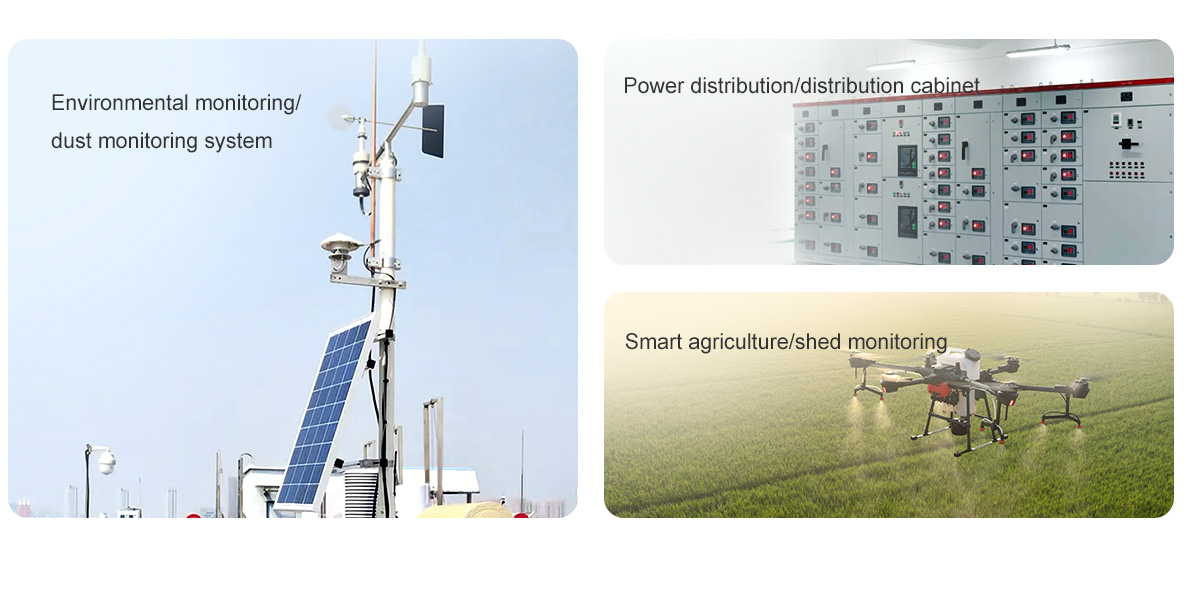

CATCOM-100 is an industrial-grade intelligent network terminal, which can quickly realize equipment networking through such interfaces as RS-485. The terminal adopts the communication standard of Cat.1, which supports the communication rate of 5Mbps uplink and 10Mbps downlink at the highest and shares the base station with the Cat.4(LTE 4G) network to ensure the signal coverage. CATCOM-100 is suitable for environmental monitoring, power distribution, smart factories, smart agriculture and other application scenarios.

CATCOM-100/ZWG-40COM

CATCOM-100 is an industrial-grade intelligent network terminal, which can quickly realize equipment networking through such interfaces as RS-485. The terminal adopts the communication standard of Cat.1, which supports the communication rate of 5Mbps uplink and 10Mbps downlink at the highest and shares the base station with the Cat.4(LTE 4G) network to ensure the signal coverage. CATCOM-100 is suitable for environmental monitoring, power distribution, smart factories, smart agriculture and other application scenarios.

Product Parameters

Product model	CATCOM-100	ZWG-40COM
Interface support	1-channel RS-232, 1-channel RS-485	2-channel RS-232, 1-channel RS-485
Communication standard	Cat.1 multi-mode	Cat.1 multi-mode
Communication rate	Uplink 5Mbps, downlink10Mbps	Uplink 5Mbps, downlink10Mbps
Cloud mode	TCP/IP,PPP,UDP,HTTP,MQTT	TCP/IP,PPP,UDP,HTTP,MQTT
Remote configuration	Supported	Supported
Remote upgrade	Supported	Supported
SMS command	Supported	Supported
Disconnection reconnection	Disconnection alarm, automatic reconnection	Disconnection alarm, automatic reconnection
Registration packet/heartbeat packet	Supported	Supported
Electrical isolation	-	Isolation withstand voltage 2000Vrms
Power DC protocol	Supported	Supported
Secondary development	Not supported	Supported

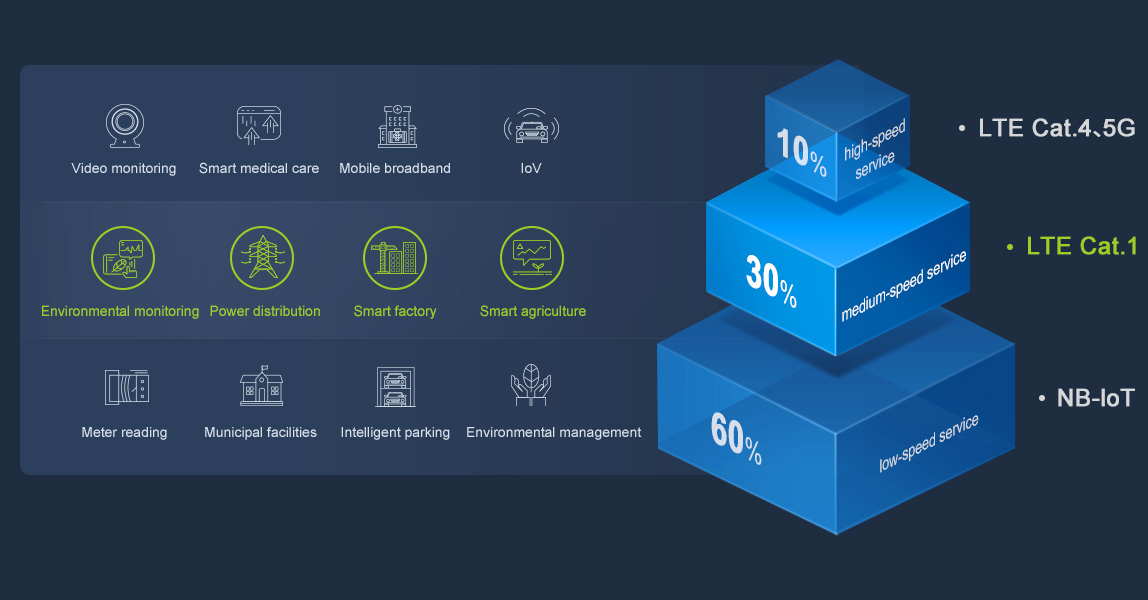

Introduction to Cat.1 technology

Cat.1 is the abbreviation of LTE UE-Category 1, which is an LTE (4G) communication standard formulated by 3GPP. With the trend of 2G/3G network phase-outs, the Cat.1 technology featuring medium speed, low delay and wide coverage will soon become a new favorite in IoT applications.

Remote management, worry-free operation and maintenance

Cat.1 intelligent network terminal supports a series of remote maintenance functions such as remote configuration, remote upgrade, remote signal quality monitoring, registration packet /heartbeat packet, disconnection alarm/self-recovery. It can complete equipment maintenance without leaving home.

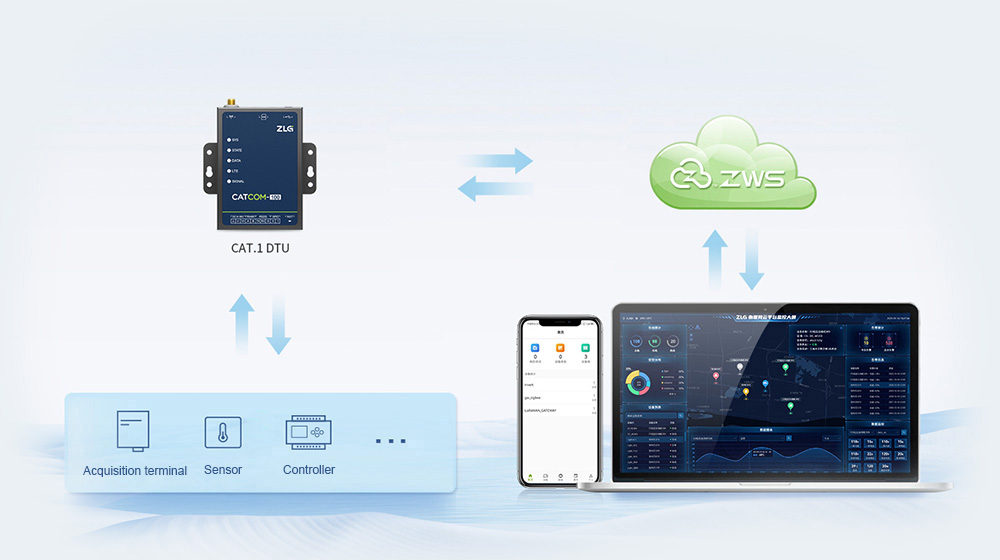

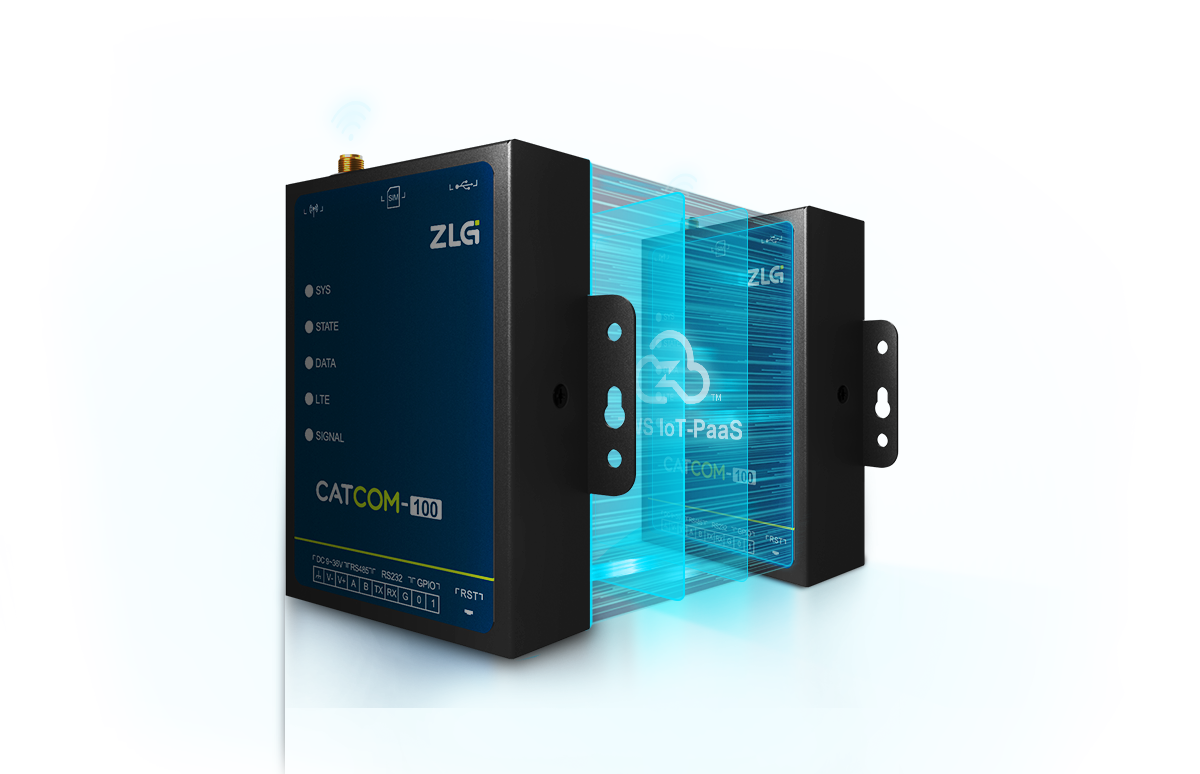

End-to-end remote device transparent transmission

Cat.1 intelligent network terminal supports the transparent transmission of data between terminals through cloud platforms such as ZWS IoT-PaaS. For example, the devices in Guangzhou and Beijing can realize data interaction with simple configuration.

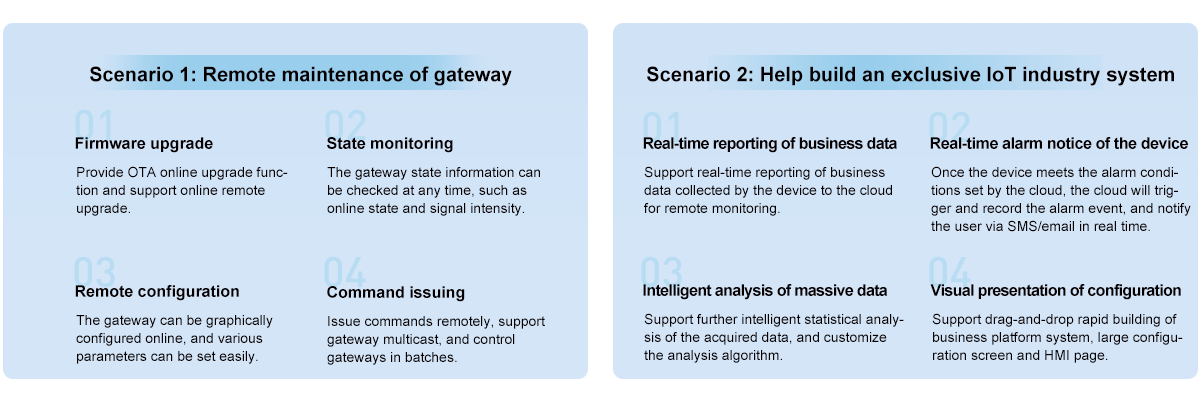

Match with the ZWS IoT cloud platform to make equipment management and maintenance more efficient

Based on the ZWS IoT cloud platform independently developed by Zhiyuan Electronics, it supports the remote maintenance of the gateway, helping you build an exclusive IoT industry system, and making your equipment management and maintenance more efficient!

Learn more

Match with the ZWS IoT cloud platform to make equipment management and maintenance more efficient

Based on the ZWS IoT cloud platform independently developed by Zhiyuan Electronics, it supports the remote maintenance of the gateway, helping you build an exclusive IoT industry system, and making your equipment management and maintenance more efficient!

Learn more

One device supports multiple cloud modes

Cat.1 intelligent network terminal supports connecting to the server in multiple modes: TCP/IP, UDP, HTTP, MQTT, etc. It can quickly upload data to the cloud according to the need.

One device supports multiple cloud modes

Cat.1 intelligent network terminal supports connecting to the server in multiple modes: TCP/IP, UDP, HTTP, MQTT, etc. It can quickly upload data to the cloud according to the need.

Diversified solutions

Zhiyuan Electronics provides users with diversified solutions of Cat.1. If you want to quickly network the devices, you can choose the intelligent network terminal of CAT.1, and the data can be transmitted through plug and play.

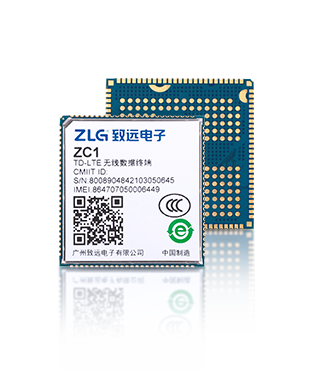

Solution of secondary development core board

Using the secondary development core board, the cost of OpenCPU is lower

Eclipse/keil development
All resources open
Integrated Cat.1/BLE

View the solution of intelligent network terminal >>

Solution of intelligent network terminal

Use terminal products to quickly get through the data channel from the device to the cloud

Transparent transmission of data
Remote management
Quick access to the cloud

Diversified solutions

Zhiyuan Electronics provides users with diversified solutions of Cat.1. If you want to quickly network the devices, you can choose the intelligent network terminal of CAT.1, and the data can be transmitted through plug and play.

Solution of secondary development core board

Using the secondary development core board, the cost of OpenCPU is lower

Eclipse/keil development
All resources open
Integrated Cat.1/BLE

Solution of intelligent network terminal

Use terminal products to quickly get through the data channel from the device to the cloud

Transparent transmission of data
Remote management
Quick access to the cloud

View the solution of intelligent network terminal >>

Quality at industrial grade

Cat.1 intelligent network terminal adopts 3000Vrms electrical isolation interface (isolation version) to ensure stable operation in various industrial environments.
