LoRa intelligent networking chip

ZSL420/ZSL421/ZSL860/ZSL861

ZSL420/ZSL421/ZSL860/ZSL861 are four LoRa intelligent networking chips, and support various modulation modes such as LoRa, FSK and GFSK. Combined with spectrum broadening processing technology, the long-distance communication problem of small data in a complex environment is solved. The operating frequency of ZSL420/ZSL421 is 470MHZ~510MHz, and the operating frequency of ZSL860/ZSL861 is 863MHZ~870MHz. They support the transparent transmission protocol for embedded ad hoc network and one-click networking, and provide LinkWAN protocol, CLAA protocol and LoRaWAN protocol (only ZSL420/ZSL421). The chip has a built-in open 32-bit Arm^® Cortex^®-M0+ core, a basic frequency of 48MHz, 256 KB Flash, and 32KB SRAM, which is convenient for users to redevelop the functions. It is an excellent choice in the wireless communication field of IoT.

LoRa intelligent networking chip
ZSL420/ZSL421/ZSL860/ZSL861

ZSL420/ZSL421/ZSL860/ZSL861 are four LoRa intelligent networking chips, and support various modulation modes such as LoRa, FSK and GFSK. Combined with spectrum broadening processing technology, the long-distance communication problem of small data in a complex environment is solved. The operating frequency of ZSL420/ZSL421 is 470MHZ~510MHz, and the operating frequency of ZSL860/ZSL861 is 863MHZ~870MHz. They support the transparent transmission protocol for embedded ad hoc network and one-click networking, and provide LinkWAN protocol, CLAA protocol and LoRaWAN protocol (only ZSL420/ZSL421). The chip has a built-in open 32-bit Arm^® Cortex^®-M0+ core, a basic frequency of 48MHz, 256 KB Flash, and 32KB SRAM, which is convenient for users to redevelop the functions. It is an excellent choice in the wireless communication field of IoT.

Product Selection

Product model	ZSL420	ZSL421
Internal integrated clock circuit	Available	Unavailable
Frequency range	470MHz~510MHz
Transmitting power	-9~21dBm@step1dB
Receiving sensitivity	-125dBm@5.4kbps	-148dBm@24bps
Core	32位Cortex^®-M0+
Receiving sensitivity	45
Built-in protocol	Ad hoc transparent transmission protocol
Operating temperature	-40~+85℃
Dimension (mm)	11111.1
Package	LGA68
Sample application	Apply

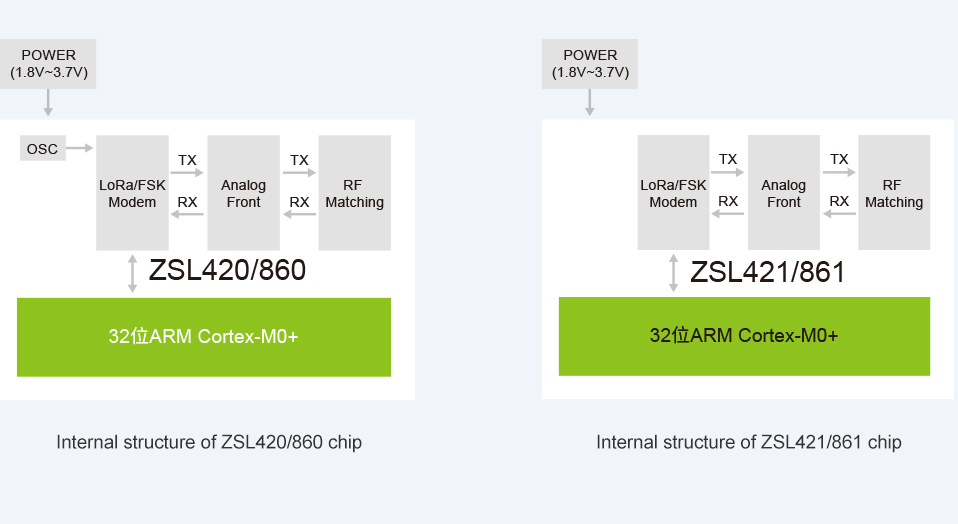

Highly integrated hardware

Integrate RF transceiver matching, filtering circuit and clock circuit (only ZSL420); integrate 32-bit Cortex^®-M0+ microprocessor with low power consumption, the highest operating frequency 48MHz, 256KB Flash, 32KB SRAM and 45 universal I/O ports; support LoRa, FSK and other modulation modes; LGA68 package, 11mm*11mm*1mm, compact and convenient to use.

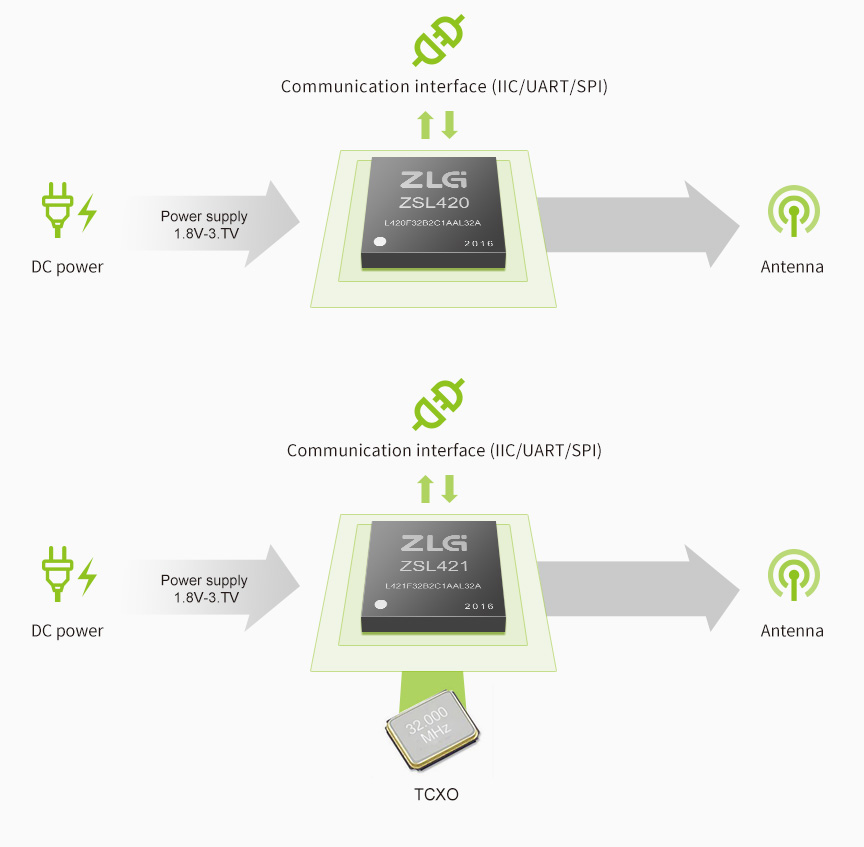

Typical application, minimalist design of peripheral circuits

ZSL420/860 can provide a wireless communication function by connecting power source and antenna. ZSL421/861 can be connected with an active temperature-compensation crystal oscillator and applied in extremely low-speed communication occasions.

Integrate RF transceiver circuit

Operating frequency range of ZSL42x: 470MHz~510MHz; standby current: 2uA; receiving current: 5.5A; maximum power transmission current: 110mA@21dBm.
Operating frequency range of ZSL86x: 863MHz~870MHz; standby current: 1.4uA; receiving current: 4.7mA; maximum power transmission current: 135mA@21dBm

Integrate RF transceiver circuit

Operating frequency range of ZSL42x: 470MHz~510MHz; standby current: 2uA; receiving current: 5.5A; maximum power transmission current: 110mA@21dBm.
Operating frequency range of ZSL86x: 863MHz~870MHz; standby current: 1.4uA; receiving current: 4.7mA; maximum power transmission current: 135mA@21dBm

Integrate open 32-bit Cortex^®-M0+ core

Basic frequency 48MHz, 45 universal GPIO ports; 256KB Flash and 32KB RAM; 4 standard UARTs, 2 UARTs with low power consumption, 1 SPI interface and 2 I2C interfaces; built-in 12-bit 1Msps ADC and 12-bit 500Ksps DAC; built-in true random number generator (TRNG); built-in AES-128/192/256 hardware coprocessors.
