Based on more than 20 years of bus isolation technology and process experience, ZHIYUAN Electronics has launched SPI/UART to CAN ICs CSM330A & CSM331A, and SPI/UART to dual-CANFD ICs CSM430B & CSM431B.

Compared with the traditional module solution, CSM series protocol conversion chips have more advanced production technology, smaller board occupying area, higher integration and performance parameters, and they can provide users with standard and reliable CAN or CANFD interface extension solutions.

Selection Table

Product NumberDatasheetPackageSPI
Baud rate (bps)		UART
Baud rate (bps)		CAN/CANFD
Baud rate (bps)		Number of
CAN/CANFD channels		Isolation
voltage (VDC)		Maximum
frame flow (frame/s)		Number
of nodes		Operating temperatureSample

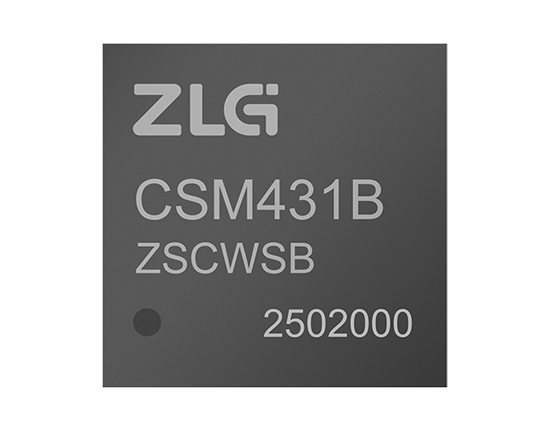

CSM431BdownloadLGA200~6M300~7M40k~1M(arbitration field)
400k~5M(data field)		2Non-isolated5500--40~105Request
samples

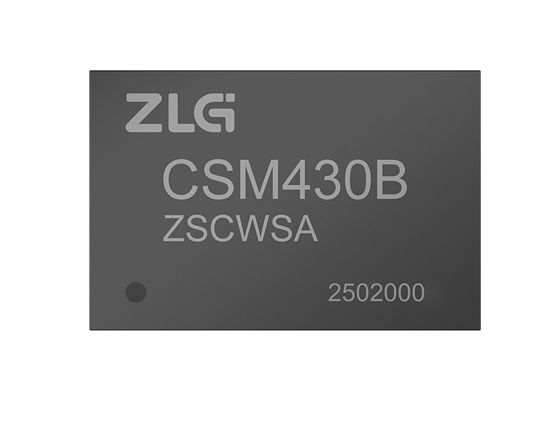

CSM430BdownloadDFN220~6M300~7M40k~1M(arbitration field)
400k~5M(data field)		235005500110-40~105Request
samples

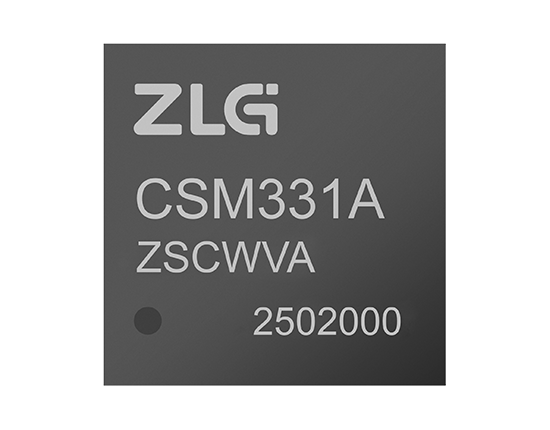

CSM331AdownloadLGA200~2M300~2M5k~1M1Non-isolated7500--40~105Request
samples
CSM330AdownloadDFN220~2M300~2M5k~1M135007500110-40~85Request
samples
Footprint library
Important notes for use

National “chip” upgrade, a protocol conversion solution with higher performance

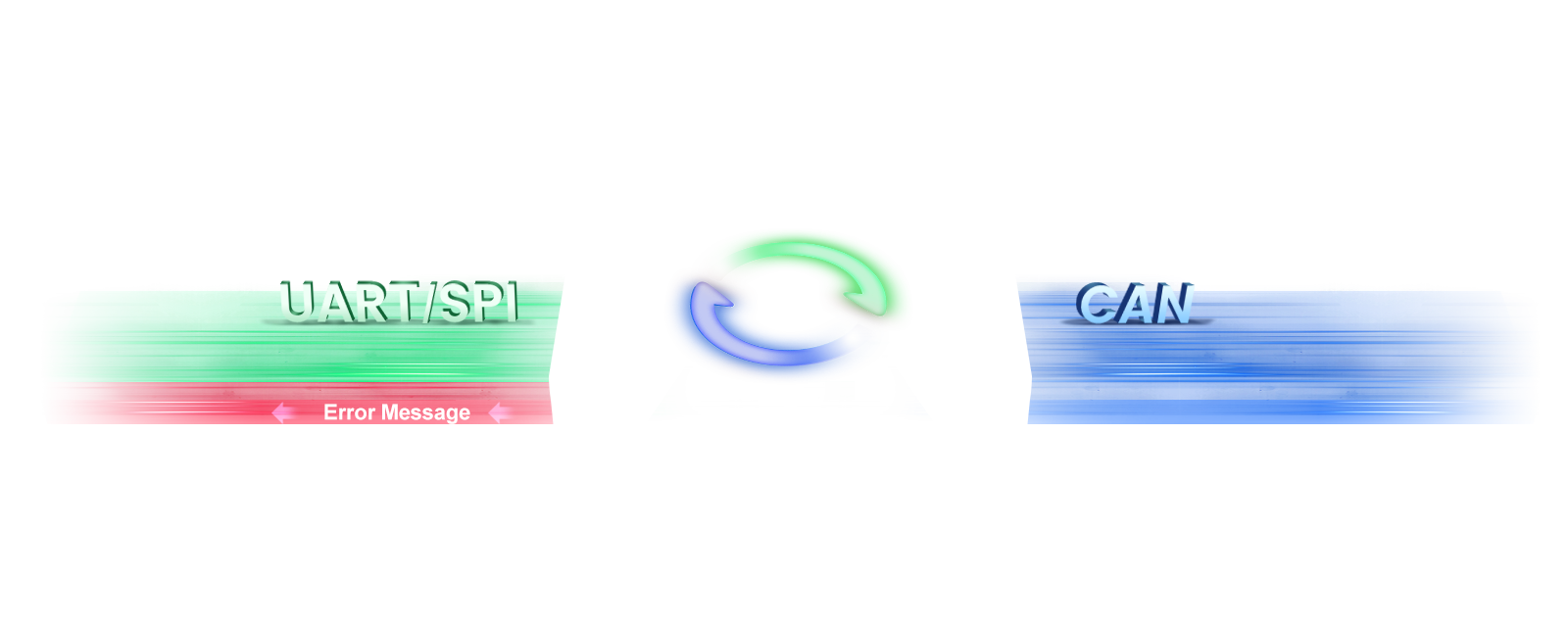

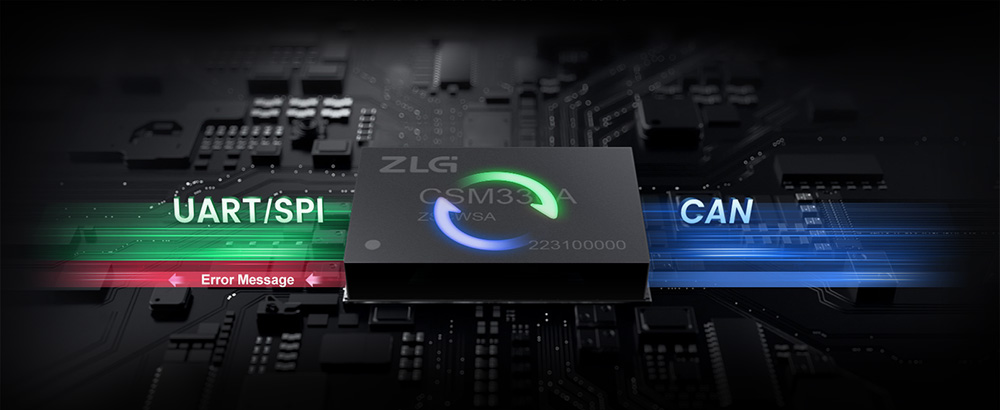

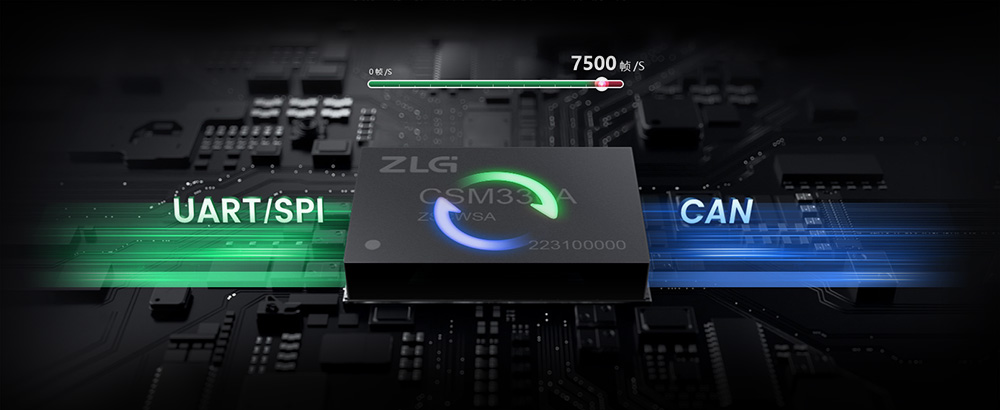

CSM fully isolated protocol conversion chip integrates Cortex-M4 core MCU and ZLG self-developed power IC, which supports 4 protocol conversion modes, multiple Baud rate gears, error feedback mechanism and the maximum frame flow of 7500 frames/s. The related performance parameters are at the leading level in the industry, providing users with high-quality CAN interface extension solutions.

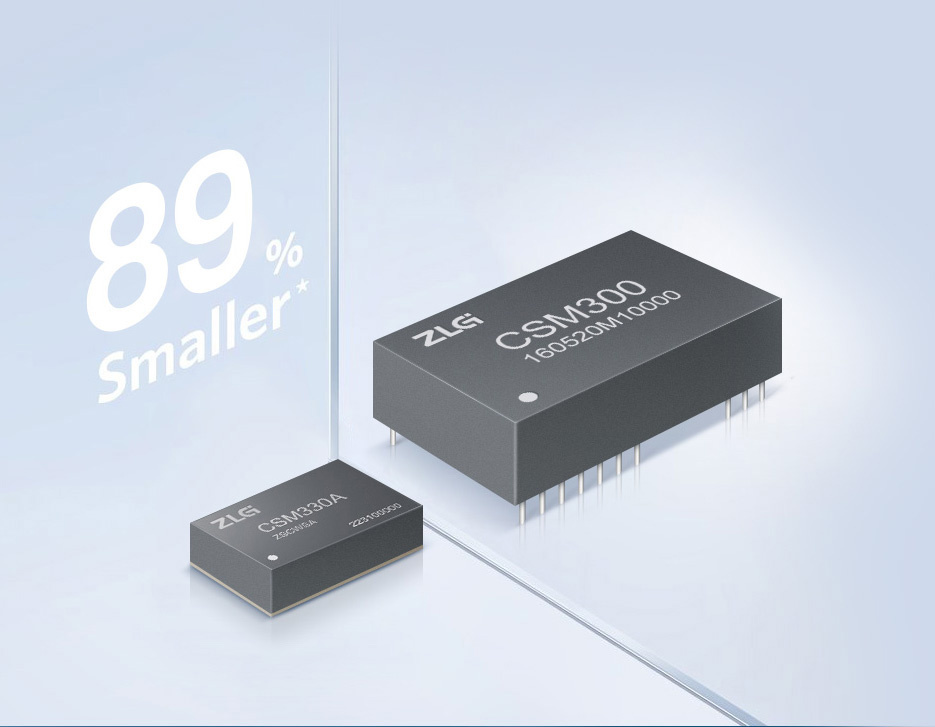

Originating from the “chip” upgrade, the volume is reduced by 89%.

National “chip” is strengthened, and its working condition adaptability is stronger.

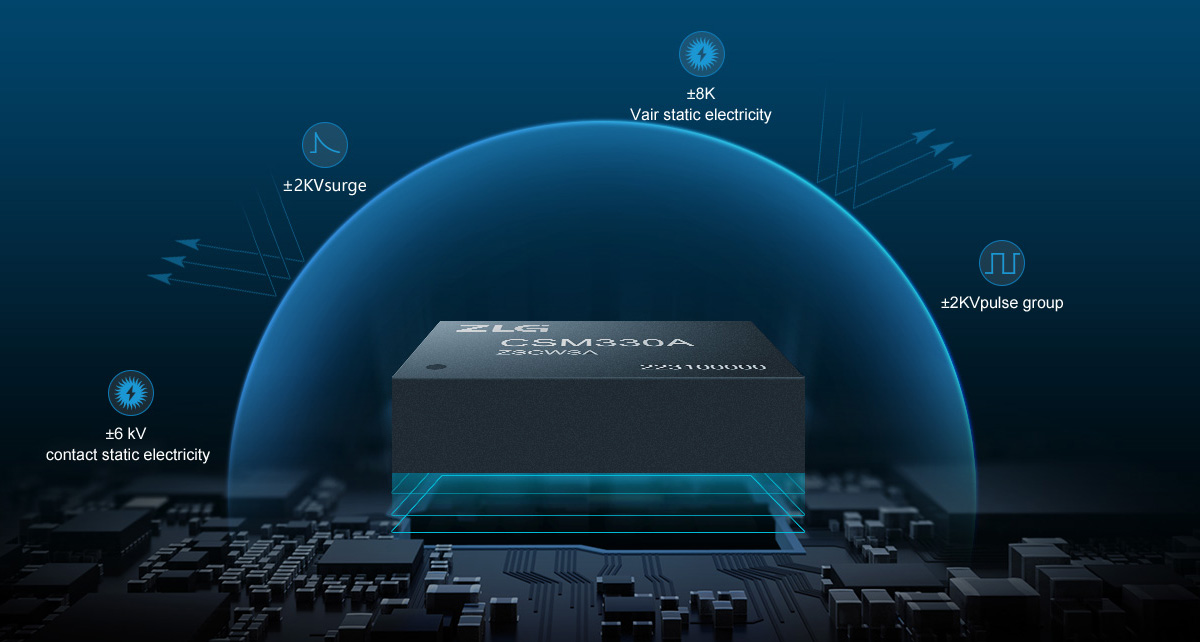

The fully isolated protocol conversion chip is made by mature SiP technology, and it has been systematically conducted with EMC testing. Combined with the product’s wide temperature adaptation range of -40~85℃, it has stronger adaptability to working conditions and meets the requirements of most industrial field applications.

National “chip” empowerment assists industry upgrade

After over 20 years of technical accumulation, Zhiyuan Electronics has realized technological innovation and provided more stable and reliable CAN interface extension solutions for energy storage, charging piles, heavy machinery, coal mines, industrial automation, rail transit, etc.
