Display control unit ZPC series

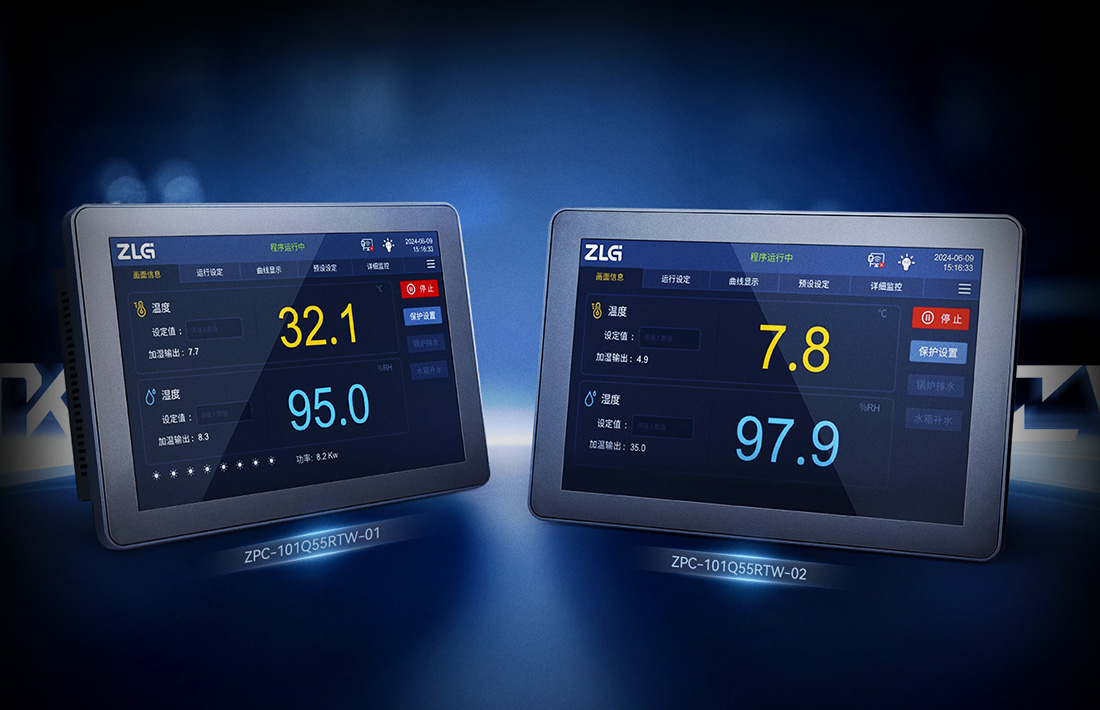

Display control unit ZPC series is a high-performance and industrial-grade display control terminal product which is developed by Zhiyuan Electronics and integrates “display” and “control”. The outer frame is made of aluminum alloy, which is simple and durable. The product integrates RS485, CAN, GigE and other peripherals. It functions after touching and is under your control. It is equipped with self-developed AWTK open source GUI engine and ZWS cloud platform to control the core. With guaranteed copyright, it can quickly create your cool HMI works.

Selection Table

ModelZPC-101Q55RTW-01ZPC-101Q55RTW-02
Processor core4*Arm® Cortex®-A554*Arm® Cortex®-A55
Frequency2.0 GHz2.0 GHz
NPU1 TOPs1 TOPs
DDR4GB LPDDR42GB LPDDR4
eMMC32GB eMMC16GB eMMC
Operating systemDebianDebian
Screen size10.1 inches10.1 inches
Display resolution1280*8001280*800
Brightness800nit800nit
Touch screen4-wire resistance4-wire resistance
WiFi/BTSupportedSupported
4G/5GSupportedNot supported
SSDSupportedSupported
RS2322 channels (debugging + communication)1 channel (default debugging)
RS4854 channels, isolation voltage 3500V DC2 channels, isolation
CAN-Bus3 channels, isolation voltage 2500V DCNot supported
Ethernet2 GigE ports + 1 GigE ports2 GigE ports
USB2.01 A port1 A port
USB3.01 A port1 A port
Type-C1 channel (sharing USB3.0)1 channel (sharing USB3.0)
HDMI1-channel standard A-type female connector1-channel standard A-type female connector
Audio3.5mm headphone jack3.5mm headphone jack
TF card1 channel1 channel
Nano SIM 卡1 channelNot supported
DO8 channels (relay isolation)2 channels (relay isolation)
DI8 channels (5 wet contacts +3 dry contacts)2 channels (wet contact)
RTC clockSupportedSupported
Independent watchdogSupportedSupported
Power failure detectionSupportedSupported
Duration after power failureSupportedSupported
Operating voltage9V~24V DC9V~24V DC
Dimensions255*169*70.5mm255*169*57.5mm
Operating Temperature-20°C ~+70°C-20°C ~+70°C
Purchase linkTaobao TmallTaobao Tmall

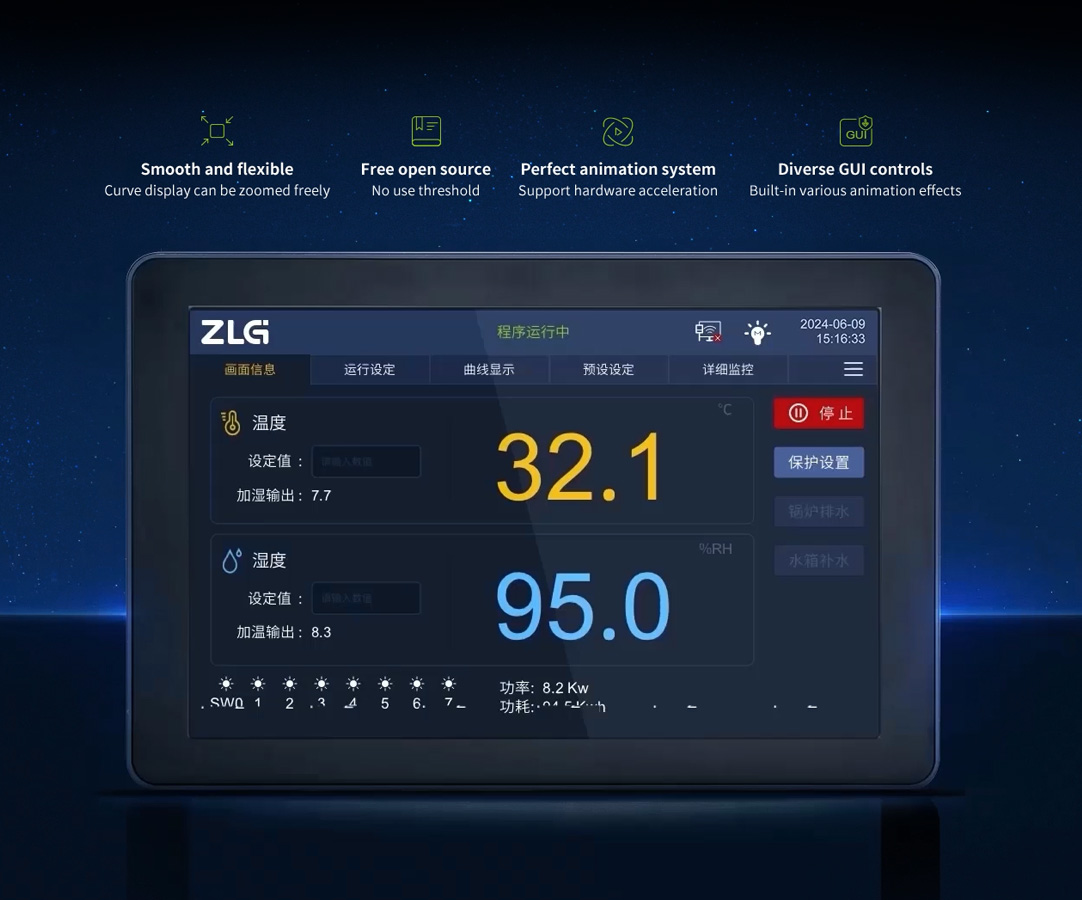

Open source GUl engine brings extraordinary interaction experience

High-performance display control unit ZPC series is equipped with AWTK open source GUI engine independently developed by Zhiyuan Electronics. AWTK is developed based on C language, which aims to provide users with a powerful, efficient and reliable GUI engine with high fluency and good interaction effect and creatively supports cross-platform synchronous development to realize one-time programming for lifetime use.

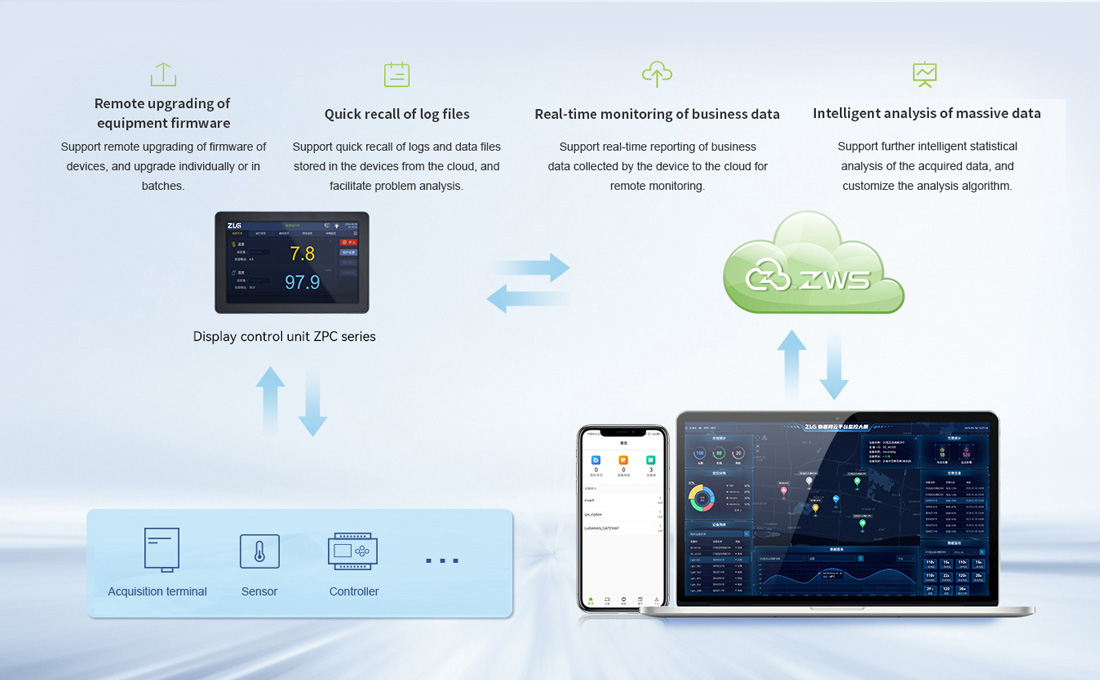

Support ZWS IoT cloud platform, and quickly realize intelligent system upgrade

Based on the ZWS IoT cloud platform independently developed by Zhiyuan Electronics, the device can be intelligently upgraded, and it supports such functions as remote upgrading of firmware, quick recall of log files, business data monitoring, visual presentation of configuration, and analysis of massive data.

Learn more

Integrate multiple industrial communication protocols to make industrial interconnection easier

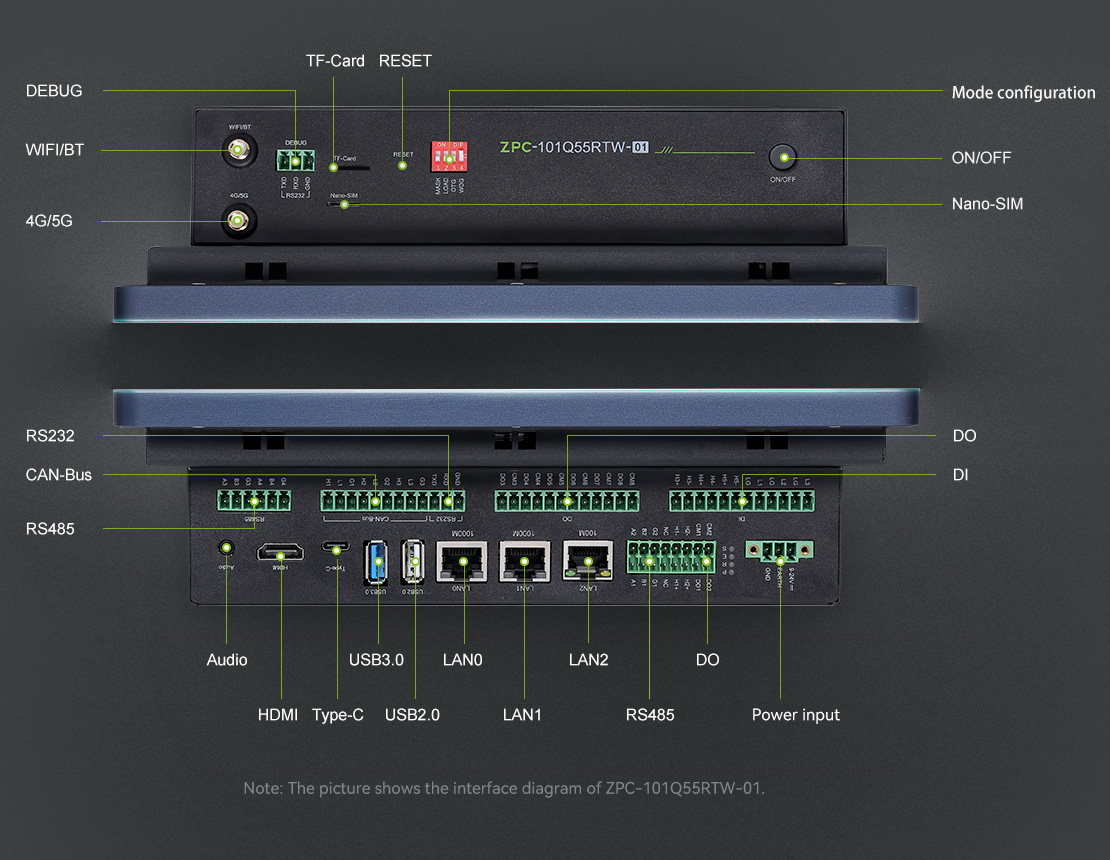

Massive peripherals for free connection

The product integrates isolation RS485 and RS232, isolation CAN and USB, Ethernet and other peripherals, and supports optional 4G/5G and SSD mass storage to meet the requirements of different application scenarios.

IP54 protection for secure use

The display panel of the product has passed the GB/T 4208-2017 test, has IP54 dustproof and waterproof grade, and makes your product use more secure.

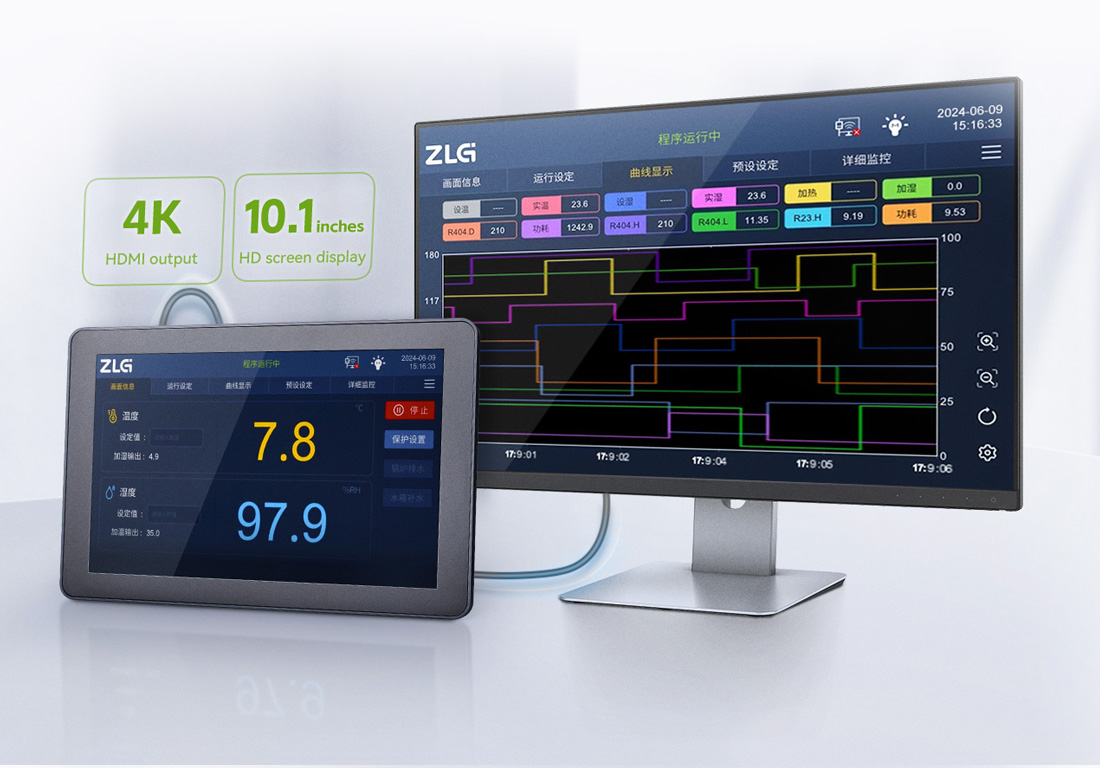

Unlimited vision, wonderfulness on both sides

High-performance display control unit ZPC series supports HDMI output 4K@60fps display. With the self-equipped 10.1-inch HD screen, it can realize dual-screen display, which is wonderful on both sides!

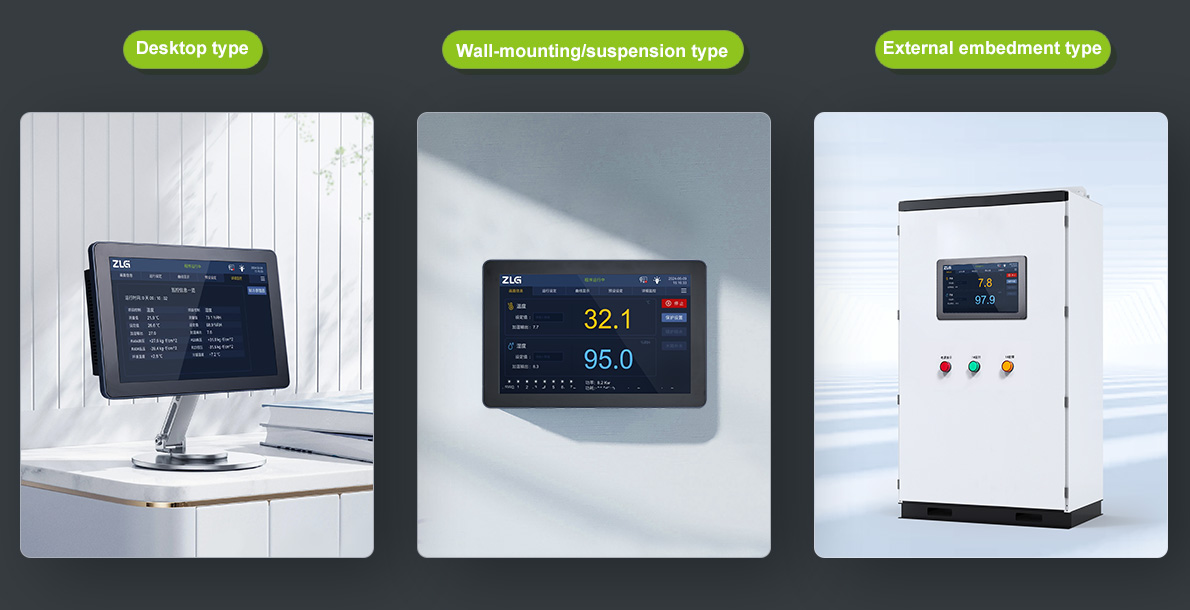

Various mounting modes meet all kinds of scenarios

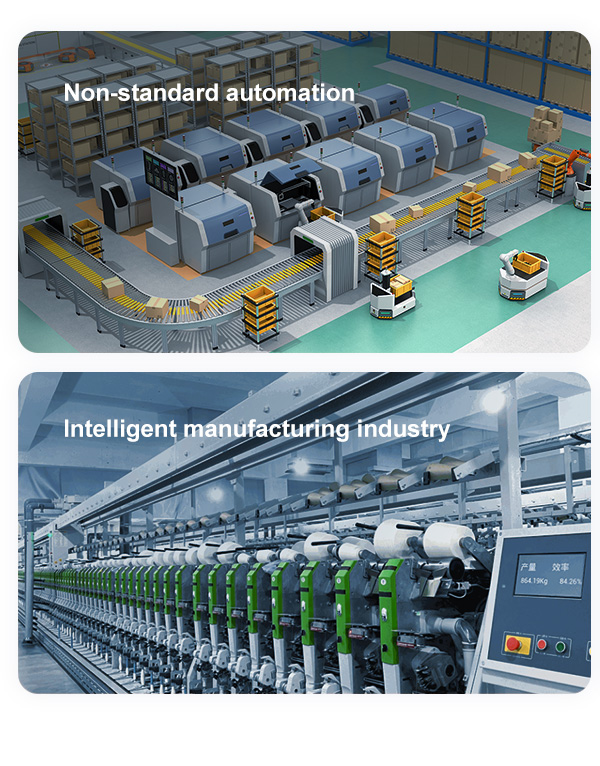

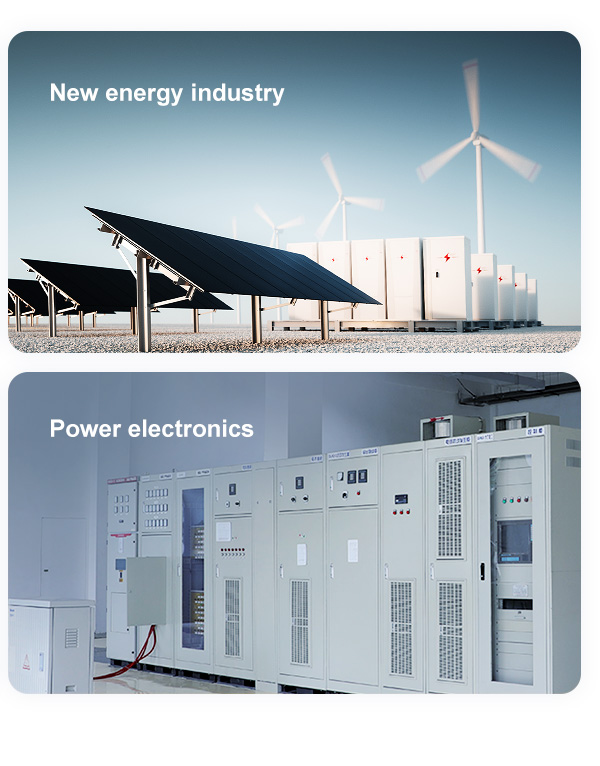

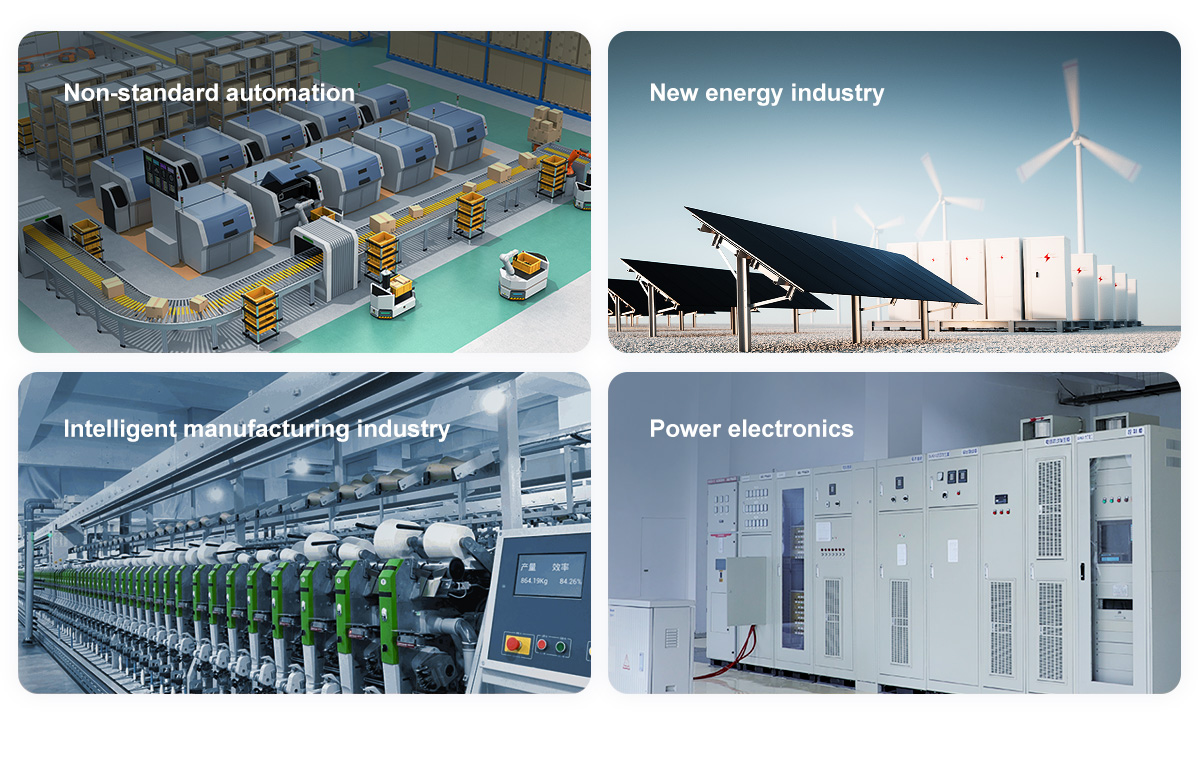

Industry application
