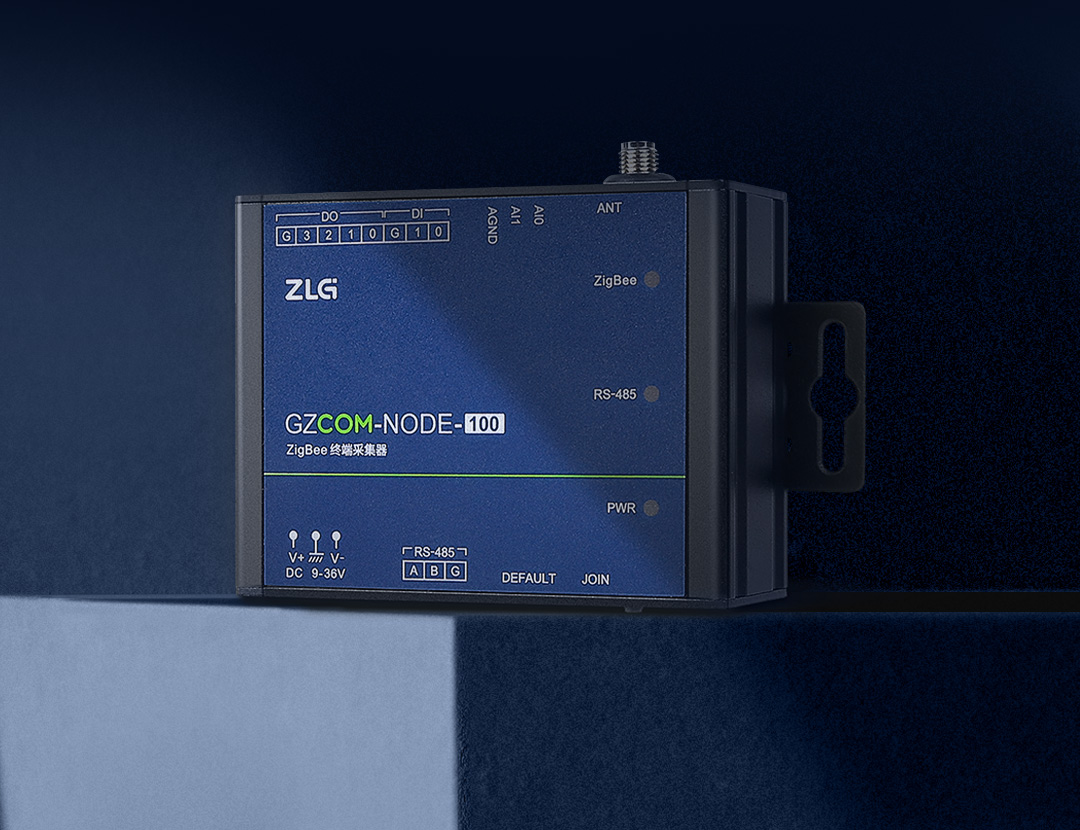

New-generation high-performance compact ZigBee terminal collector

GZCOM-NODE-100

Parameter List

ItemDescription
ZigBeeProtocolZLG Mesh
Frequency band2400~2483.5MHz
Transmitting power-30 ~ 20dBm
AntennaSucker antenna/rod antenna (2.4GHz)
RS-485Baud rate2400~115200bps
DI/DODI input levelLow level 0~2.0V, high level 2.5~24V
DO load (Max)Maximum load voltage: 30V, maximum load current: 5A
ADCAcquisition accuracy12-bit ADC, maximum recognizable voltage: 36V
Button DEFFactory reset
JOINWireless networking function
Indicator lightState indicator lightPower indicator light, RS-485 communication function light, ZigBee communication function light
TemperatureOperating temperature-40℃~85℃
Storage temperature-40℃~85℃
Humidity Operating temperature10%~95%RH (no frosting)
Storage humidity10%~95%RH (no frosting)
Power supplySupply voltageDC 9~36V
Working current (Max)9V/200mA
VolumeDimension84.0mm×63.0mm×30.0mm

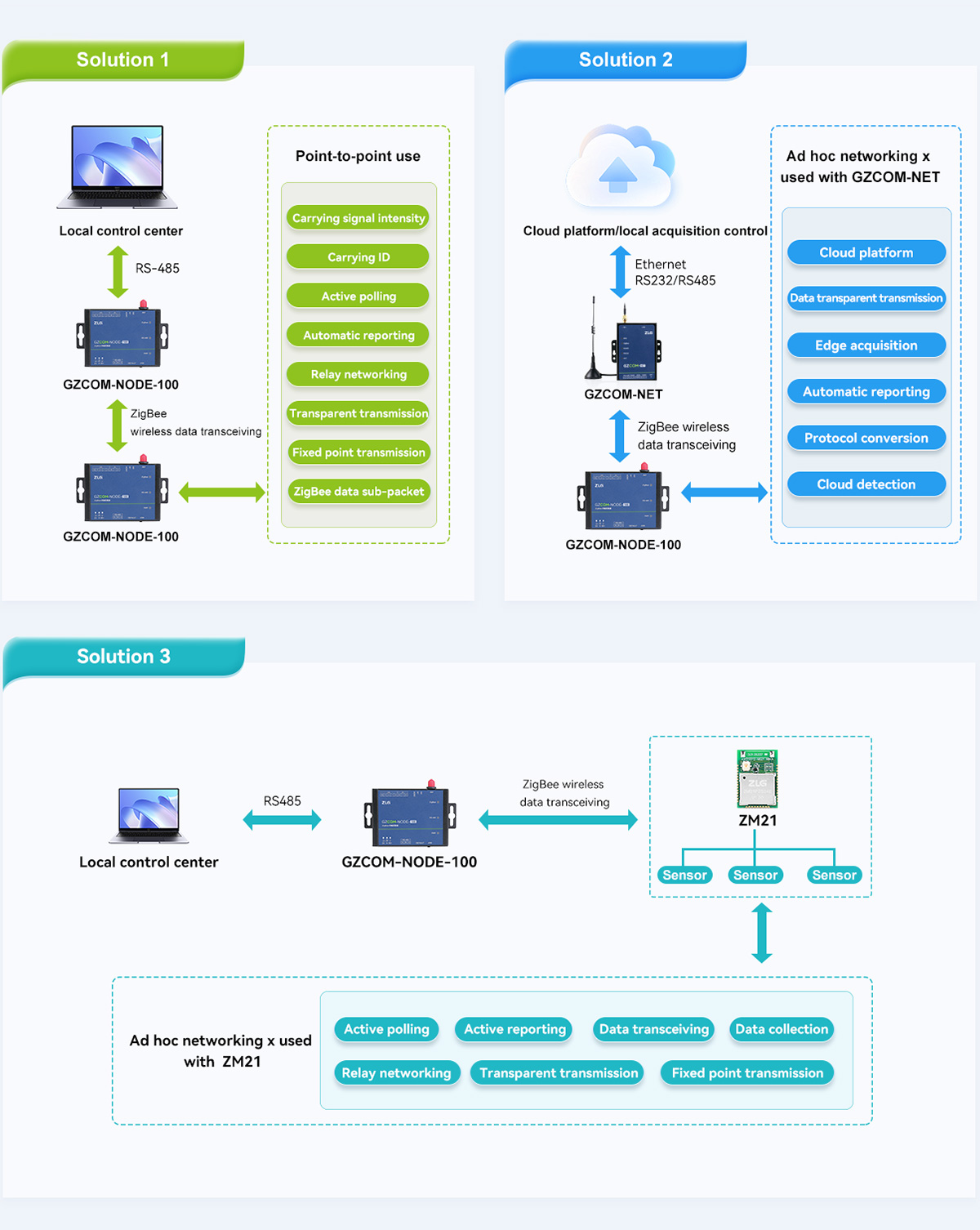

Product application solutions

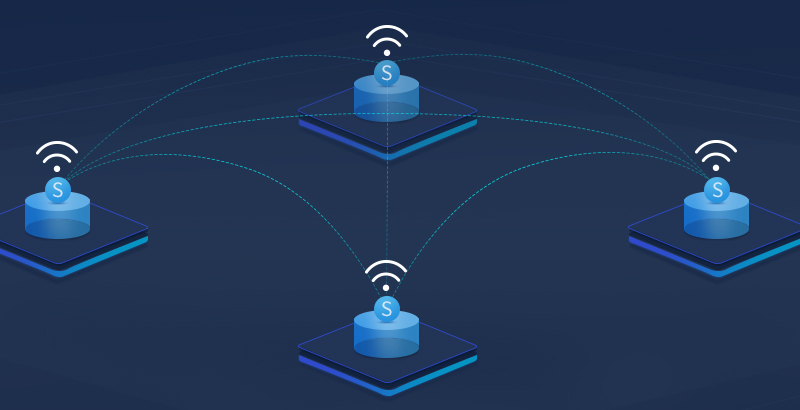

Powerful Mesh networking capability

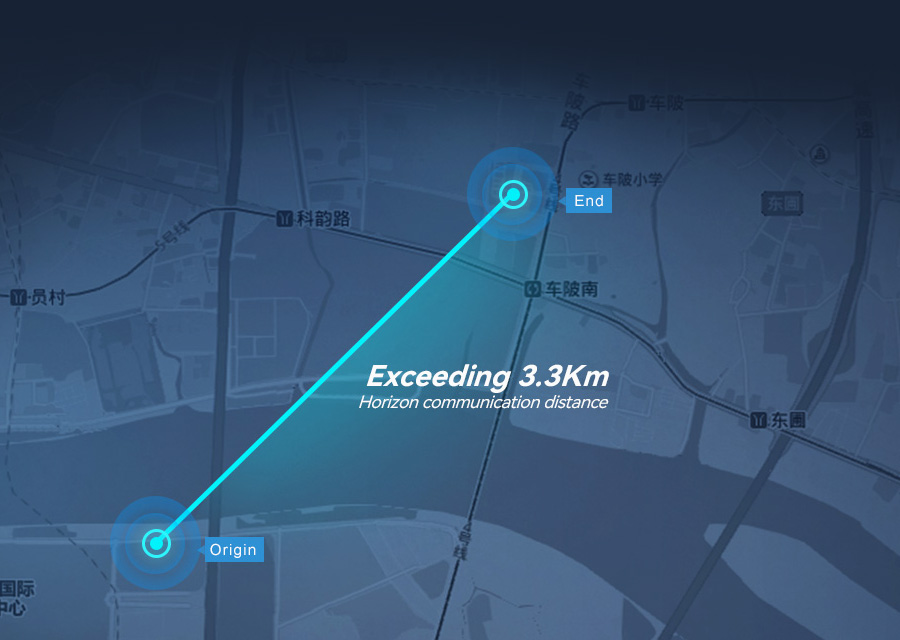

Long distance communication

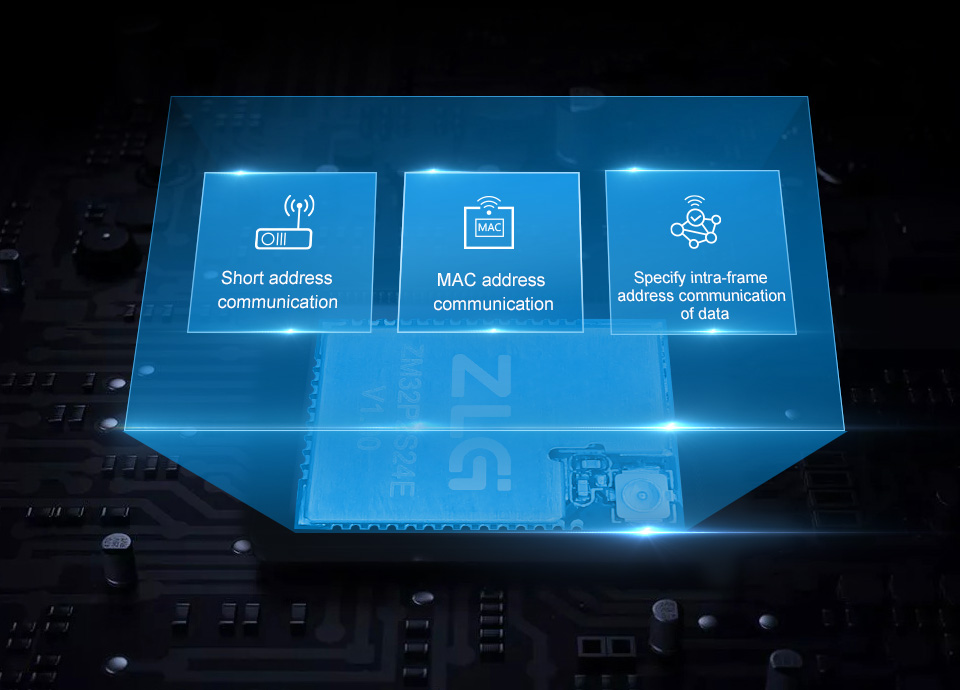

Multiple communication modes can be switched dynamically

Data encryption ensures transmission security

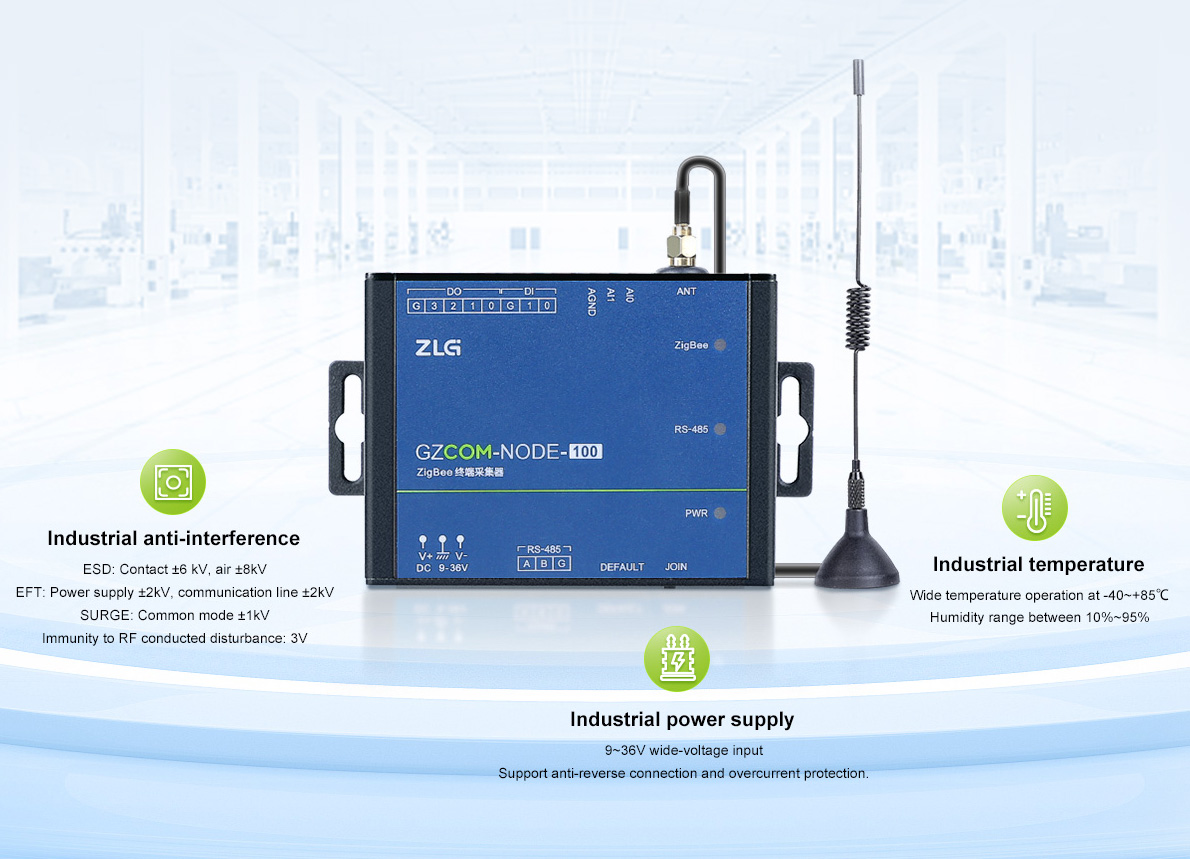

Reliability design at industrial grade

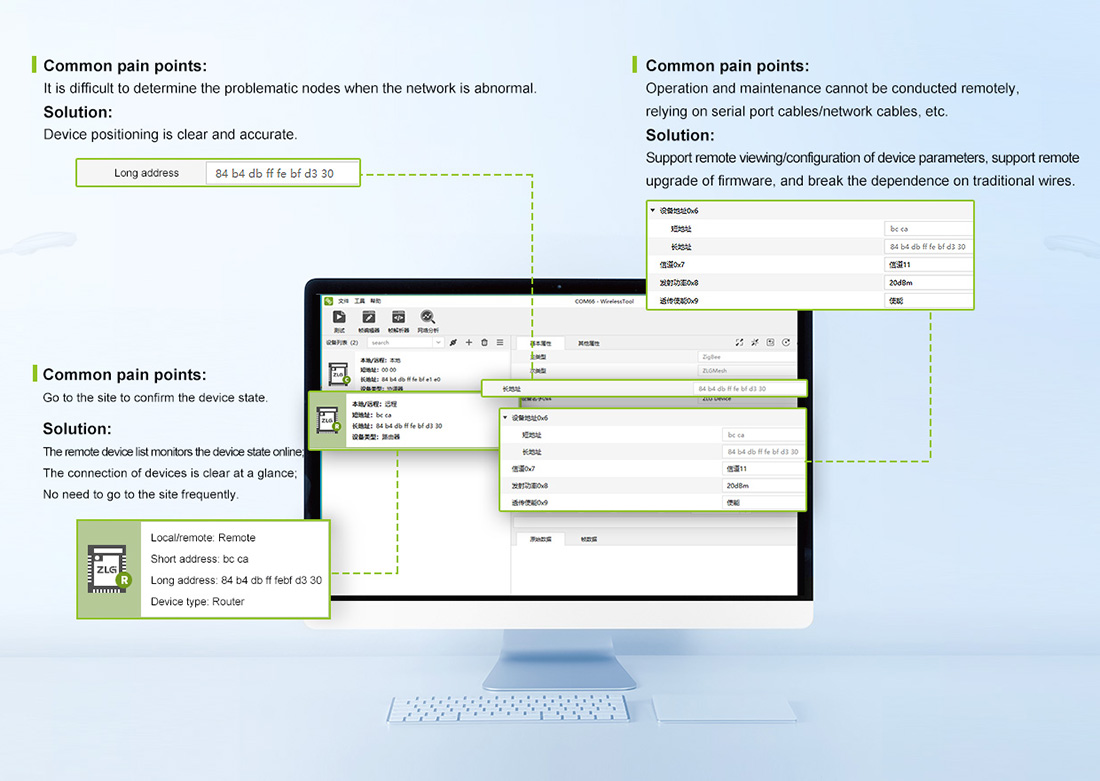

Conduct in-depth research on application scenarios to effectively solve customer pain points

The host supports searching the mac addresses of the nodes that have been networked, helping customers quickly locate abnormal nodes.

Industry application
