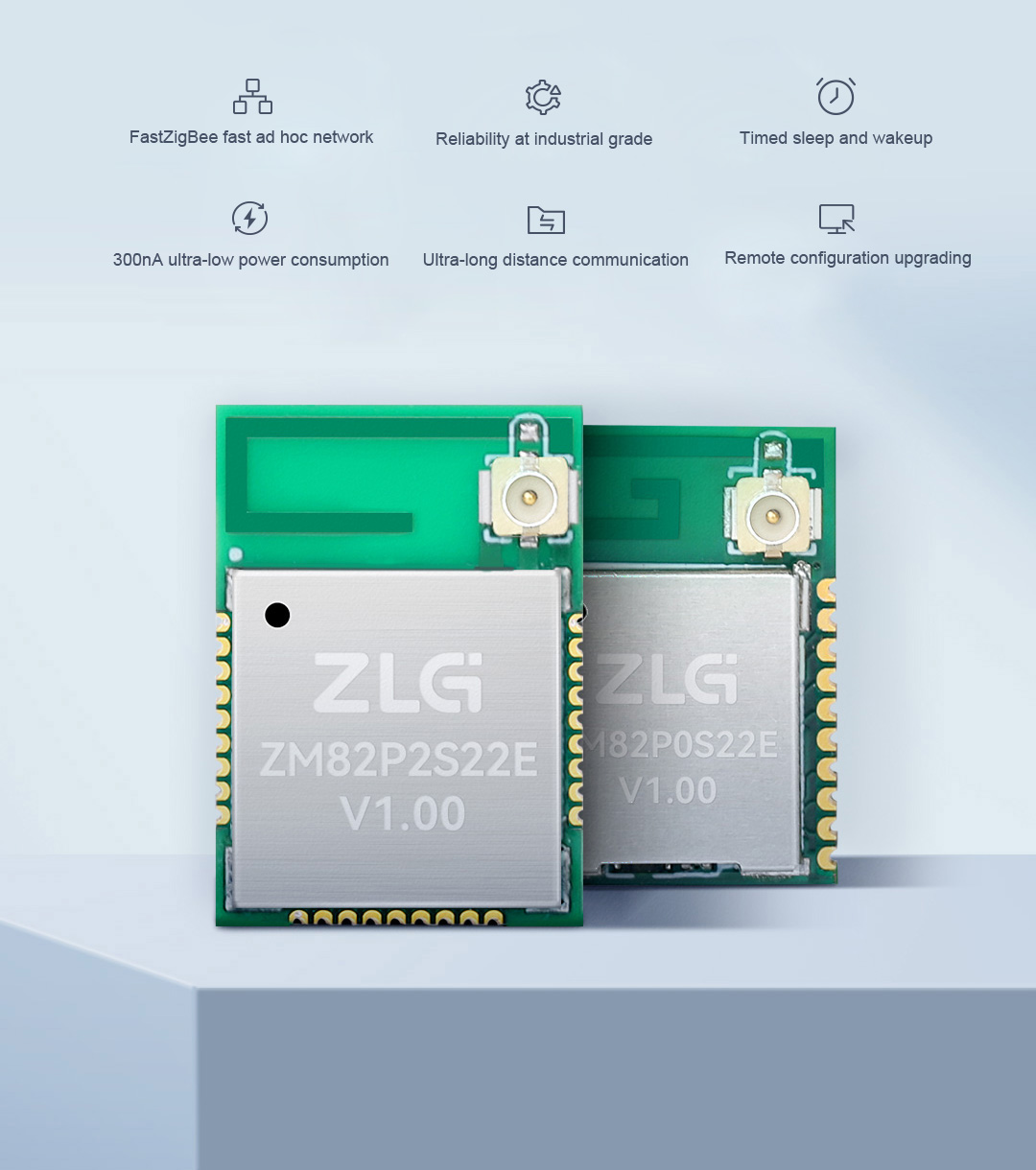

ZM82 series domestic ZigBee module
ZM82 series module is a domestic ZigBee module with low power consumption and high performance developed by Zhiyuan Electronics. The product adopts star networking mode, which supports serial transparent transmission, AT instruction, OTA, timed sleep and wakeup, etc. With industrial performance design, it is widely applied in industrial control, light control and lighting, intelligent door locks, smart buildings and other scenarios.
Selection Table
| Product model | ZM82P0S22E | ZM82P0S22P | ZM82P2S22E | ZM82P2S22P | ZM82P2S22S |
|---|---|---|---|---|---|
| Networking protocol | FastZigBee | FastZigBee | FastZigBee | FastZigBee | FastZigBee |
| Operating frequency band | 2402~2480MHz | 2402~2480MHz | 2402~2480MHz | 2402~2480MHz | 2402~2480MHz |
| Transmitting power | 12dBm | 12dBm | 21dBm | 21dBm | 21dBm |
| Receiving sensitivity | -98dBm | -98dBm | -102dBm | -102dBm | -102dBm |
| Antenna form | IPEX interface | PCB antenna | IPEX interface | PCB antenna | Stamp hole interface |
| Communication interface | UART | UART | UART | UART | UART |
| Operating temperature | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
| Product dimension | 17.0×12.0×2.1 | 17.0×12.0×2.1 | 19.0×13.5×2.3 | 19.0×13.5×2.3 | 19.0×13.5×2.3 |
| Packaging type | Winding | Winding | Winding | Winding | Winding |
| Minimum package | 1800 | 1800 | 850 | 850 | 850 |

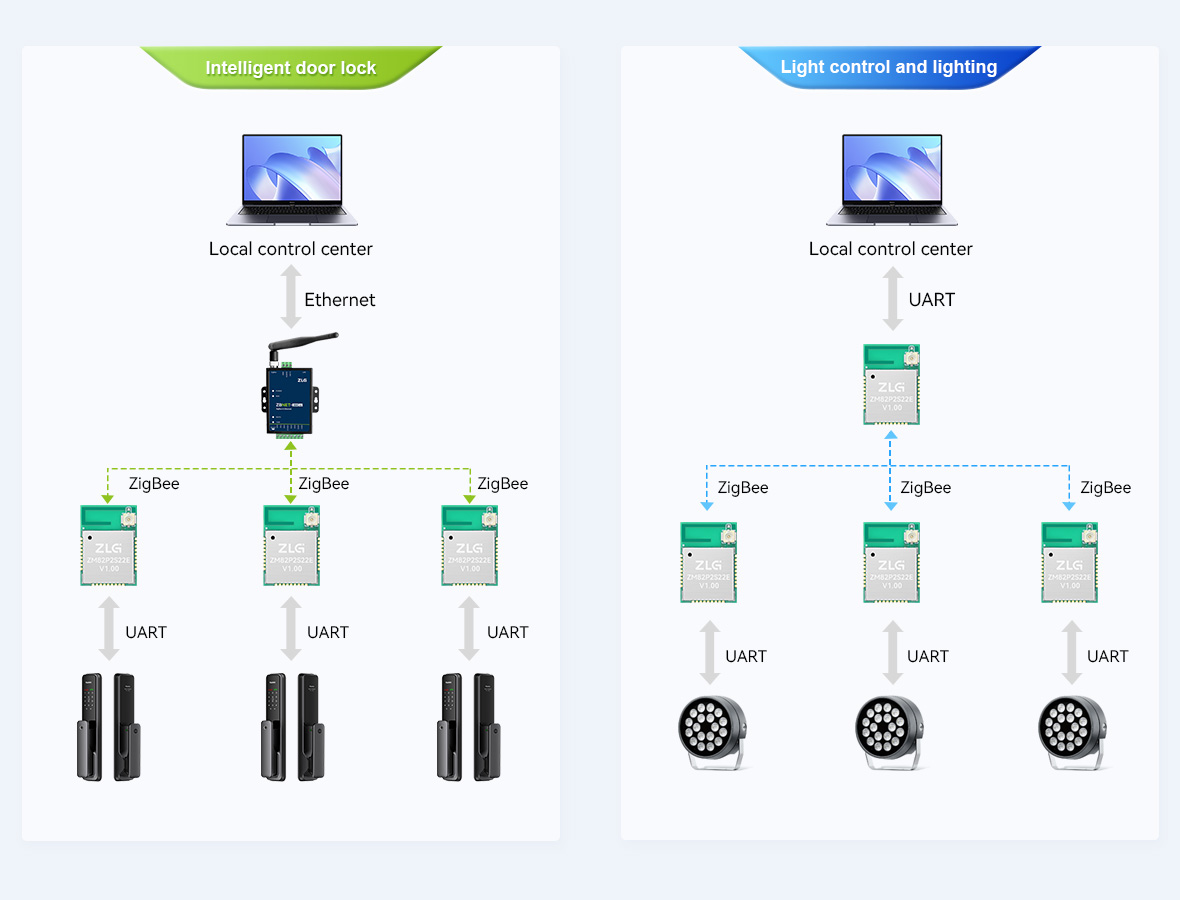

Product application schemes

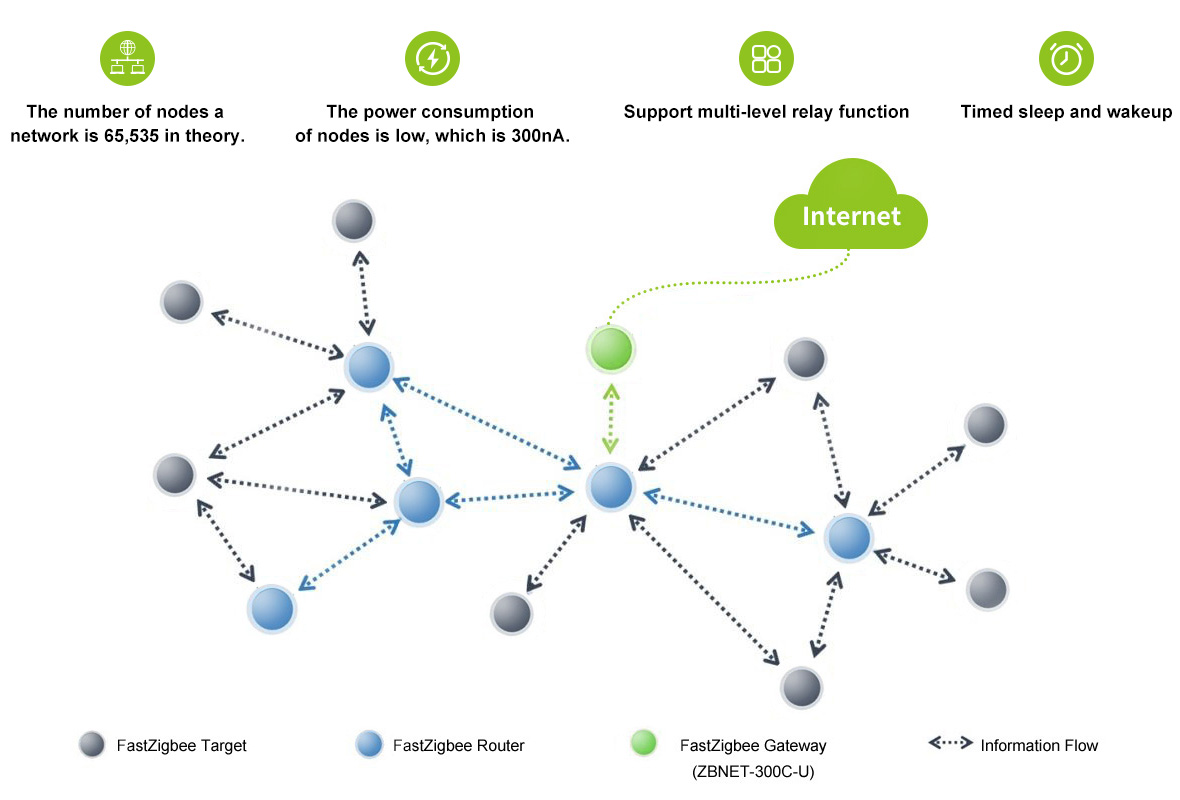

FastZigBee fast ad hoc network
ZM82 module adopts the FastZigBee networking protocol developed by Zhiyuan Electronics, which can build a variety of network topologies and support fast ad hoc network. It features simple and convenient use, flexible layout, high transmission efficiency, and stable network performance.
Serial transparent transmission

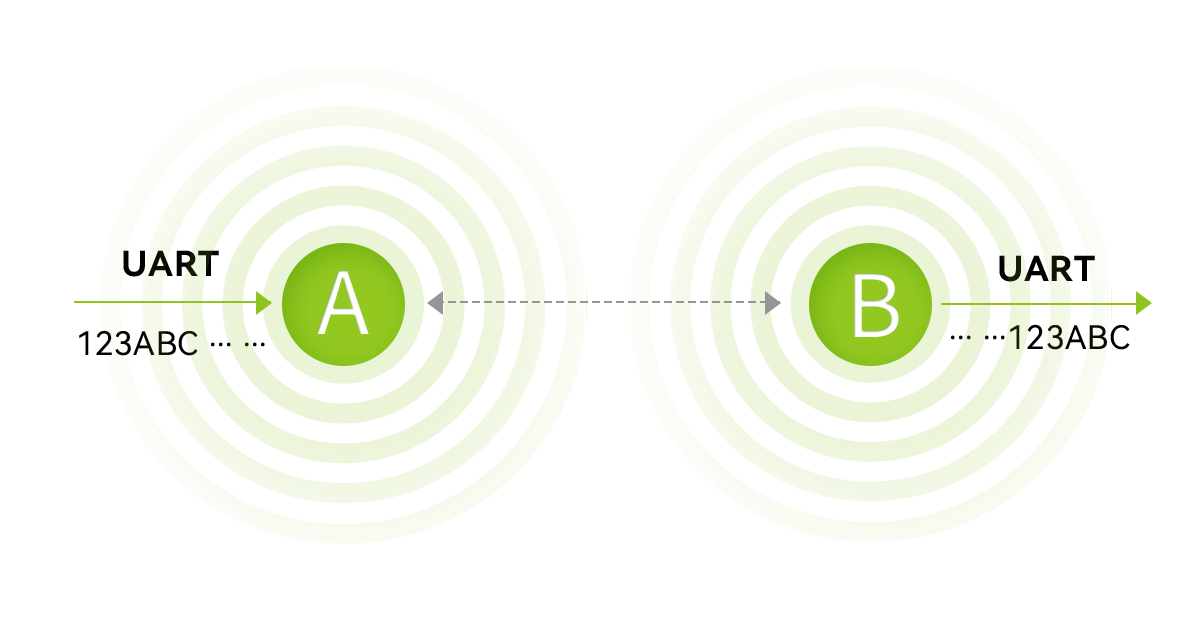

FastZigbee adopts fully transparent transmission mode. The content and length of the data sent by the sender are exactly the same as those received by the receiver. This is equivalent to an invisible transmission line. On this basis, you can create your own protocol format, which is fast and flexible.

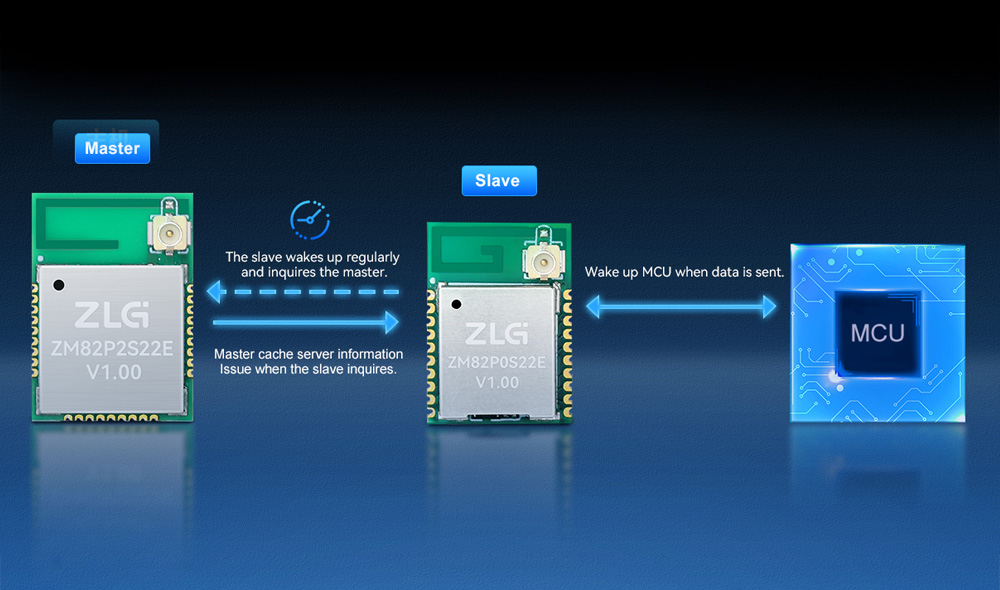

Timed sleep and wakeup
ZM82 module supports the timed sleep and wakeup of nodes. You can flexibly set the wakeup interval and remotely wake up the master device on demand.

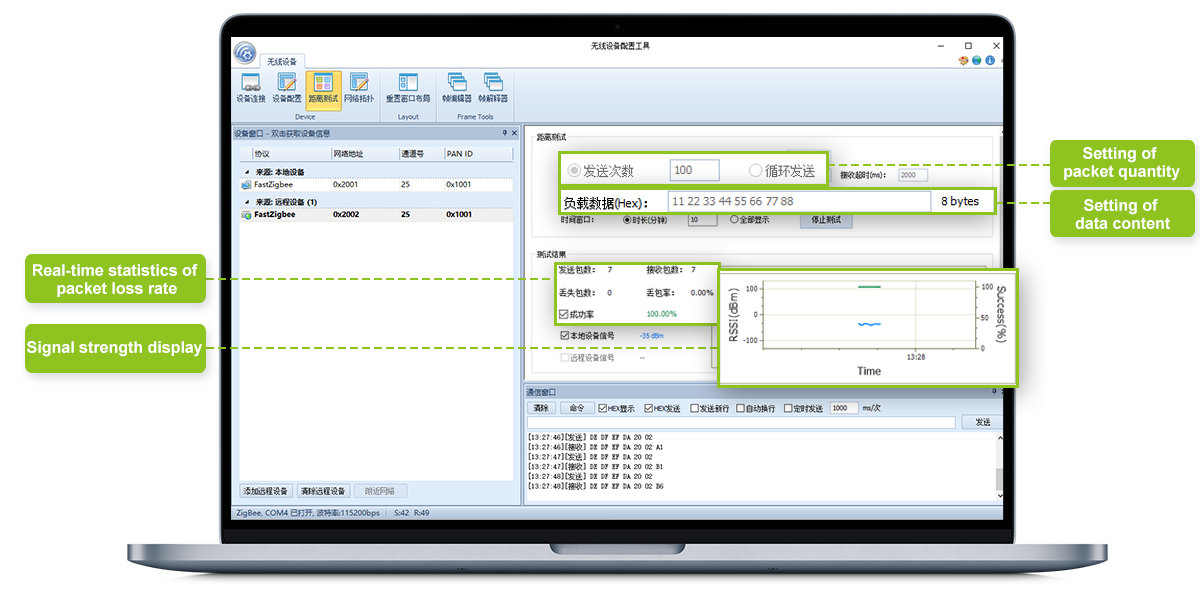

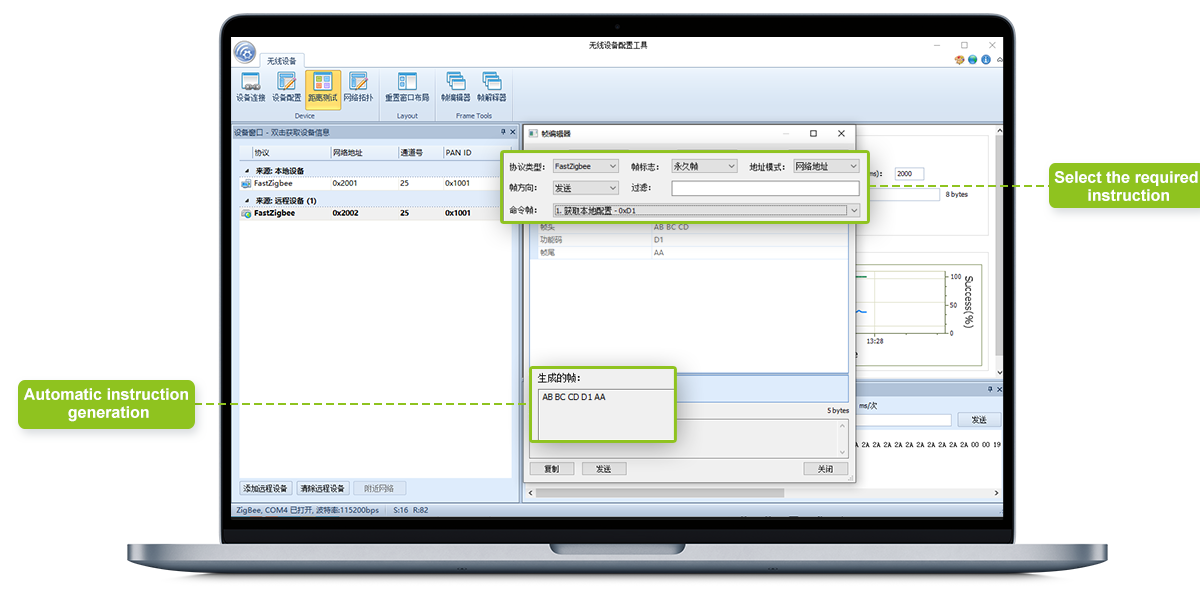

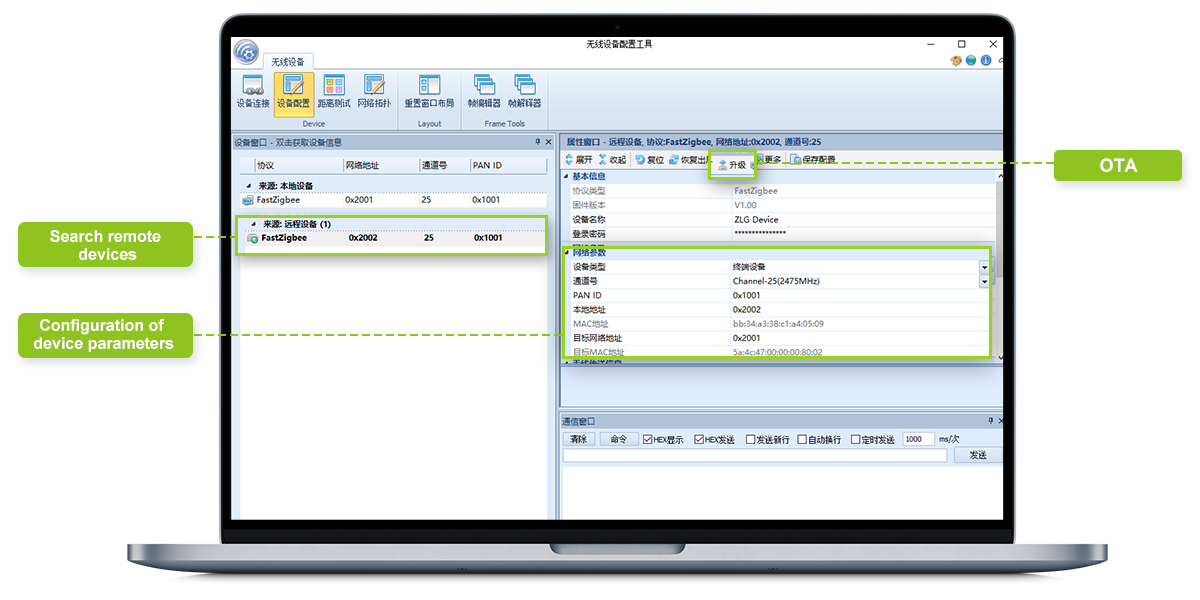

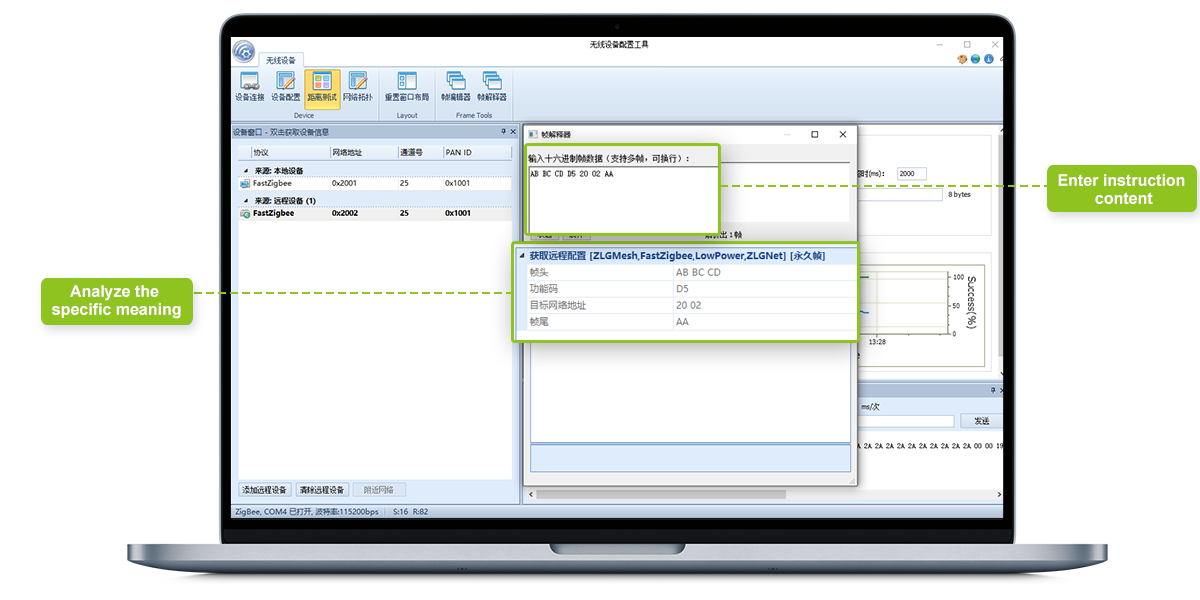

Powerful wireless configuration tool
Device configuration, distance test, OTA, instruction generation/analysis, and complete functions.

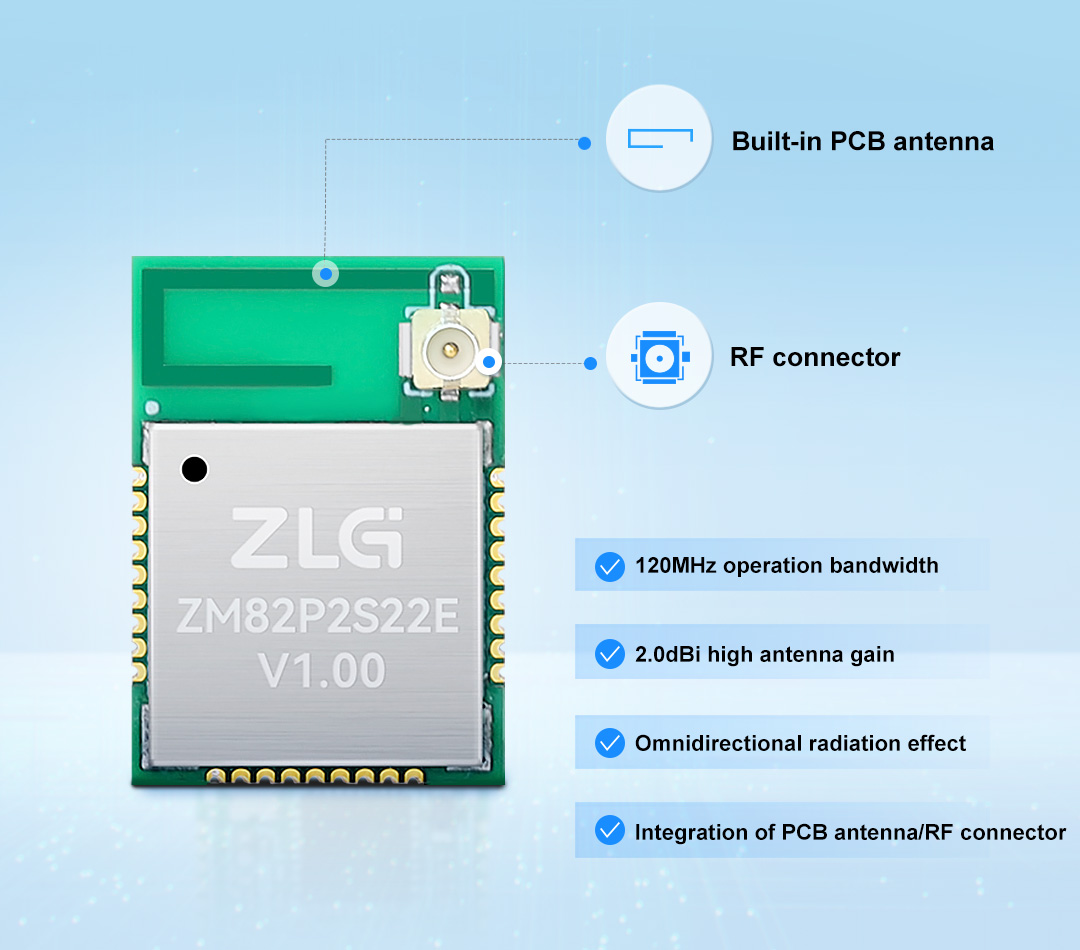

Integrated antenna design

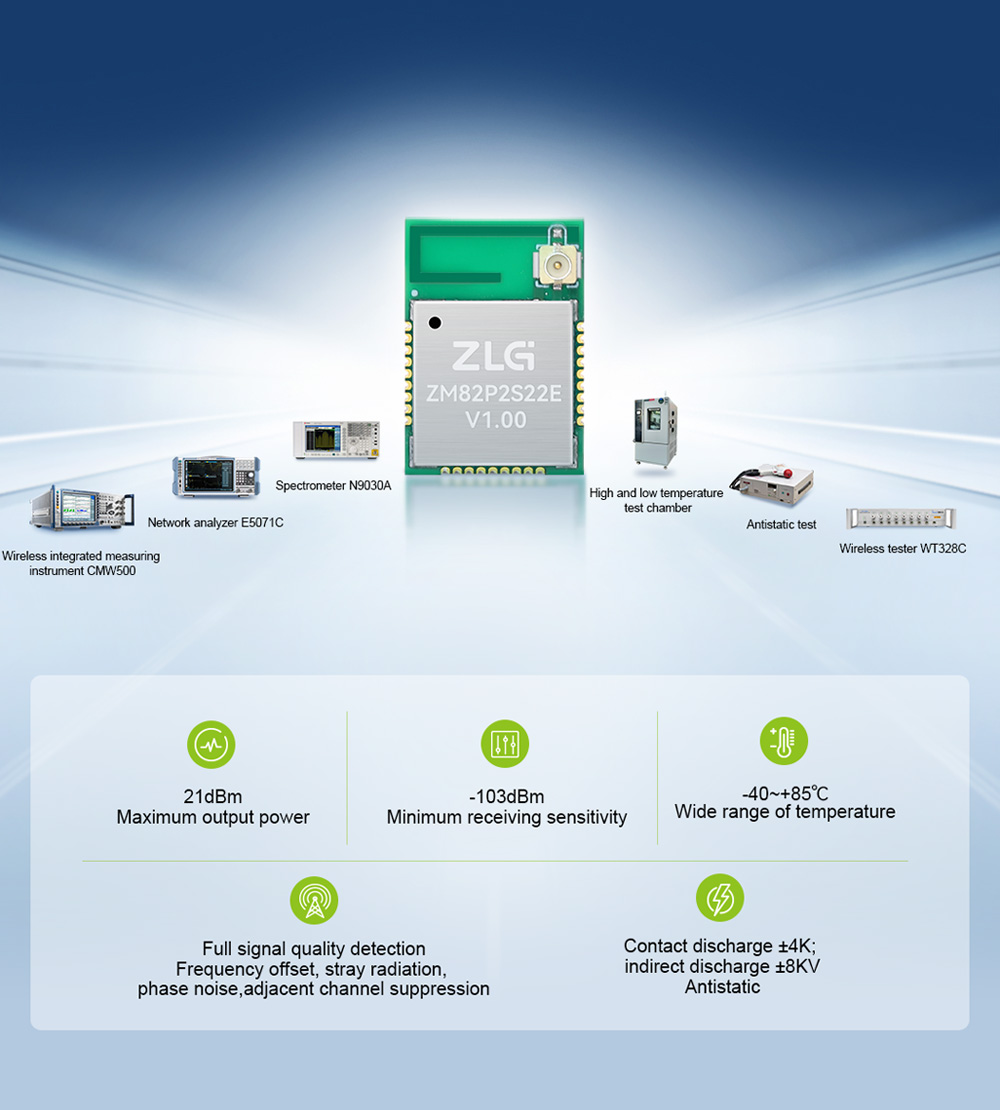

The product is specially created by professional RF team. With the integrated design of high-performance PCB antenna and RF connector, it can achieve high performance even if it is in small size.

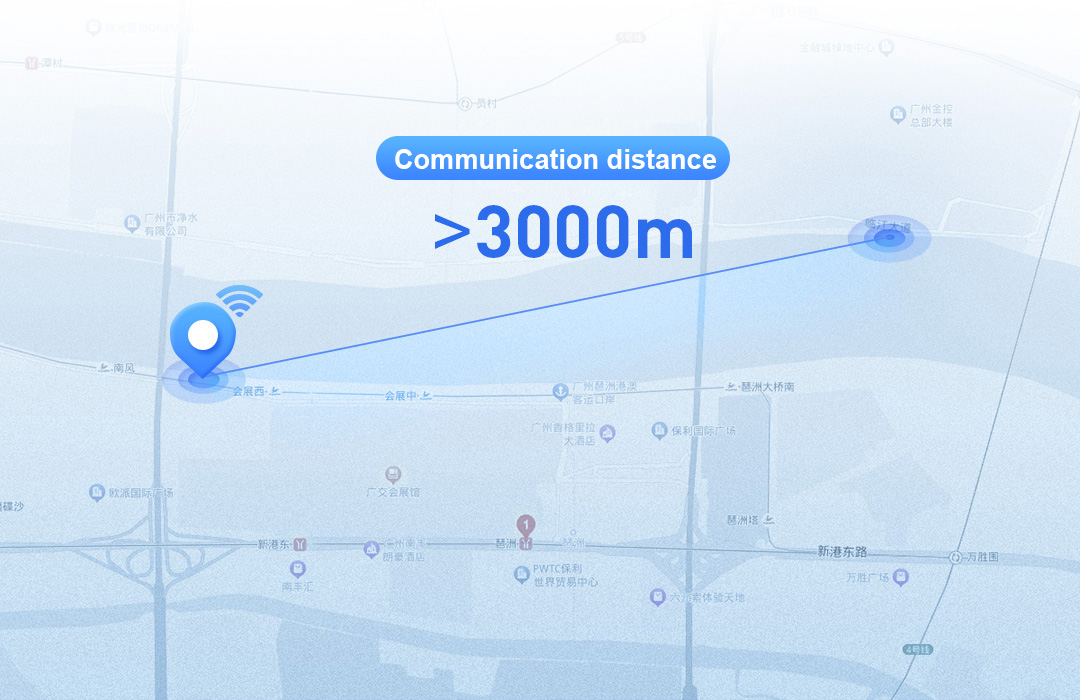

Details make Zhiyuan “go further”
ZM82 module has been elaborately created by Zhiyuan’s professional RF team, and it has excellent RF performance. In an open environment, the communication distance can reach over 3km.
300nA ultra-low power consumption

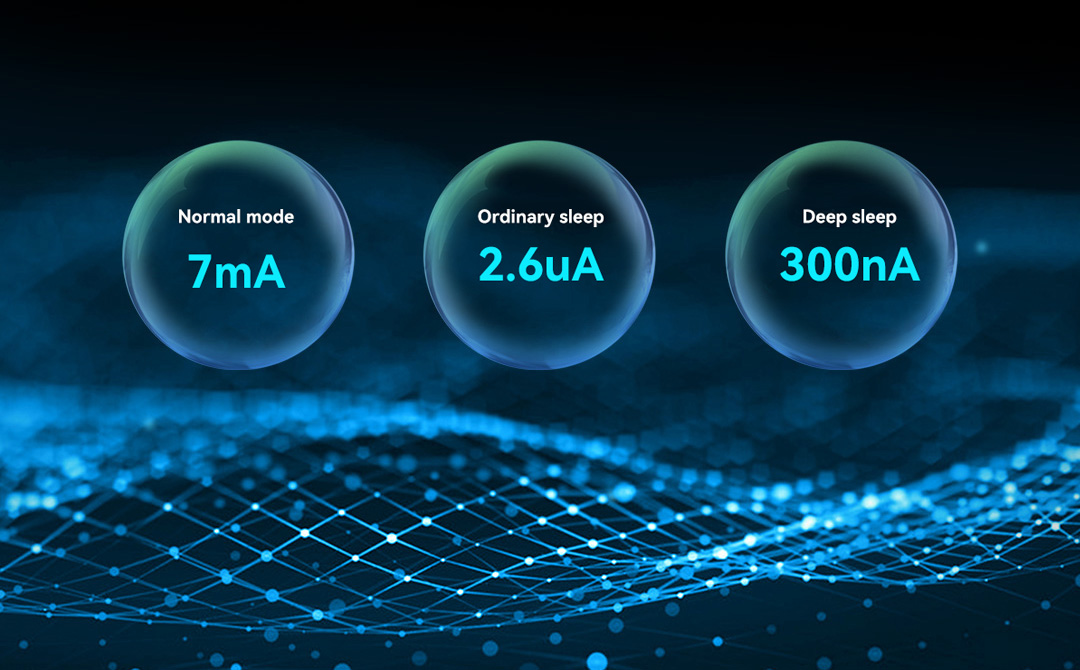

Domestic ZigBee chip scheme and two low power consumption modes are provided. The lowest power consumption is 300nA. It can easily meet the low power consumption demand.
Quality at industrial grade
Industry application
