USBCANFD series CAN FD interface card
CAN FD (CAN Flexible Data-rate), the latest upgrade of CAN bus, has a maximum data length of 64 bytes and a flexible data field baud rate up to 5 Mbps (8 Mbps for some devices in laboratory environments).

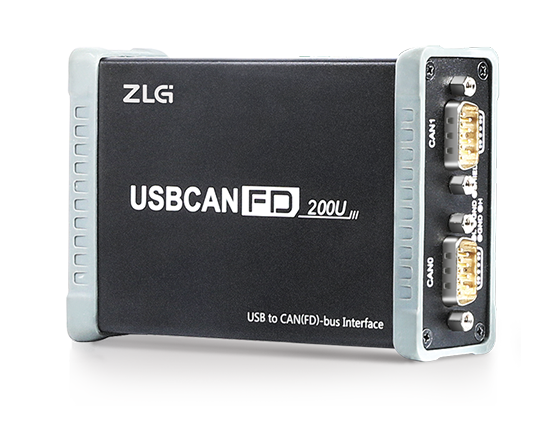

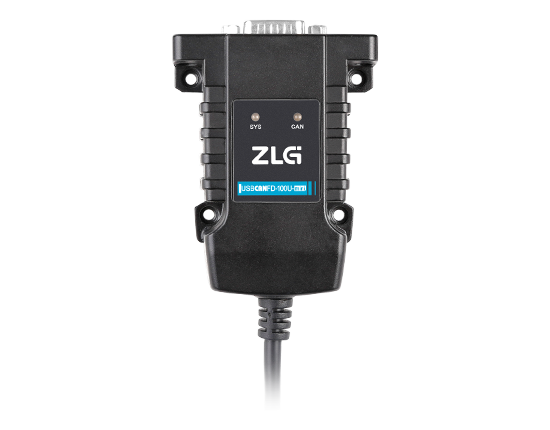

USBCANFD series product, a high-performance CAN FD interface card developed by Zhiyuan Electronics, integrates 1-8 CANFD interfaces, and supports ISO CAN FD and BoschCANFD. Each interface has an independent 2500VDC electrical isolation protection circuit to prevent the interface card from being damaged by ground circulation and enhance the system reliability in a harsh environment.
The PC is connected to the USBCANFD interface card through the USB 2.0 port, so that it can exchange data with the CAN(FD) network to form a CAN(FD)-bus control node. The USBCANFD interface card supports Windows and Linux operating systems, and comes standard with ZXDoc and ZCANPRO software. It also provides a secondary development library, so users can call library functions to develop software. It is a powerful tool for the development and data analysis of CAN(FD)-bus products.
Selection Table
Please drag the table horizontally (left or right) to view.
Note: * In the case of single channel with 5Mbps and 0 byte data field.
Support 8-channel CAN FD simultaneously

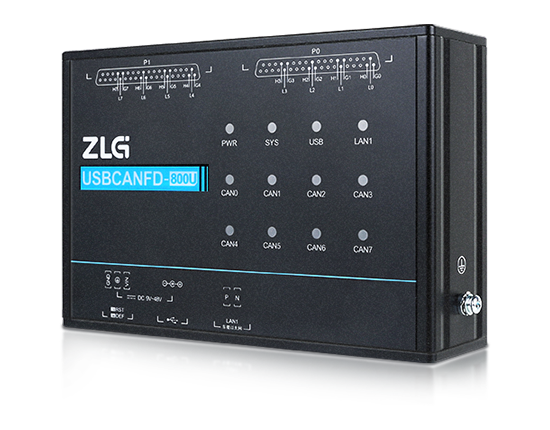

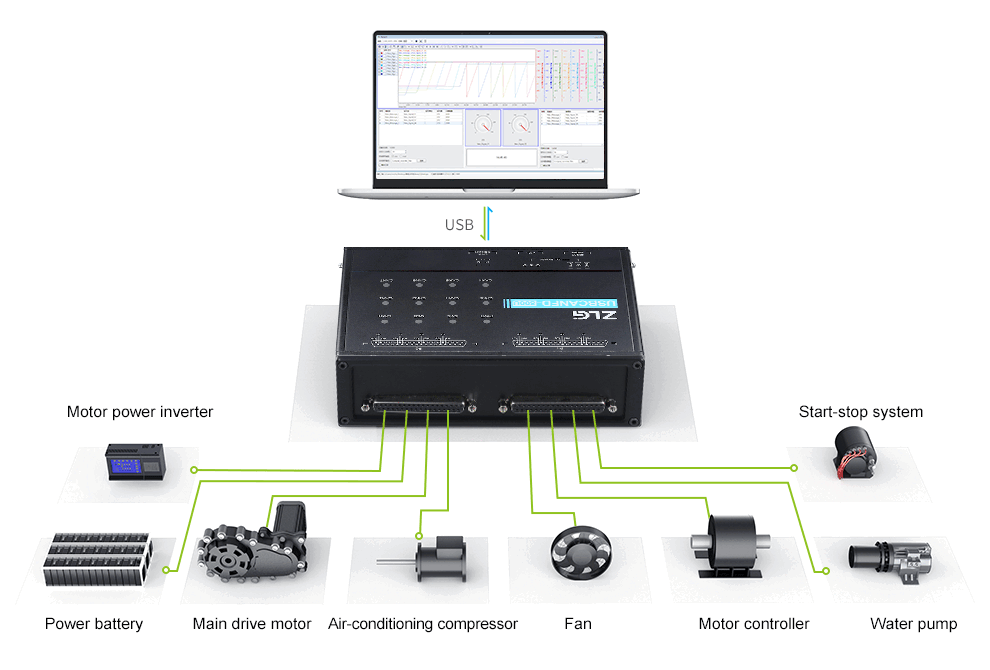

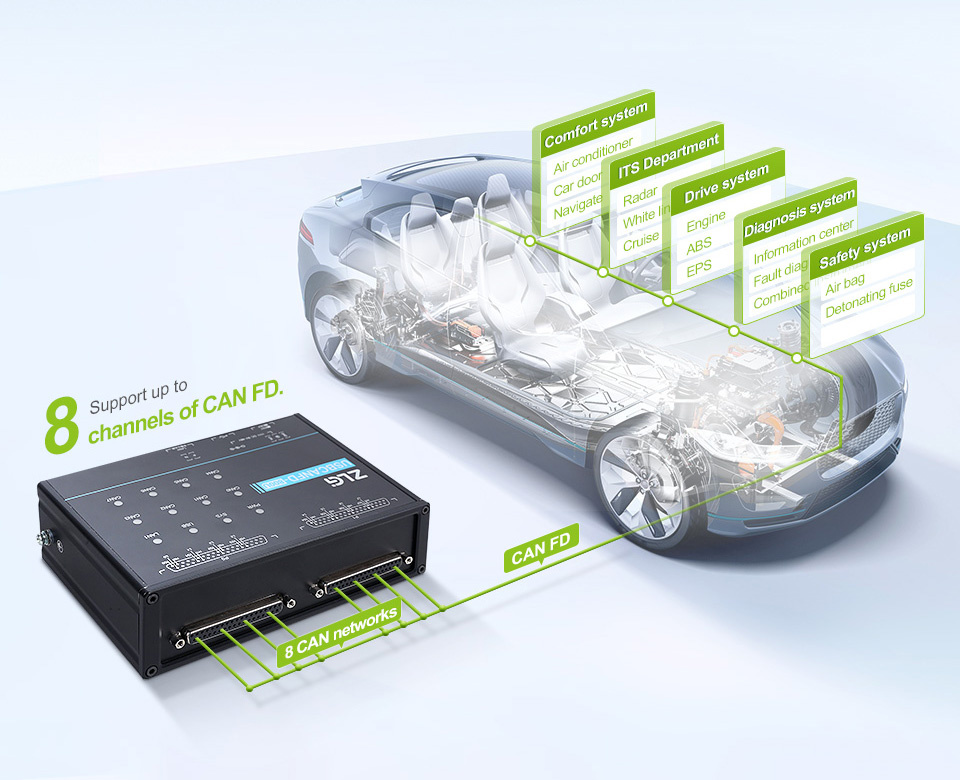

USBCANFD-800U is connected to the CAN FD network through USB. It can synchronously monitor and collect the data of 8-channel CAN FD buses at most and, coordinate with the integrated analysis process of the upper computer, and conduct in-depth diagnosis and analysis on the vehicle bus. It makes automobile engineering simple.
CAN FD+LIN, a bonus pack

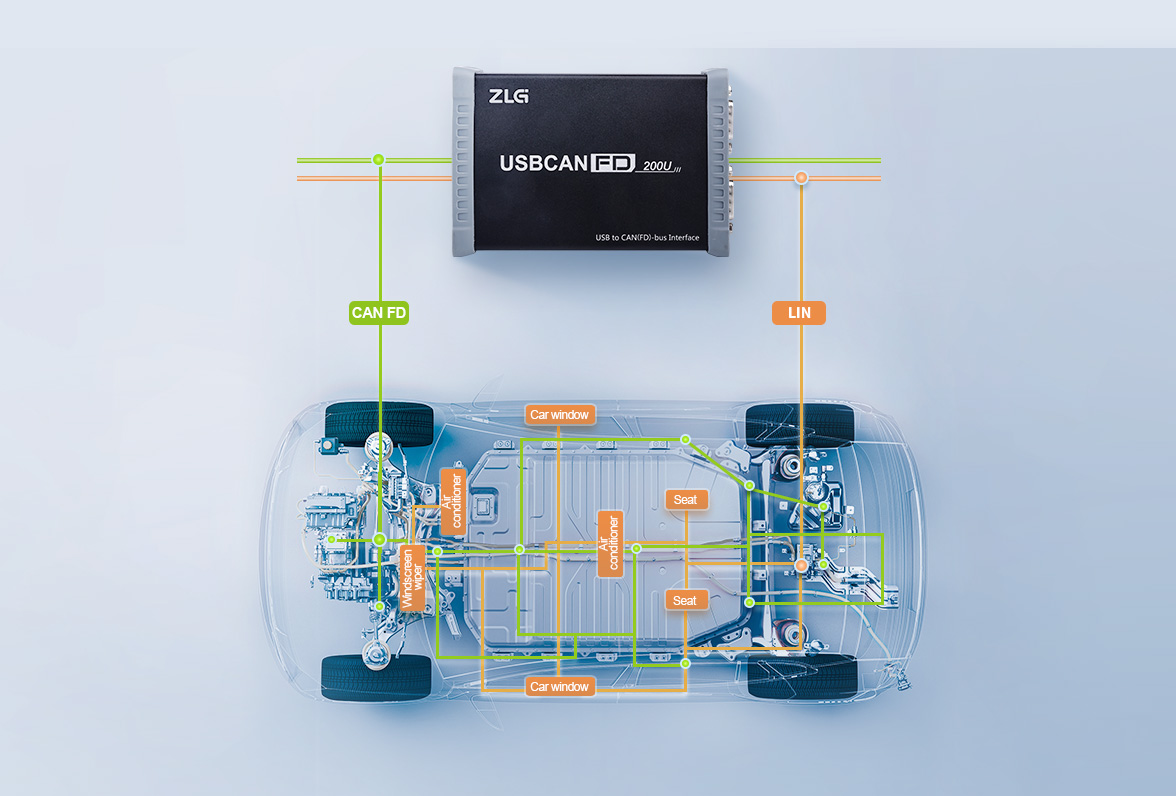

The new version of USBCANFD-200U adds two LIN bus interfaces, and meets the requirements of automotive electronic users for LIN bus test. It can realize configuration of master and slave stations, data transceiving and dispatch list test, making automobile test simpler.

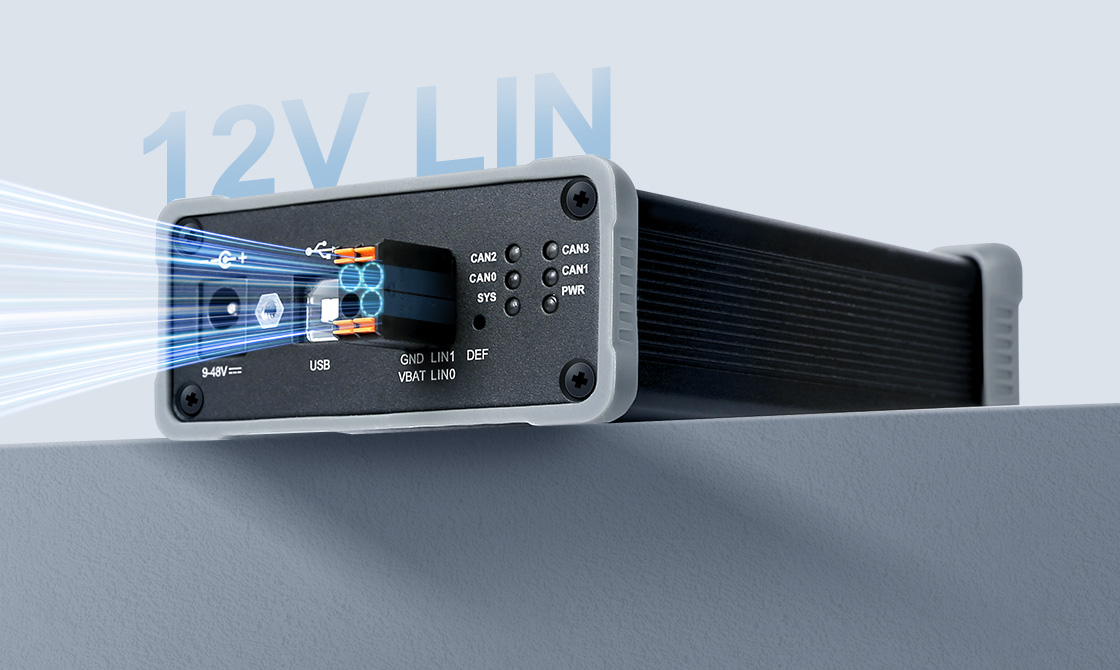

Built-in 12V LIN interface, stable power supply guaranteed

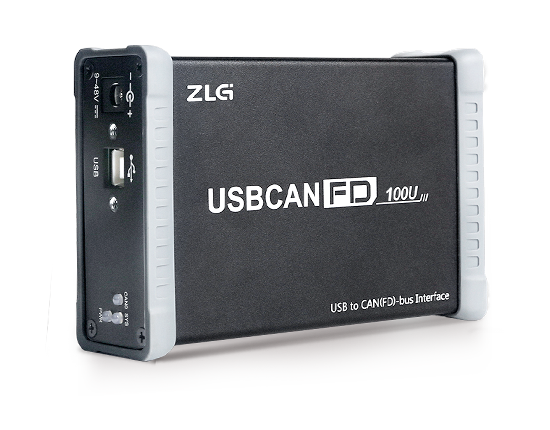

Starting from USBCANFD-100U V1.04 and USBCANFD-200U V1.05, the device comes with a built-in 12V power supply for the LIN interface. It is powered via USB and requires no external power source, making it convenient for on-site testing.
Worry-free full load, real-time stability
USBCANFD-800U adopts innovative Arm®+FPGA architecture, which perfectly combines the software programmability of processor and the hardware programmability of FPGA. Even in the case of full load test, it can better guarantee the real-time and stability and meet the requirements of most user scenarios.
Flow load monitoring, providing bus security

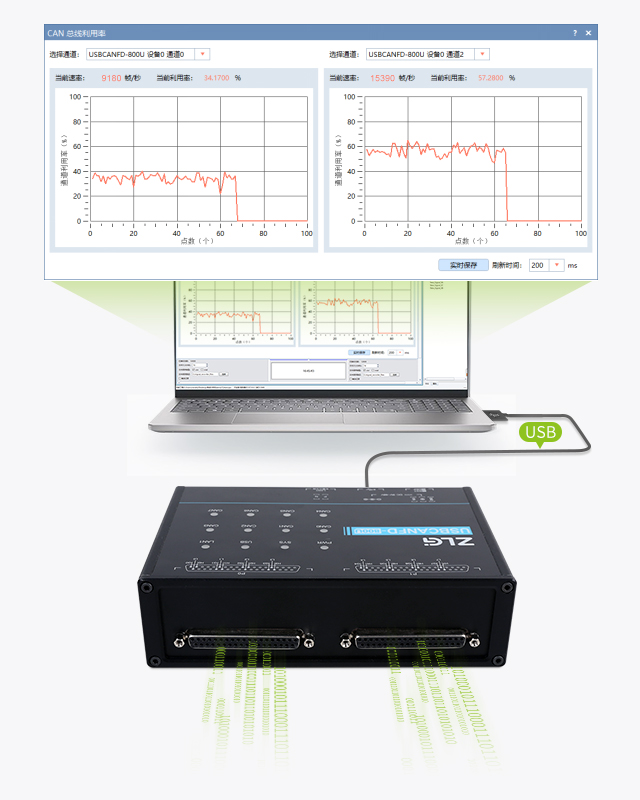

USBCANFD-800U supports real-time reporting of bus utilization. After configuring ZXDoc/ZCANPRO software, users can read the bus load rate through the hardware device, accurately grasp the bus load information, and prevent abnormal intrusion.
Support high-speed CAN FD and CAN2.0A/B data communication simultaneously

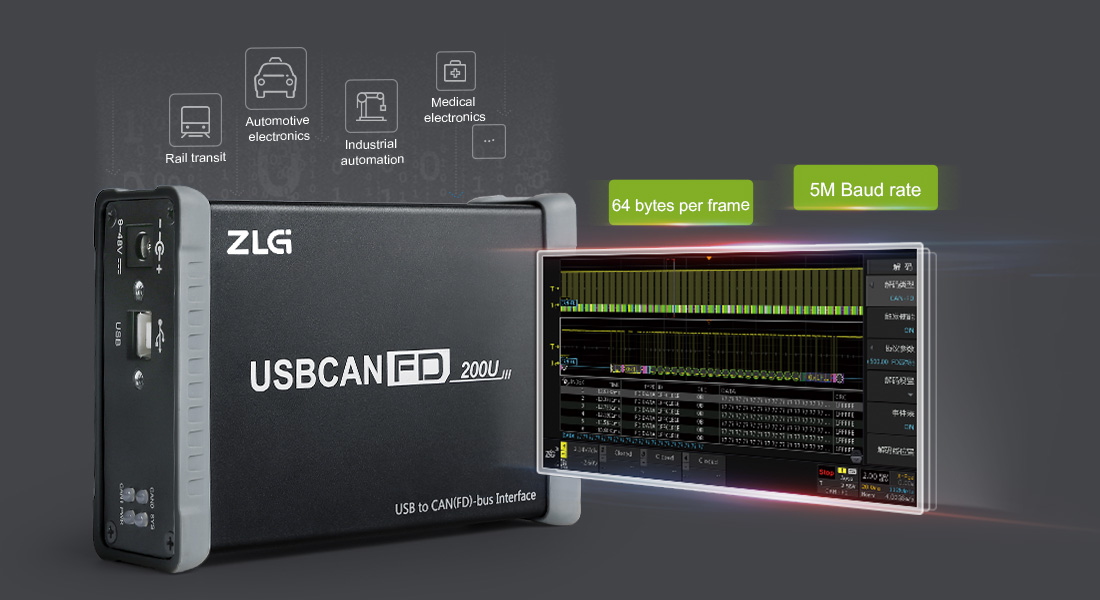

USBCANFD supports the CAN FD standard of ISO/Bosch, and is compatible with CAN2.0A/B mode. The Baud rate in data domain can be configured up to 5Mbps, and the data length can be configured up to 64 bytes. The product can provide data load 40 times higher than CAN2.0A/B, as well as faster control and data channels for automotive electronics, rail transit, medical electronics, industrial automation, etc.

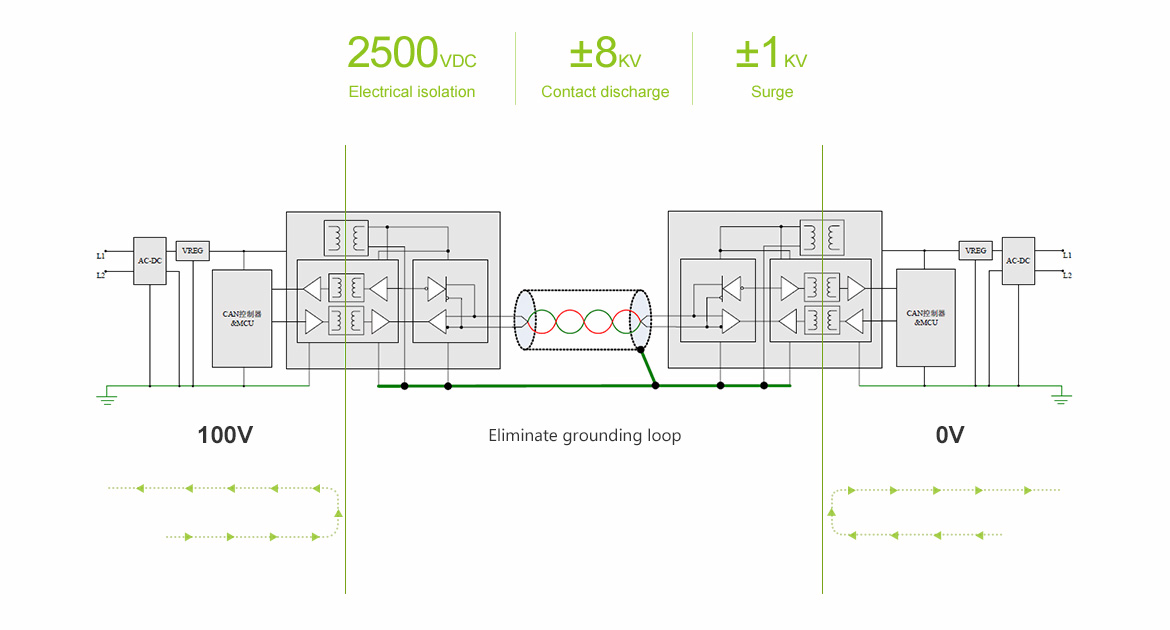

Up to 2500VDC signal isolation, preventing interface damage
1~2-channel CAN FD interfaces of USBCANFD interface card have 2500VDC electrical isolation, with static electricity levels of contact discharge ± 4KV and surge ± 1KV, and can effectively avoid backflow damage caused by different node ground potentials. It is especially suitable for testing electric vehicles and trains.

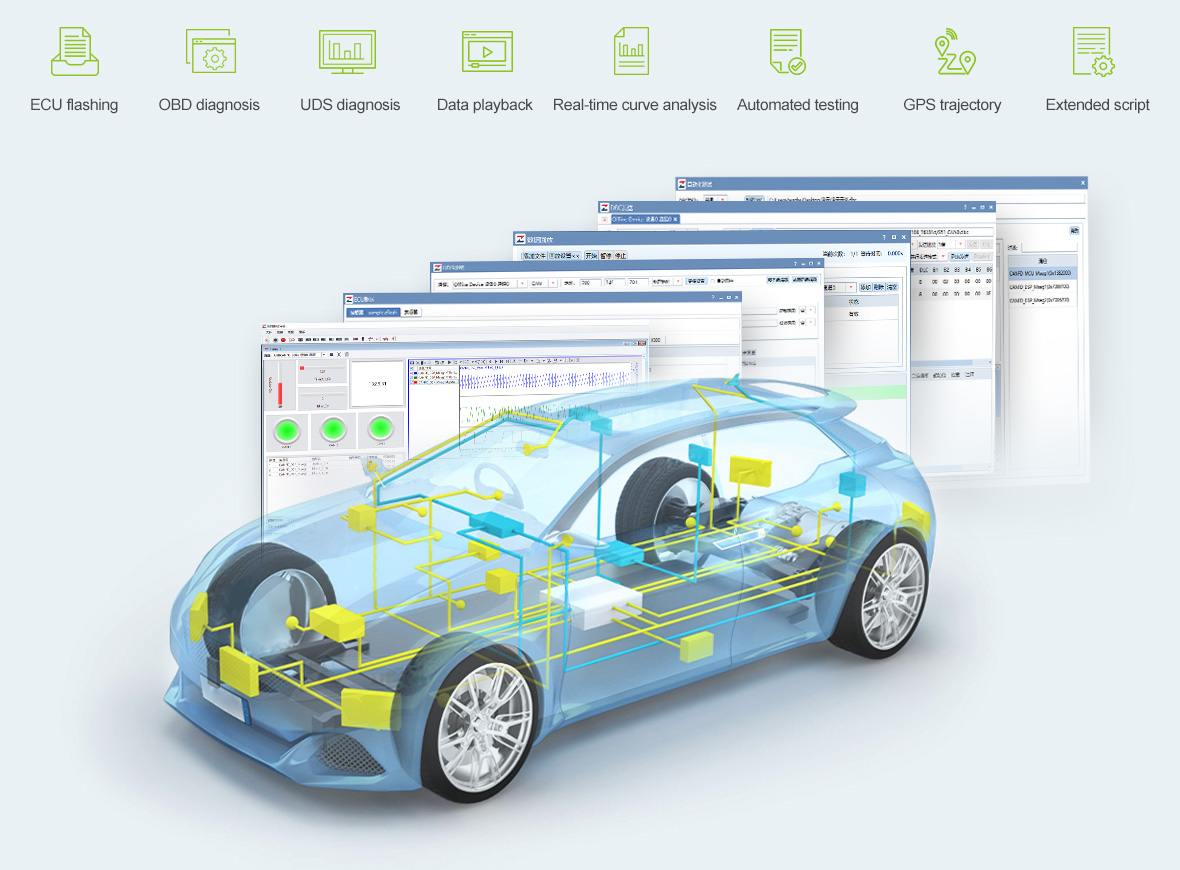

ZLG Bus Test & Analysis Software ZXDoc / ZCANPRO
ZLG ZXDoc/ZCANPRO software delivers full-process support for engineers engaged in architecture design, network planning, development and testing of CAN FD, CAN and LIN bus systems. Featuring high efficiency, comprehensive functions, easy operation and free access, it expands engineering possibilities, significantly cuts costs and boosts development efficiency.
130,000 frames are buffered without frame loss
The USBCANFD interface card has a 100 frame hardware buffer and an interface function library containing 130,000 frames of software buffer, which can effectively resist the impact of high bus load and ensure that CAN FD messages are received without frame loss.
Support vehicle DBC protocol analysis and DBC sending

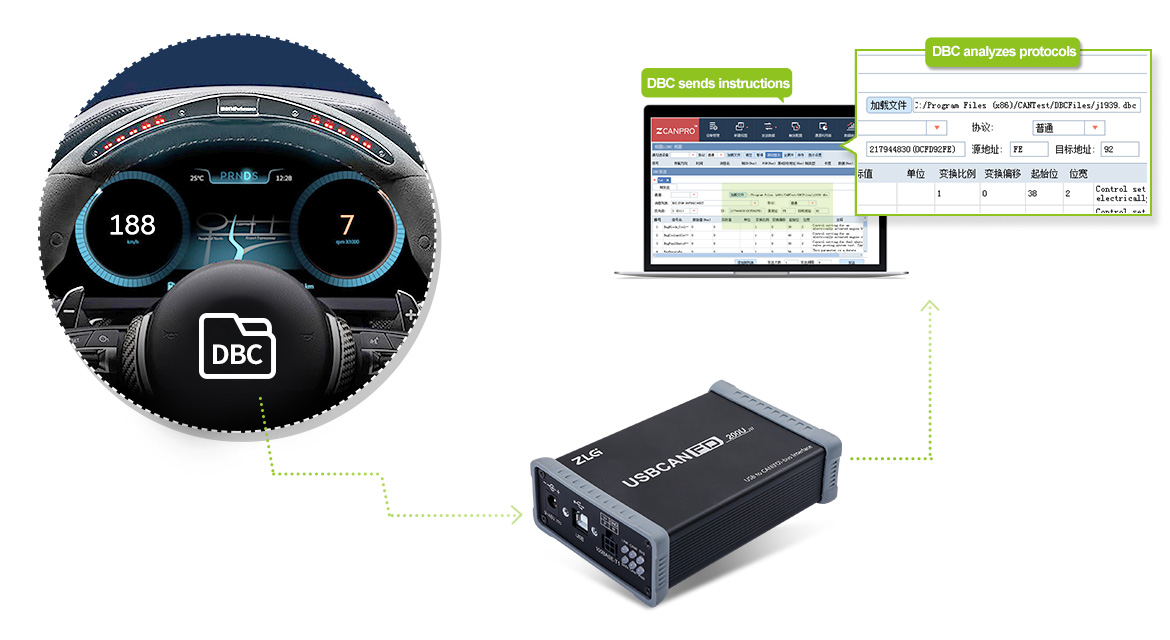

Users can load DBC files of vehicles or components, perform application protocol analysis, and directly control vehicles by sending relevant instructions through DBC, facilitating testing and maintenance of vehicle components for the entire vehicle.

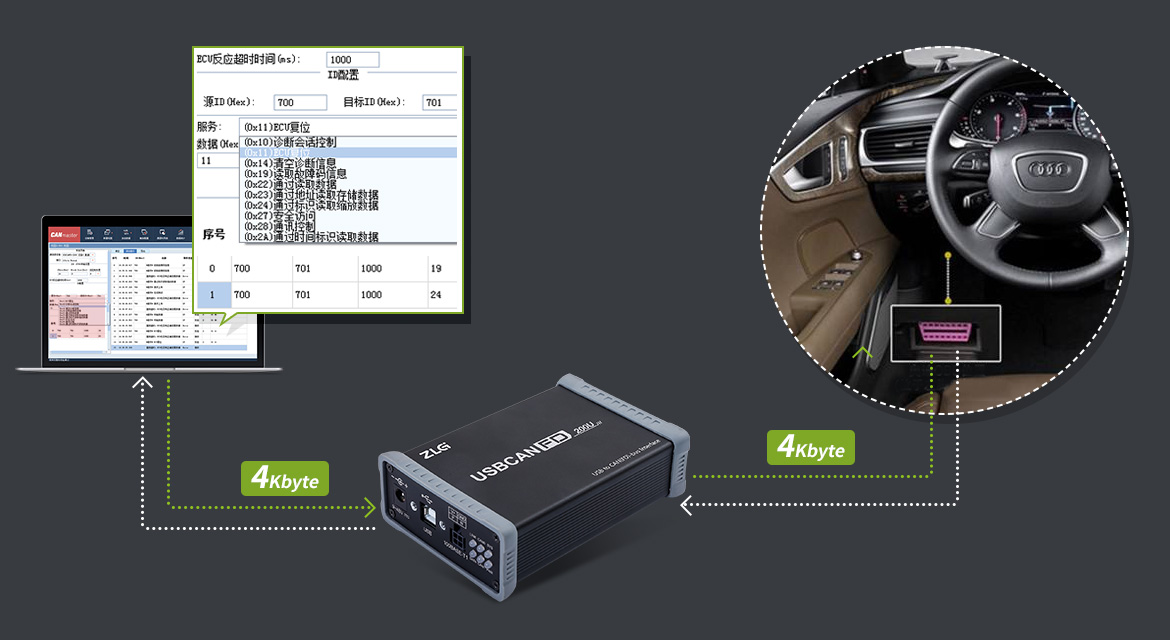

Support vehicle UDS diagnosis, compliant with ISO15765
Users can directly perform standard UDS diagnostic operations on vehicles through the USBCANFD interface card, with a maximum transmission capacity of 4Kbyte data per operation.
Support CANopen, J1939, and DeviceNet protocol analysis

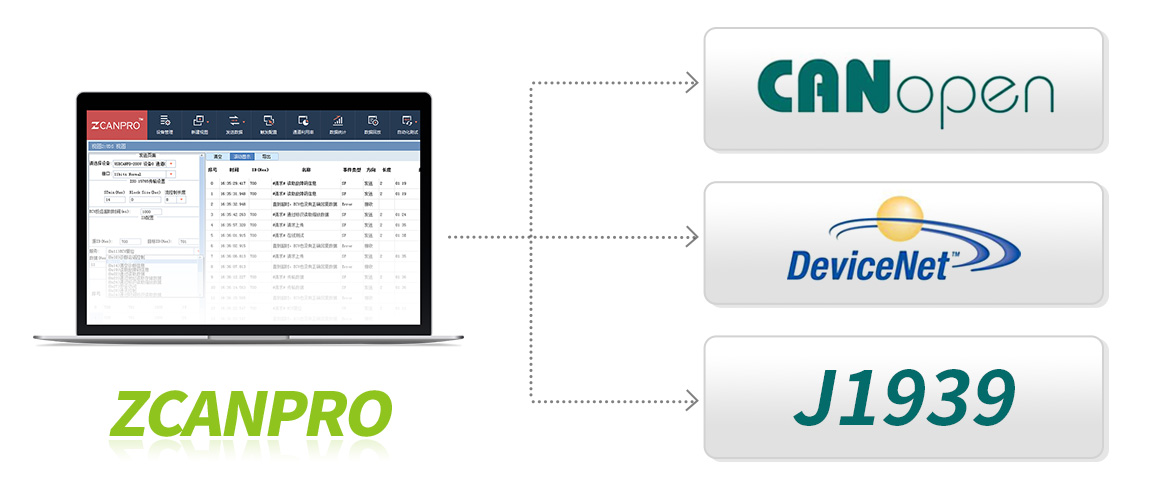

ZCANPRO software inherits ZLG CANPro’s excellent support for CANopen, J1939, and DeviceNet protocols, and provides users with free analysis functions for the above three protocols.

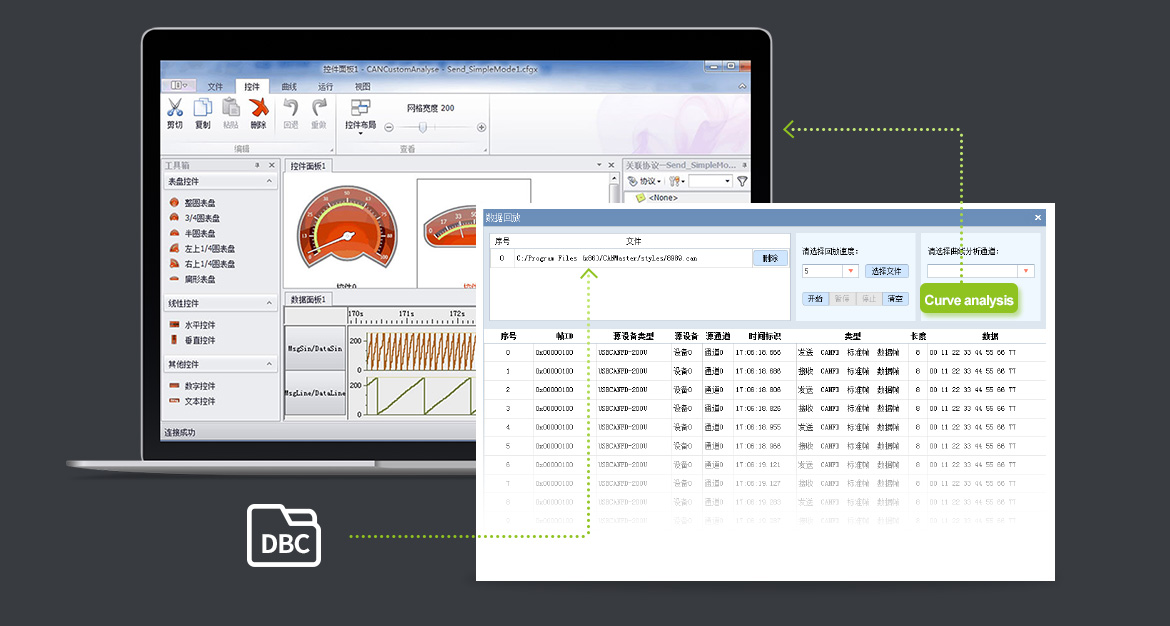

Support message playback function and draw variable curves
ZCANPRO software supports recording message playback function and can load DBC files for variable curve analysis.
Support automated testing to make testing simpler

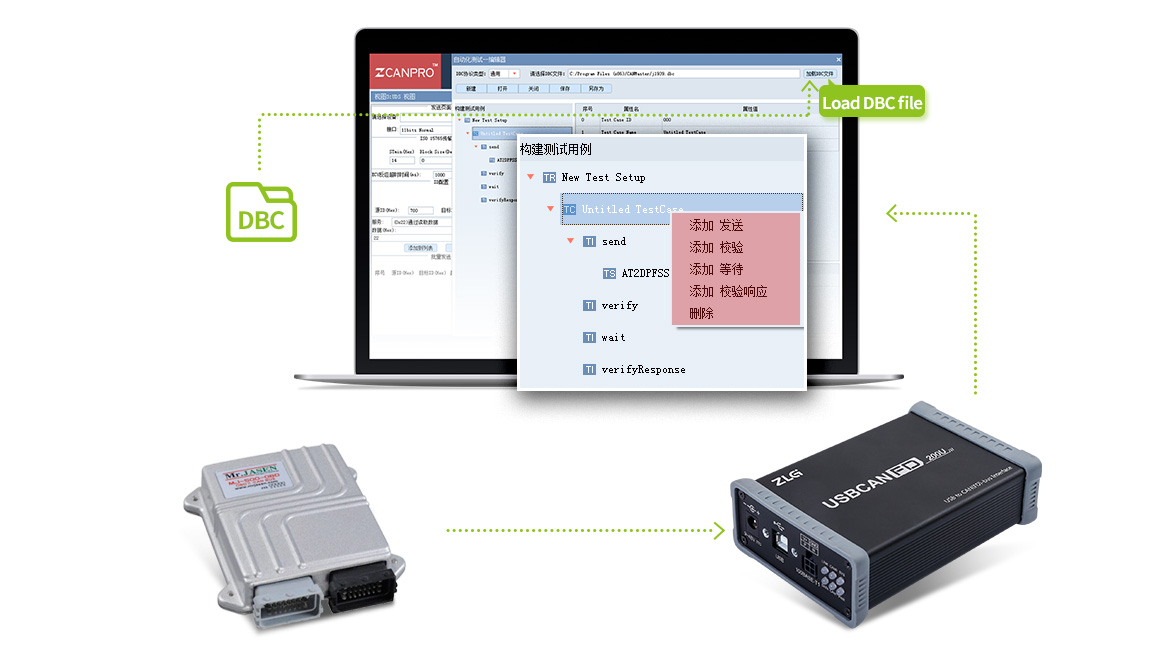

Users can automate the testing of the tested device by editing the testing process, loading DBC files, performing actions such as sending, waiting, checking, and checking responses.
Efficient and easy-to-use secondary development functions

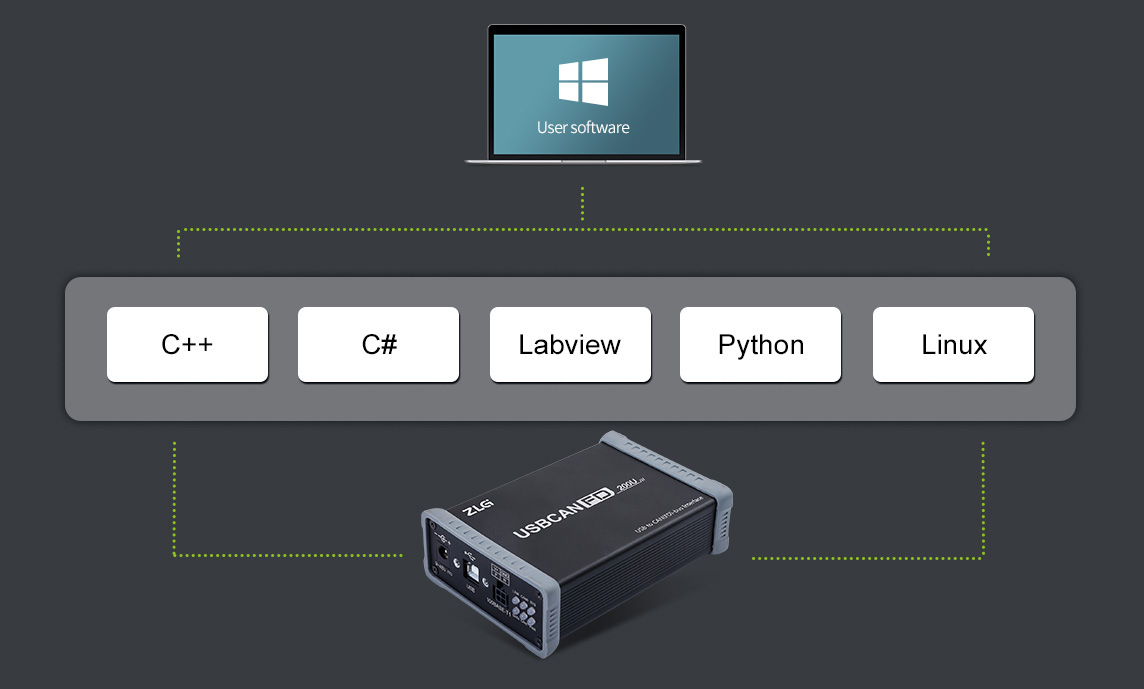

The USBCANFD interface card provides a secondary development library that supports various mainstream development environments such as VC, VB, C#, LINUX, Labview, LabWindows, and Delphi7. It carries advanced protocol packages such as DBC and UDS. You can seamlessly switch between different interfaces only by changing the device type, which is efficient and easy to use.

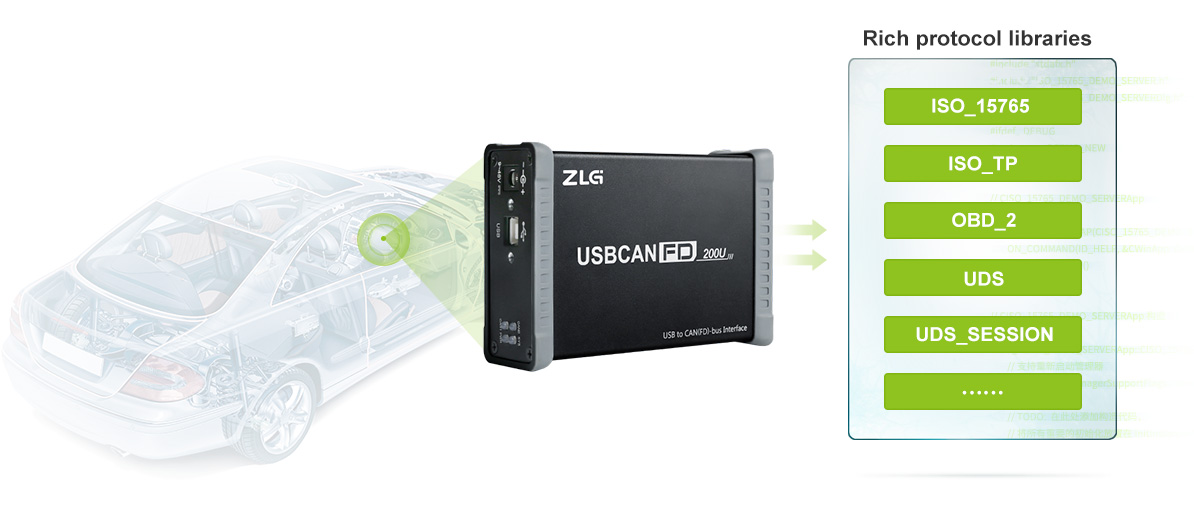

Rich secondary development library of special high-level protocols for automotive electronics
Users can directly load the secondary development library of UDS/OBDII/15765 and other automotive electronic protocols to assist in the testing and maintenance of parts.

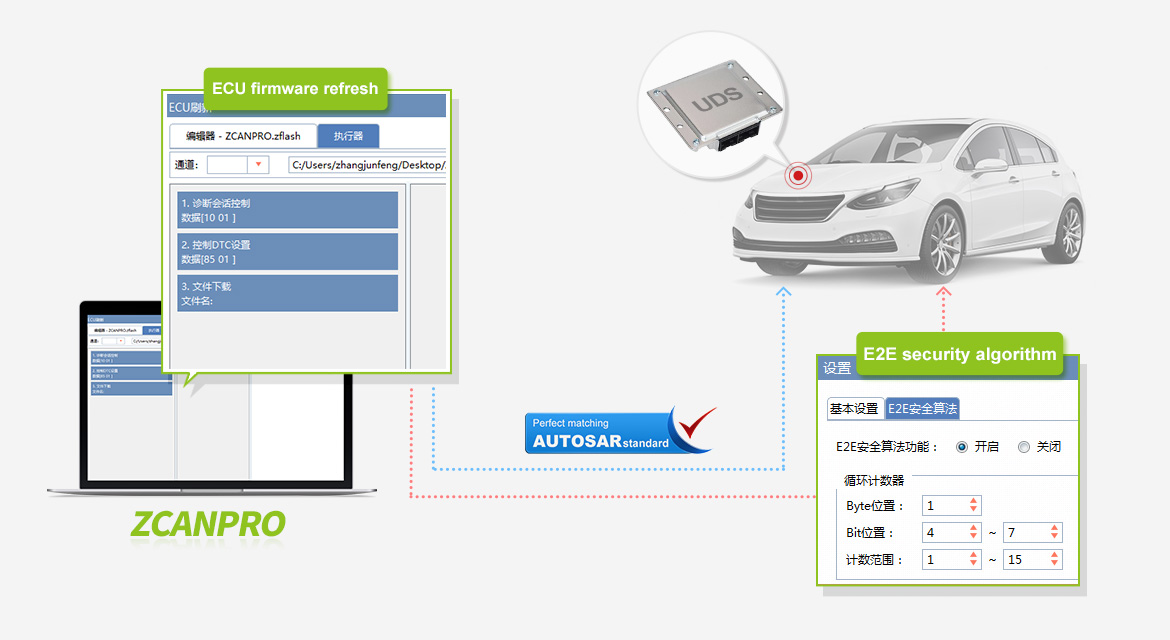

Support ECU refresh and E2E security algorithm, and match with AUTOSAR standard
ZCANPRO supports ECU refresh and E2E security algorithm, provides UDS protocol services, adds flashing files and applies actuators to easily complete ECU data security and fast refresh.
Rich interfaces and wide applications
With its comprehensive upper computer software and excellent multi-channel concurrent testing capabilities USBCANFD-800U is widely applied in R&D and testing fields such as automobile parts, power batteries, vehicle E/E architecture, and automatic driving.
