USBCAN Series CAN Interface Card
The USBCAN series CAN interface card is fully compatible with USB2.0 full-speed specification and is the high-performance CAN interface card with the 1-2 CAN channels. By plugging into the PC’s USB port, it can be connected with the CAN network for acquiring and processing data.
The USBCAN series CAN interface card is a powerful tool to develop CAN products and analyze CAN data, and also supports vehicular protocol analysis. The CAN card is equipped with an electrical isolation module, which prevents damage from ground circulation and improves its usage reliability in severe environments.
The CAN card supports Win2000/XP/WIN7/WIN8/WIN10 /Linux.
Product selection
Featured Products | Classic Products | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|

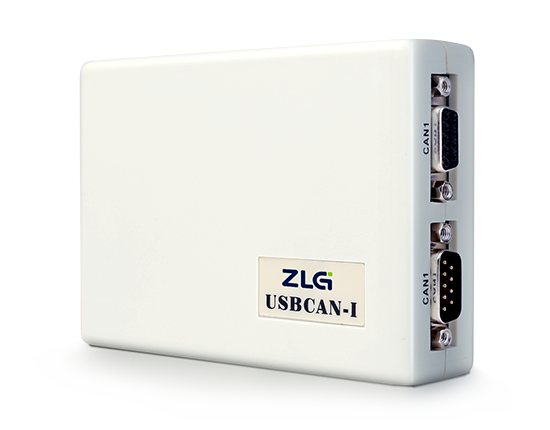

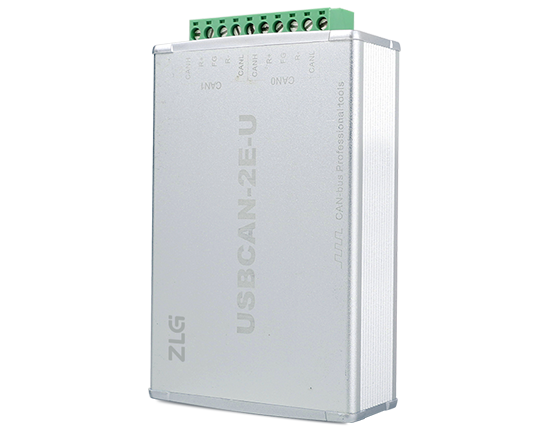

| Models | USBCAN-2E-U | USBCAN-E-U | USBCAN-E-mini | USBCAN-II | USBCAN-II+ | USBCAN-II+-D | USBCAN-I | USBCAN-I+ | USBCAN-I-mini | |
Picture |  |  |  |  |  |  |  |  |  | |
| interface type | OPEN5 screw terminal | OPEN5 screw terminal | DB0 port(standard OPEN5 terminal adapter), with fixing holes | DB9 port | OPEN5 screw terminal | OPEN5 screw terminal, with fixing holes | DB9 port | OPEN5 screw terminal | DB0 port(standard OPEN5 terminal adapter), with fixing holes | |
| CAN channels | 2 channels | 1 channel | 1 channel | 2 channels | 1 channel | 1 channel | ||||
| Features | Enhanced EMC and support for bus error analysis | Enhanced EMC and support for bus error analysis | Portable model and support for bus error analysis | Classic model and support for Linux | Classic model and support for Linux | Portable model and support for Linux | ||||
| Industrial grade | √ | √ | - | √ | √ | - | ||||
| 3500V electrical isolation | √ | √ | √ | √ | √ | √ | ||||
| Alternate power supply interface | √ | √ | - | √ | √ | - | ||||
| Data reception capability | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) | ||||
| Data transmission capability | 4000 frames/second (each channel) | 4000 frames/second (each channel) | 4000 frames/second (each channel) | 2000 frames/second (each channel) | 2000 frames/second (each channel) | 4000 frames/second (each channel) | ||||
| Windows system drive | supported | supported | supported | supported | supported | supported | ||||
| Linux system drive | - | - | - | supported | supported | supported | ||||
| Vehicular DBC file decoding | supported | supported | supported | supported | supported | supported | ||||
| Charging pile and BMS protocol decoding | supported | supported | supported | - | - | - | ||||
| CANopen and J1939 protocol analysis | supported | supported | supported | - | - | - | ||||
| CAN upgrade firmware for Freescale chip | - | - | - | supported | supported | supported | ||||
| Housing | metal | metal | plastic | metal (plastic for USBCAN-II) | metal (plastic for USBCAN-I) | plastic | ||||
| 120ohm terminal resistor | external | external | built-in | external (built-in for USBCAN-II) | external (built-in for USBCAN-I) | built-in | ||||
Note: Fixable customized models include USBCAN-II+-D and USBCAN-II-+ renamed from USBCAN-2A.
Most Popular CAN Interface Card in China
Proved to be stable and reliable by stringent verification

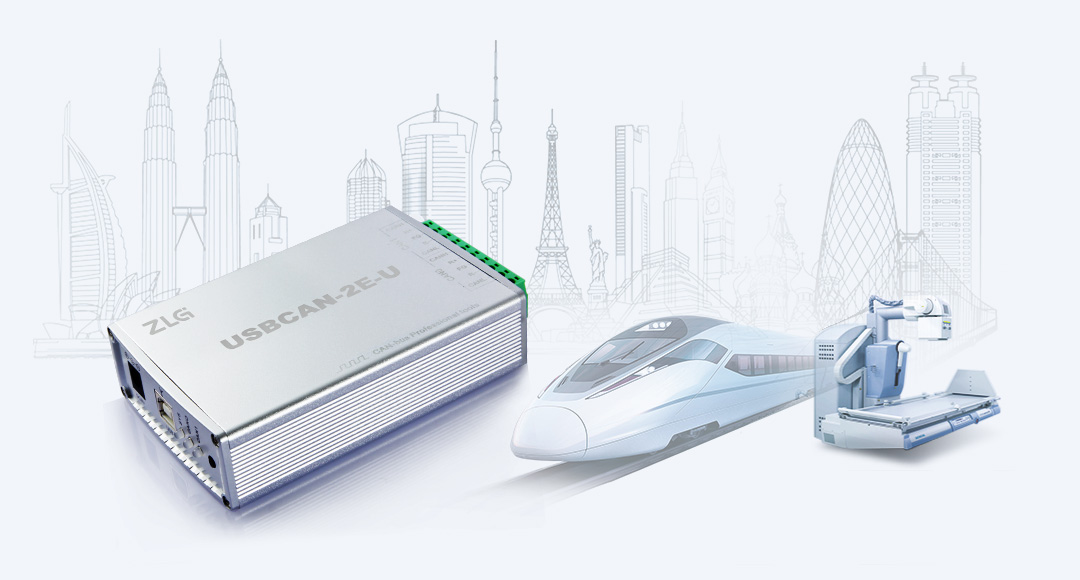

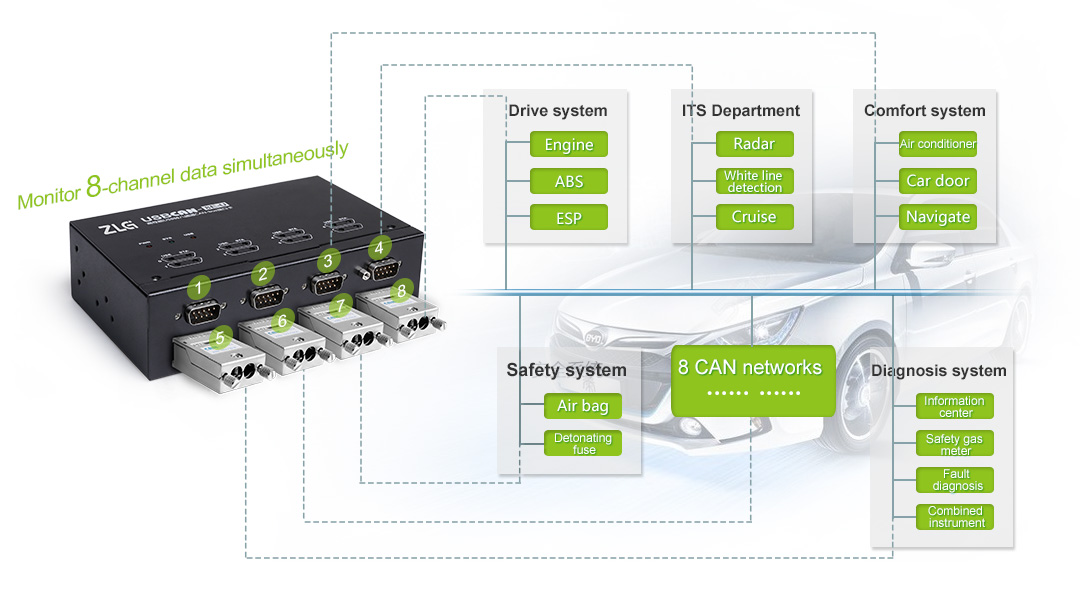

Widely applicable to high-speed railway, metros, medical treatment, aerospace, building security, elevator control, weighing apparatus and so on.
World’s First Portable & Integratable Mini-series Models

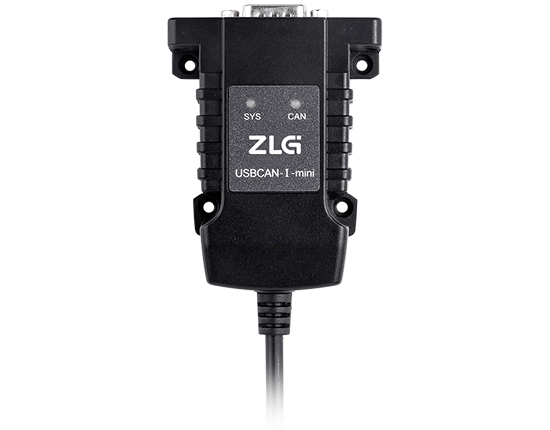

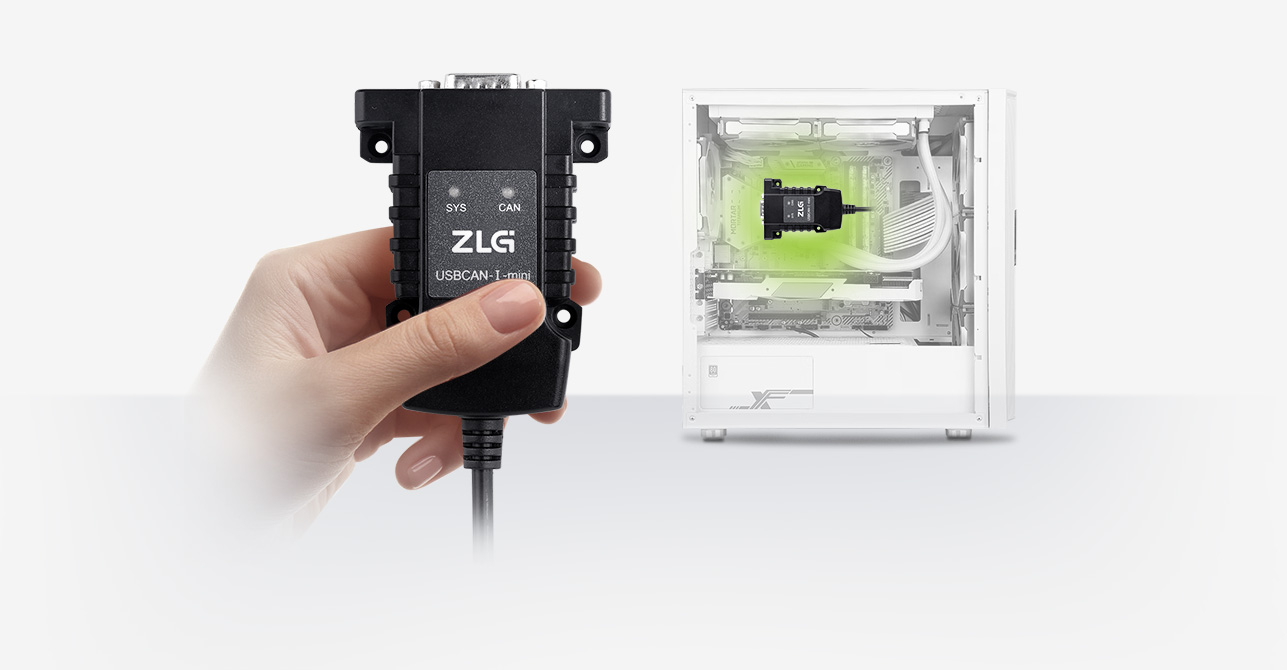

USBCAN-E-mini and USBCAN-I-mini smart CAN cards are portable USBCAN versions and fully compatible with USBCAN-E-U and USBCAN-I. Both are equipped with fixing holes so that they can be integrated into chassis and housings. They are particularly suitable for medical instruments.
High-speed USB2.0 Interface
Compatible with USB3.0 and USB1.1
1~2-Channel CAN Interface with 2500 VDC Electrical Isolation
±8KV Electrostatic Discharge
1130,000-frame Super Buffer with no Frame Loss as the Top Priority
Full-load reception capability at any Baud rate; 130,000-frame super buffer with no frame loss as the top priority

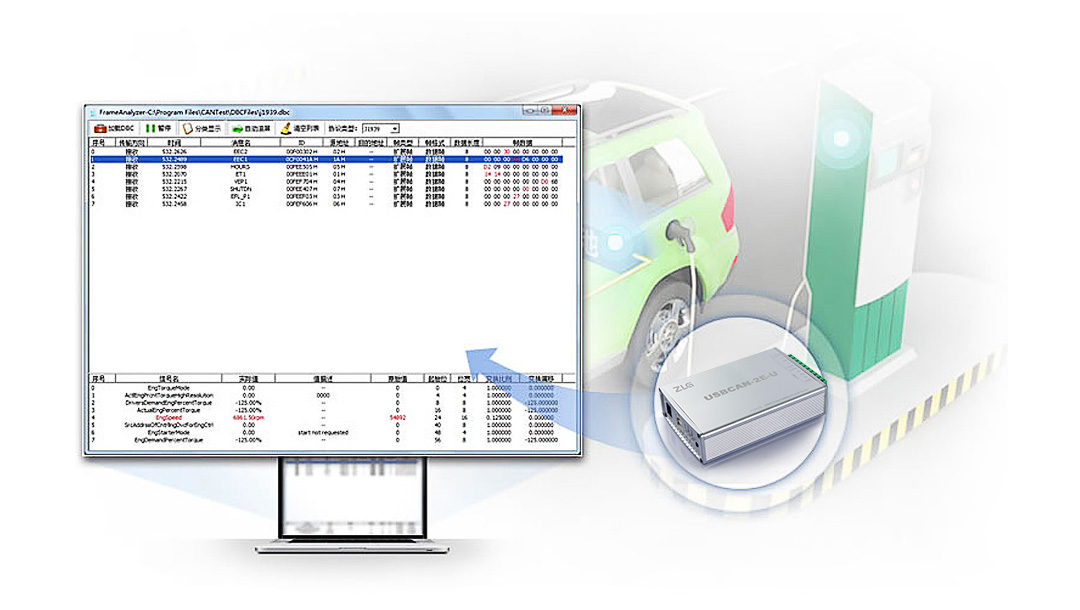

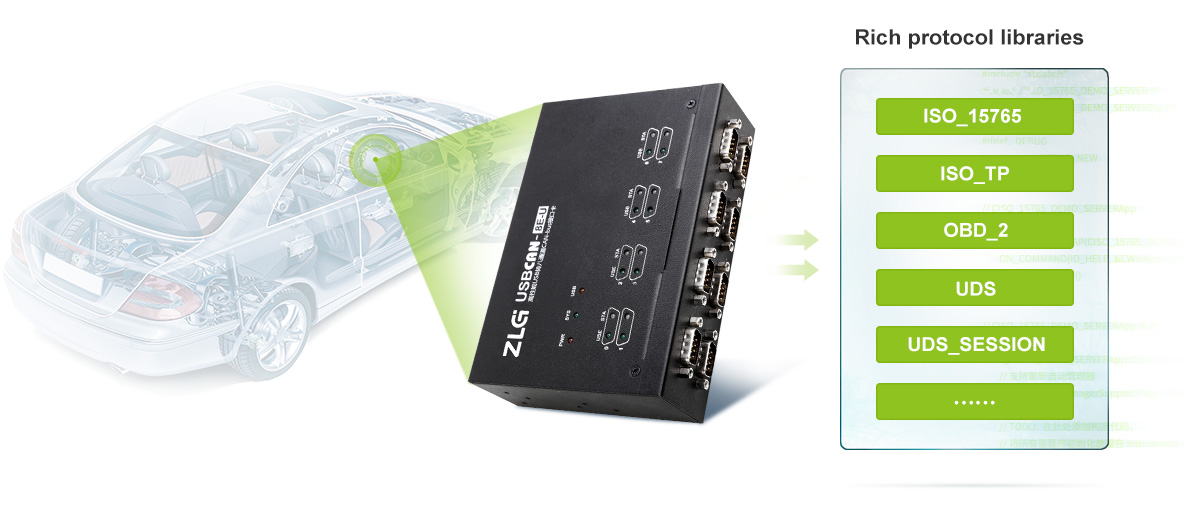

Support vehicular DBC decoding, CANopen, J1939 protocol, state grid charging pile and BMS protocol analysis
CAN protocol is fully compliant with CAN2.0B specification and ISO11898-1/2/3, and compatible with CAN2.0A.

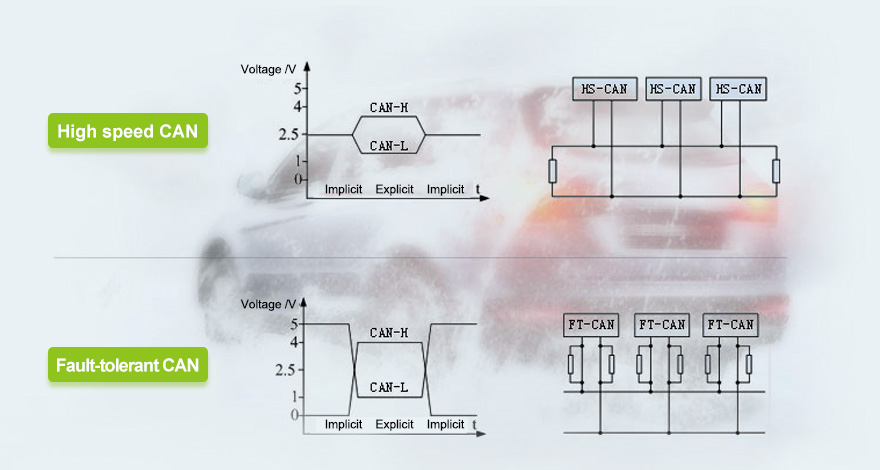

Users can choose CANBridge-1054 to support the fault-tolerant CAN standard of ISO11898-3.

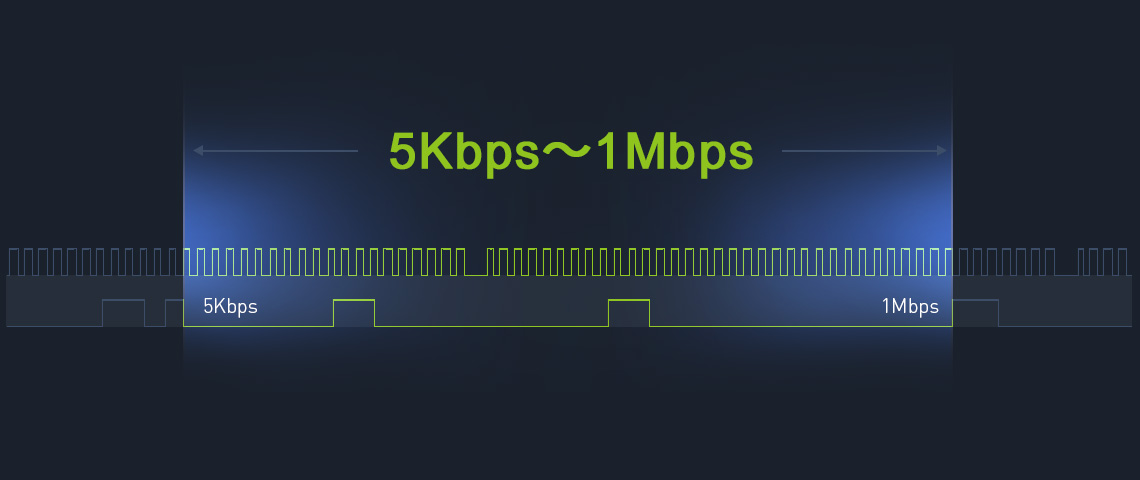

CAN Baud rate can be set at random in the range of 5kbps to 1Mbps.
Support Various Development Environments
It has effective and easy secondary development function, and supports various development environments like VC, C#, Labview, LINUX, etc.

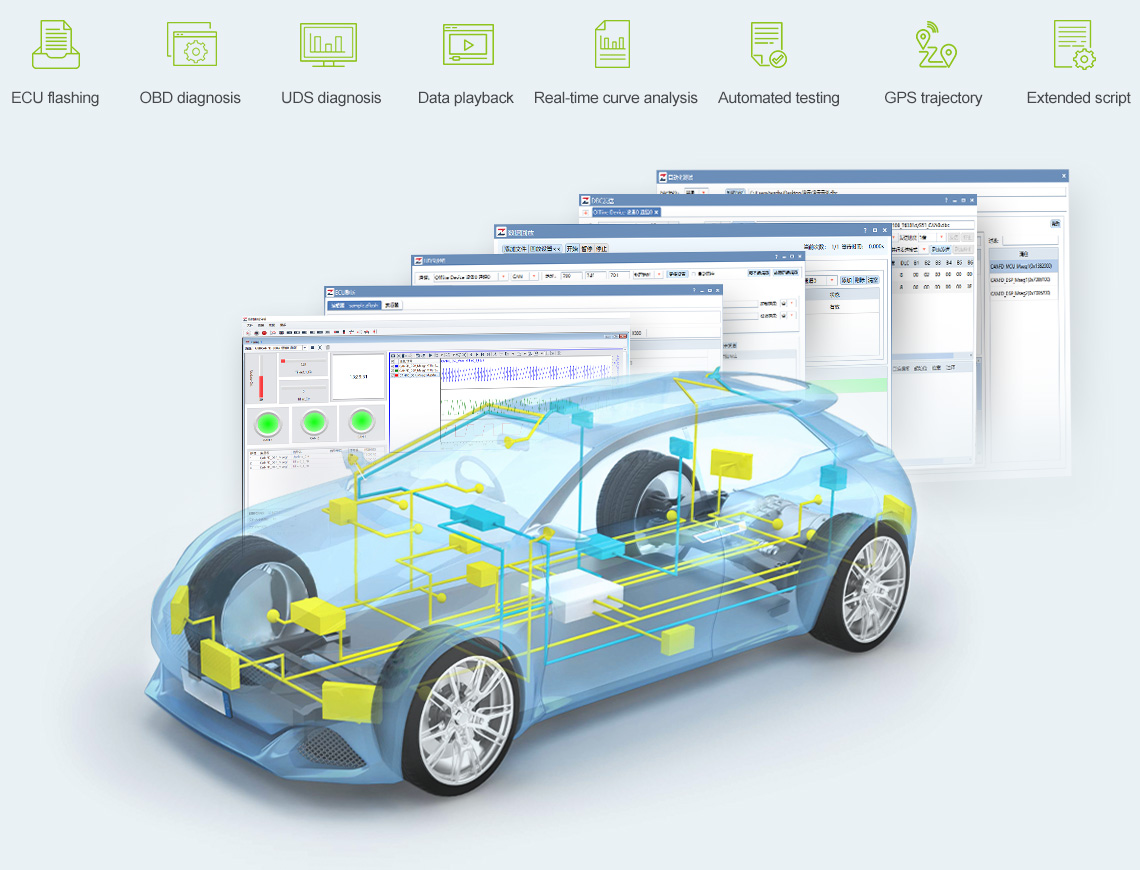

Powerful CANtest Testing and Analyzing Software

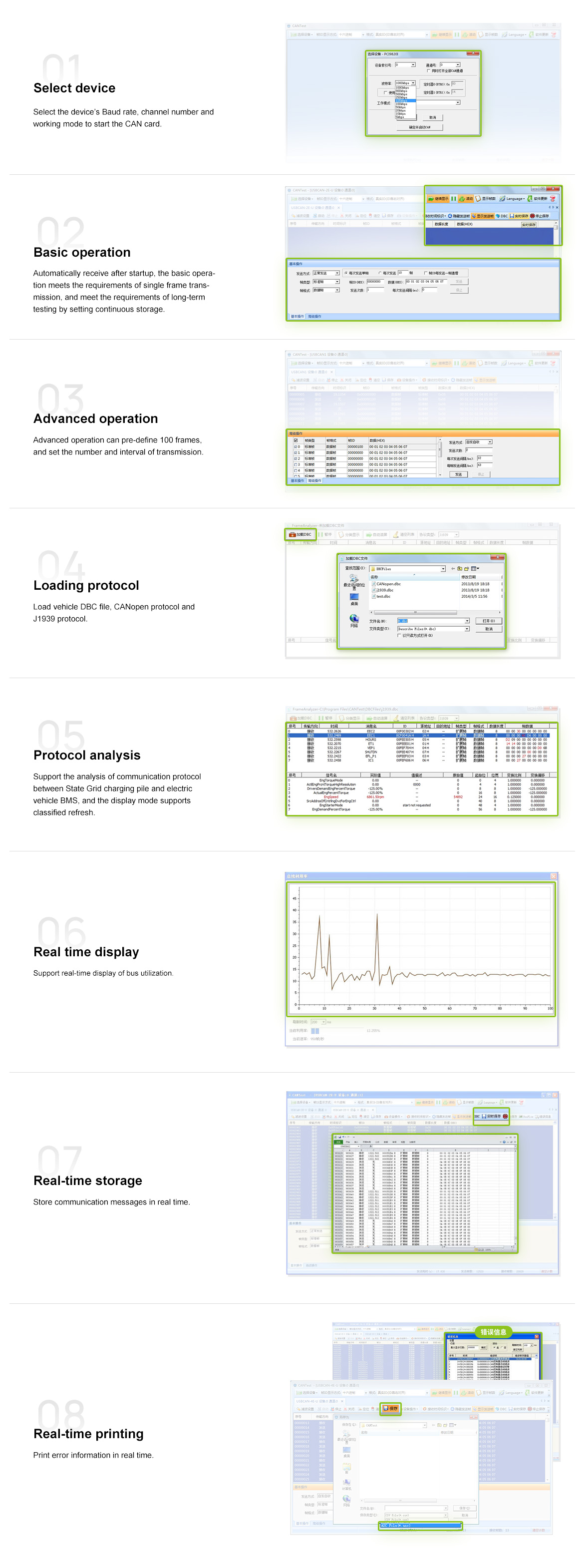

1．Select device Baud rate, channel number and operating mode to start CAN card.
2．Perform automatic reception after startup. A single-frame transmission can be achieved in a basic operation. Users can set continuous storage for long-term testing.
3．For advanced operations, 100 frames can be predefined; the transmission counts and intervals can also be set.
4．Vehicular DBC files, CANopen protocol and J1939 protocol can be loaded.
5．The BMS communication protocol analysis for state grid charging pile and electric automobile are supported, and the display can be classified to refresh.
6．Bus utilization rates can be displayed in real time.
7．Communication messages can be stored in real time.
8．Error information can be printed in real time.
Secondary Development Function Library

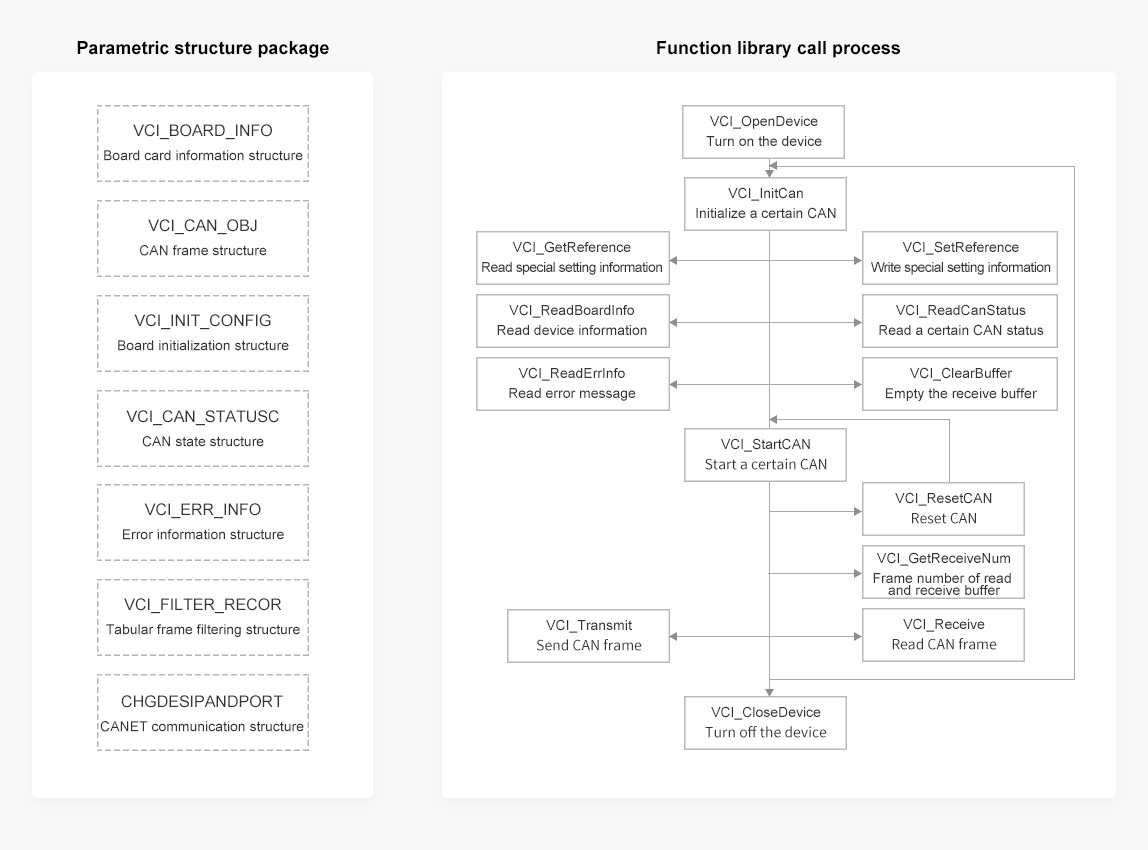

All CAN cards from ZHIYUAN Electronics share the same PC secondary development function library (supporting major development environments like VC, VB, C#, LINUX, Labview, LabWindows and Delphi 7), and users can freely switch interfaces just by modifying device types.
