CANopen Master Card Series
Guangzhou ZHIYUAN Electronics, a member of CANopen CiA, has long dedicated itself to the R&D of CANopen products. To date, it has independently developed CANopen master devices, master interface cards, data acquisition modules, controllers, gateway devices, and bus analyzers, all of which have passed CANopen conformance testing. In addition, all products can be customized.

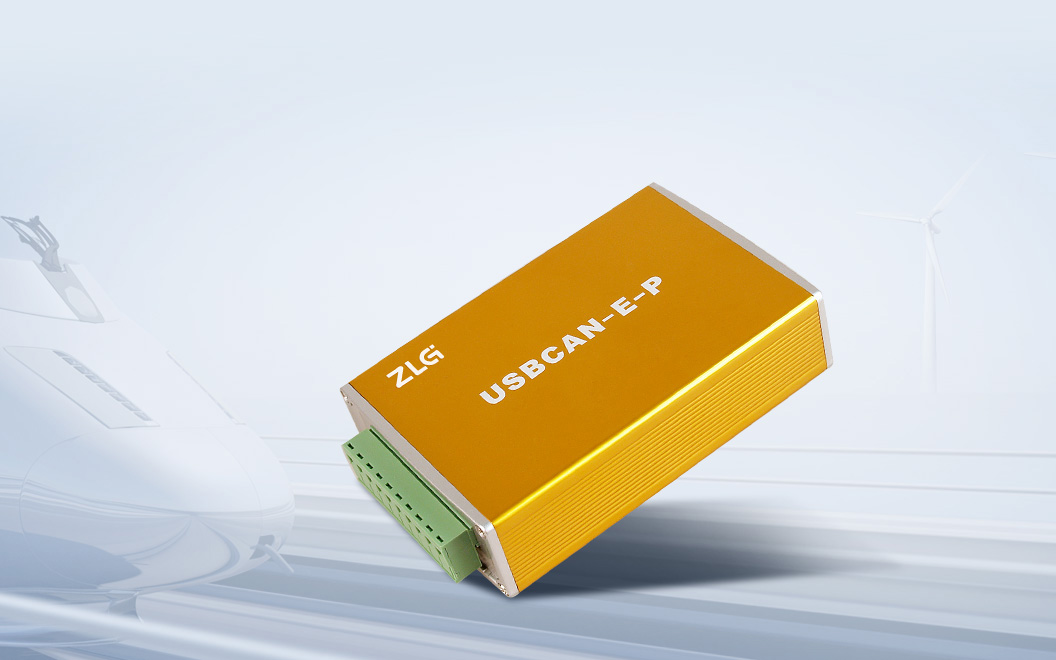

The PCI-5010-P and USBCAN-E-P master cards are integrated with 1 CAN channel and can be connected with CAN bus to realize data communication of the CANopen protocol. The CAN channel of the interface card is integrated with comprehensive electrical isolation protection, an anti-surge function, and anti-interference function. Meanwhile, it is stable in performance and reliable in communication. In addition, the master cards provide powerful software support, including a CANopen function library, CANopen testing software...
Product Selection

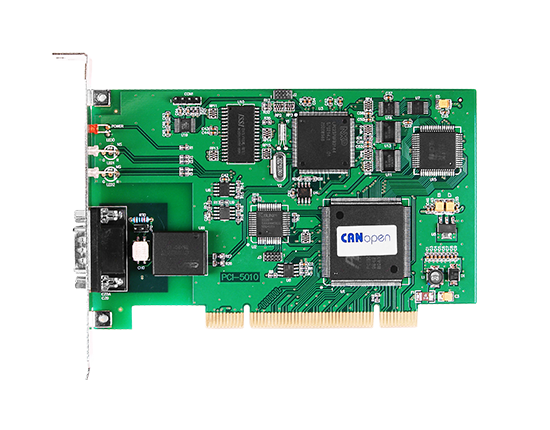

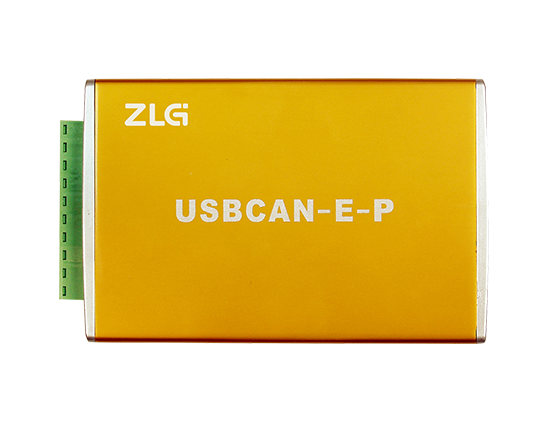

| Model | PCI-5010-P | USBCAN-E-P |
|---|---|---|

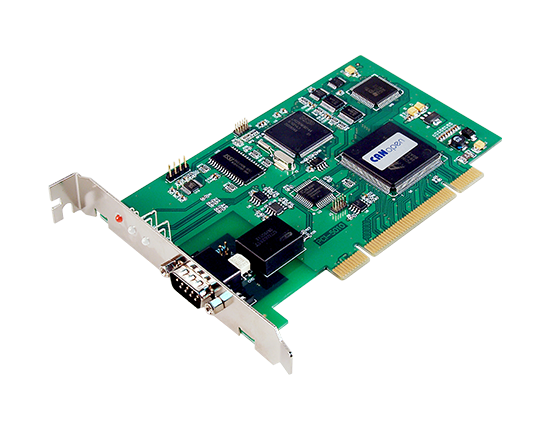

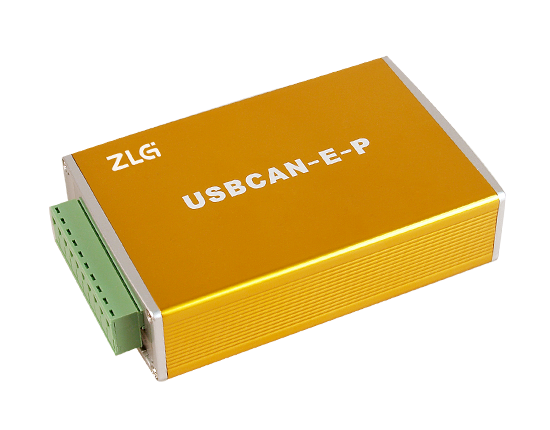

| Actual image |  |  |
| PC port | PCI | USB |
| CANopen channel | 1 channel | 1 channel |
| Interface type | DB9 terminal | OPEN5 terminal |
| Industrial grade | √ | √ |
| Electrical isolation | √ | √ |
| Windows system drive | Supported | Supported |
| Linux system drive | - | - |
| CANopen slave number | 64 | 32 |
| EDS file download | √ | √ |
| Modification and download of slave object dictionary | √ | √ |
| NMT network management | √ | √ |
| Emergency messages support | √ | √ |
| Supported RPDO number | 128 | 128 |
| Supported TPDO number | 512 | 512 |
| PDO and SDO transmission | Supported | Supported |
| Concurrent CAN data link layer monitoring | Supported | - |
| 120 ohm terminal resistor | Built-in | External |
CANopen Network Management Device: Stable, Reliable, and Widely Applicable
The CANopen network management device has been proven as reliable and stable by stringent verification measures and thus has been widely applied to high-speed railways, metros, medical treatment, wind power generation, frequency converters, elevator controls, and more.
CANopen Protocol: Fully Compliant with CiA Specifications
ZHIYUAN Electronics is a member of CiA. The CANopen protocol is fully compliant with CiA specifications and has been certified by conformance testing software.
Support for Various Functions

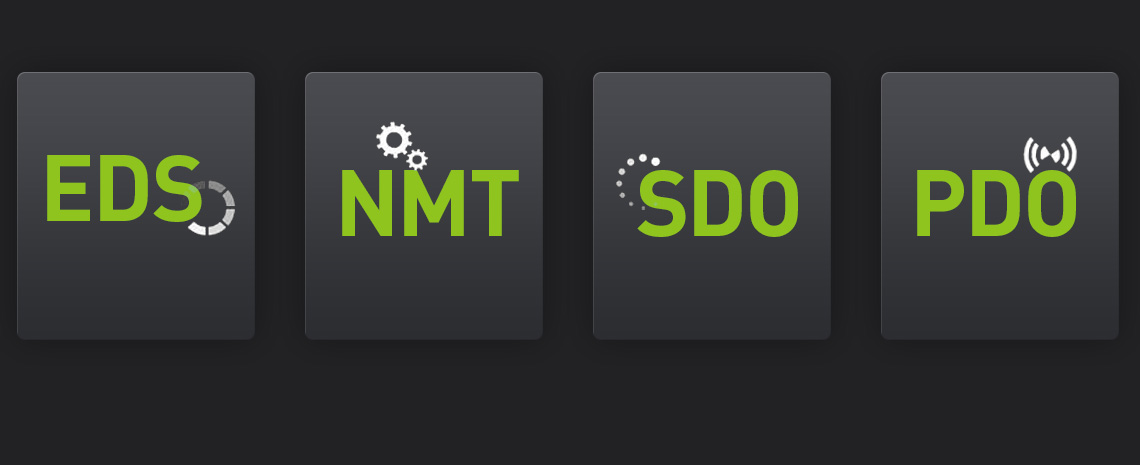

Supports EDS files download, online modification of slave object dictionary, NMT management, SDO and PDO transmitting and receiving.
130,000-frame Super Buffer with No Frame Loss
Features high performance with full-load reception at any Baud rate and 130,000-frame super buffer with no frame loss as its top priority

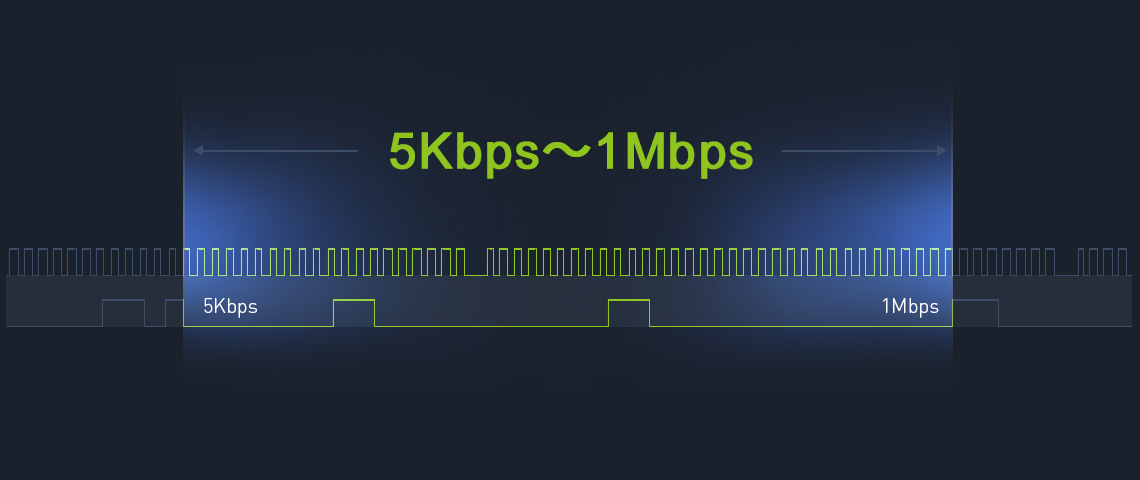

CAN Baud Rate Can Be Set at Random Within 1Mbps
The CAN Baud rate can be set at random from 5kbps to 1Mbps.
Support for Upgrading Firmware of the NXP LPC11Cxx-series CANbus
The USBCAN-E-P supports upgrading firmware of the NXP LPC11Cxx-series CANbus.
2-Channel 2,500 VDC Electrical Isolation
2-channel CAN interface with 2,500 VDC electrical isolation and ±8 kV electrostatic discharge.
Support for Various Development Environments
It has effective and easy-to-use secondary development function and supports various development environments, such as VC, C#, LabView, Linux, etc.

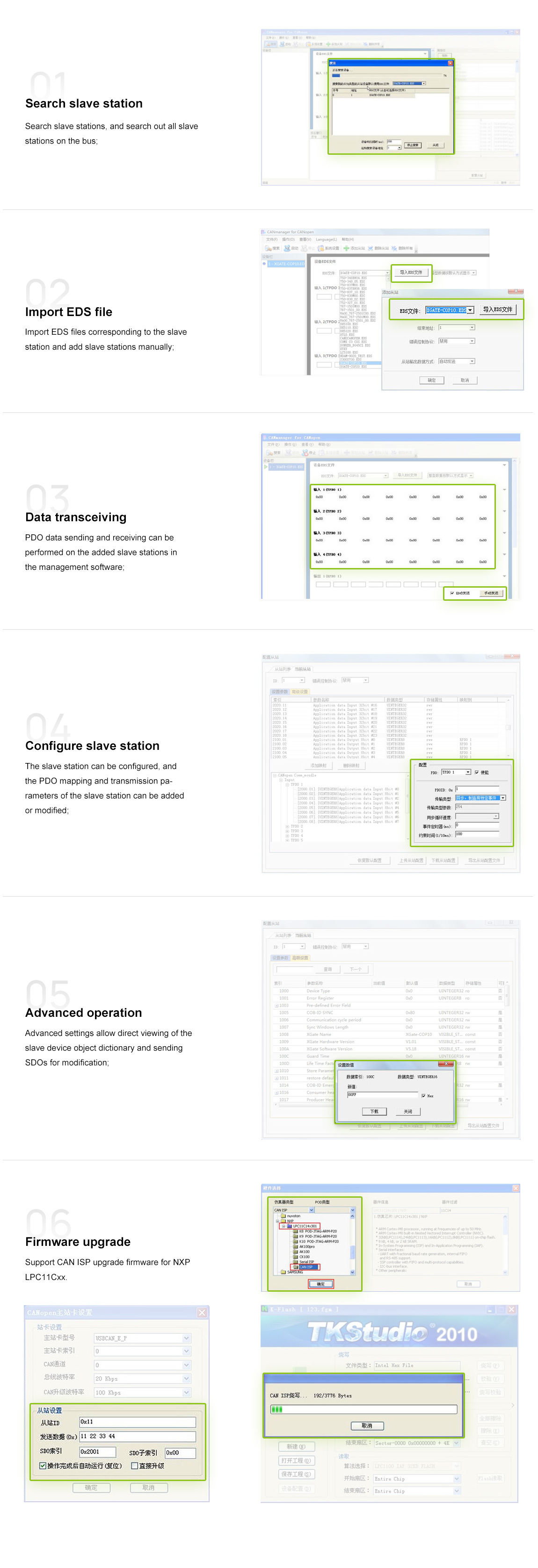

Powerful CANopen network management software: CANManager for CANopen
1.Search slaves and find out all slaves on the bus;
2.Import EDS files of the corresponding slaves and add the slaves manually;
3.On management software, perform PDO data transceiving for the added
4.Users can configure the slaves and add or modify PDO mapping and transmission parameters of the slaves;
5.Users can check the object dictionary of the slaves directly in “Advanced Settings” and transmit SDO for modification;
6.Support CAN ISP upgrade firmware of the NXP LPC11Cxx series.

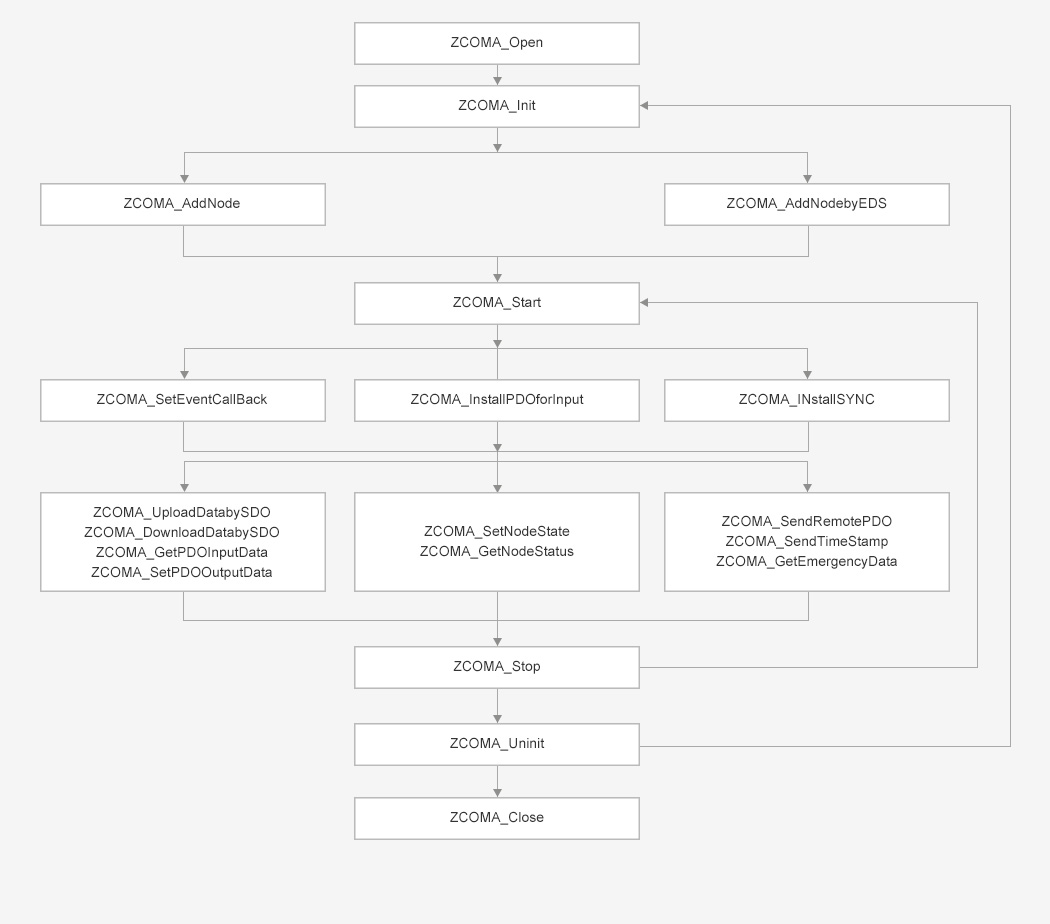

Secondary Development Function Library
All CANopen master cards from ZHIYUAN Electronics share the same PC secondary development function library (supporting major development environments like VC, VB, C#, LabView, LabWindows, and Delphi 7), and users can freely switch interfaces just by modifying device types.
