CAN Card for MiniPCIe

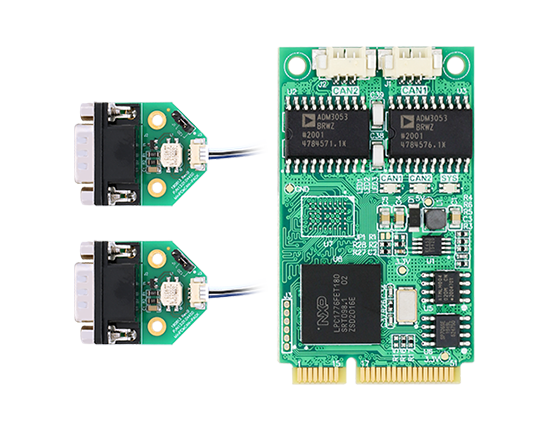

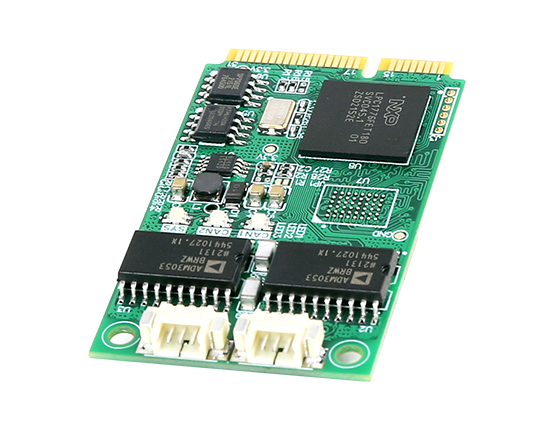

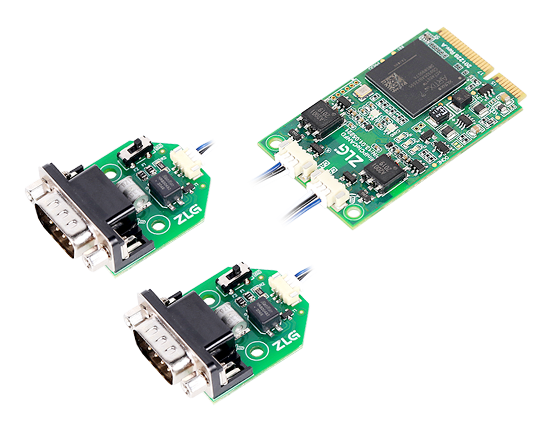

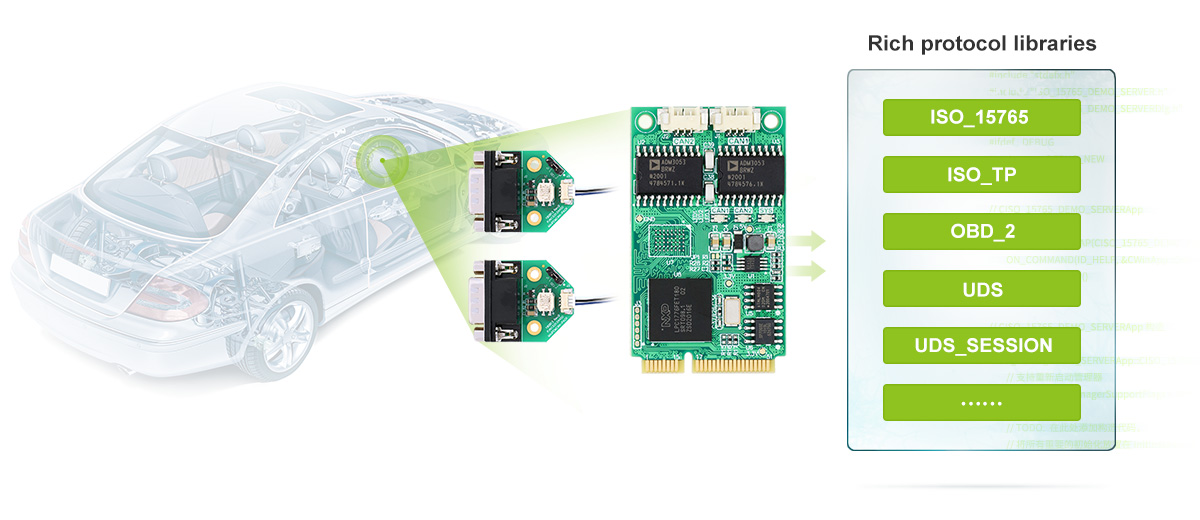

The MiniPCIe CAN series is the high-performance CAN card for MiniPCIe. The mainboard with MiniPCIe slot can extend 2-channel CAN interface through the MiniPCIe CAN card. With the standard MiniPCIe board card size, It can be conveniently installed in a laptop or industrial PC with MiniPCIe interface.
The CAN card is integrated with 2-channel complete CAN isolation interface circuits. In order for convenient expansion, the TTL terminals (without the transceiver) of CAN signals can be switched into the reserved IO port of the MiniPCIe by resistance welding, so that users can customize the CAN transceiver circuit on the baseboard.
The MiniPCIe CAN card supports Win2000/XP/Win7/Win8/Win10/Linux operating systems
Product Selection
| Models | MiniPCIeCAN-II | MiniPCIeCAN-2E-U |
|---|---|---|
| Pictures |
|  |
| Features | same operation as USBCAN-II | same operation as USBCAN-2E-U |
| CAN channels | 2 channels | 2 channels |

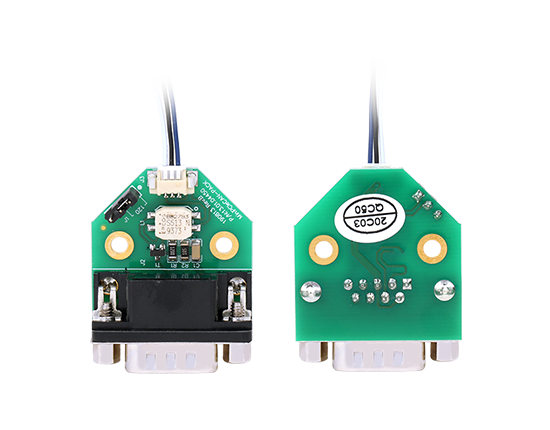

| Interface type | DB9 port from the socket or optional back-lead | DB9 port from the socket or optional back-lead |
| Electrical isolation | √ | √ |
| Industrial grade | √ | √ |
| Data reception capability | 14000 frames/second (each channel) | 14000 frames/second (each channel) |
| Data transmission capability | 4000 frames/second (each channel) | 4000 frames/second (each channel) |
| Windows system drive | supported | supported |
| Linux system drive | supported | - |
| Vehicular DBC file decoding | - | supported |
| Accurately underlying timing transmission | - | supported |
| CANopen and J1939 protocol analysis | - | supported |
| CAN upgrade firmware for Freescale chip | supported | - |
| 120ohm terminal resistor | pluggable | pluggable |
Advanced Solution and Stable Operation
The MiniPCIeCAN series adopts the advanced USBCAN card technique from ZHIYUAN Electronics, features excellent communication performance and highly stable operation. It is particularly suitable for the CAN interface expansion for embedded industrial control board, fan-less IPC, etc.
2-Channel CAN Interface with 2500 VDC Electrical Isolation
±6KV Electrostatic Discharge

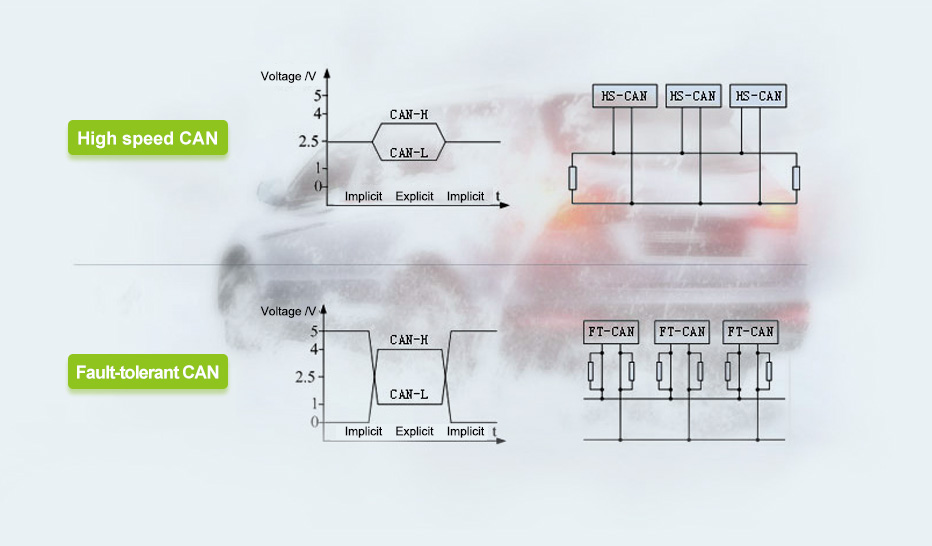

CAN protocol is fully compliant with CAN2.0B specifications and ISO11898-1/2/3, and compatible with CAN2.0A.
The CAN Baud rate can be set at random in the range of 5kbps ～ 1Mbps.
130,000-frame Super Buffer with no Frame Loss as the Top Priority
Full-load reception capability at any Baud rate; 130,000-frame super buffer with no frame loss as the top priority
Support Various Development Environments
It has effective and easy secondary development function, and supports various development environments like VC, C#, Labview, LINUX, etc.

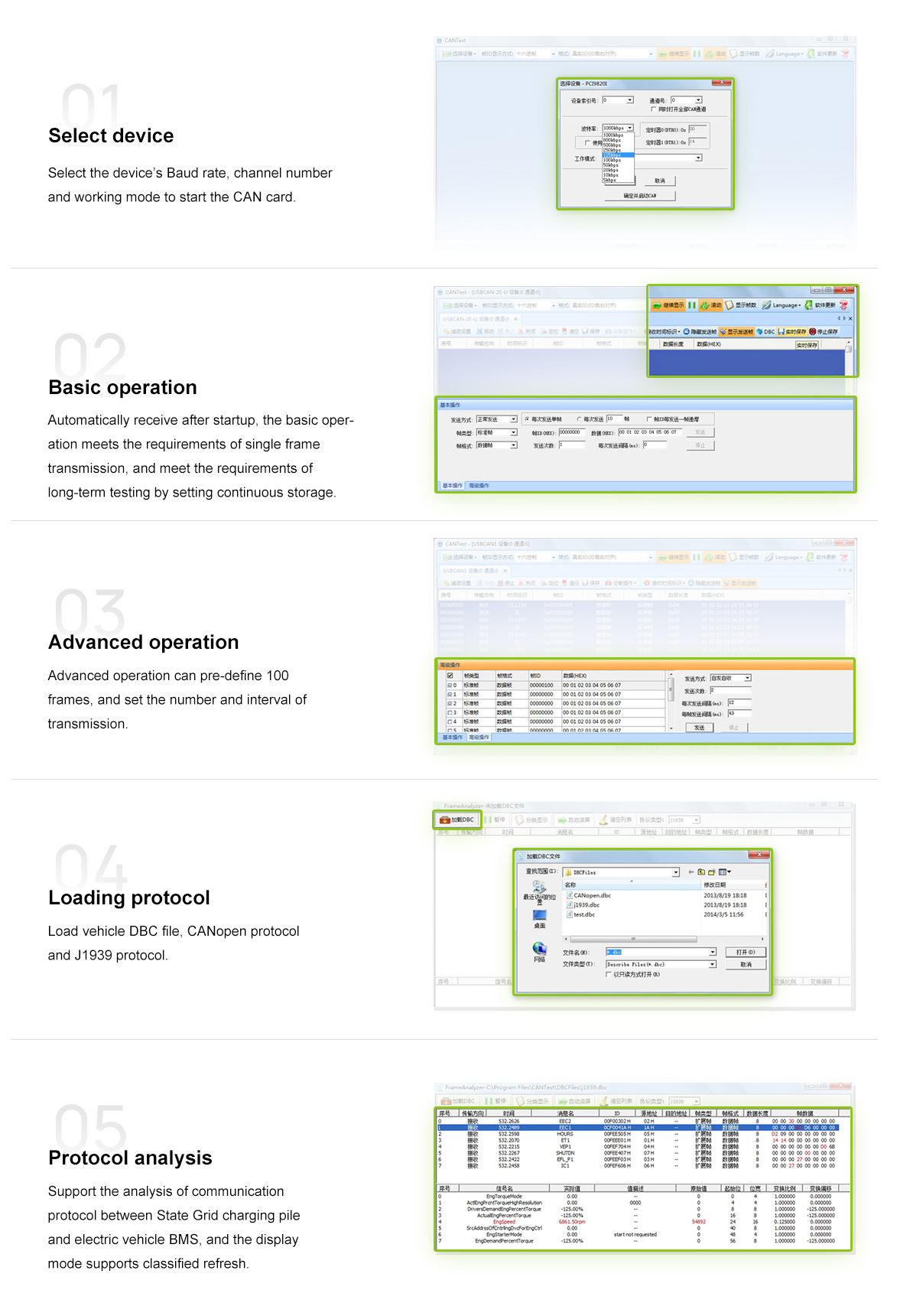

Powerful CANtest Testing and Analyzing Software
1．Select device Baud rate, channel number and operating mode to start CAN card.
2．Perform automatic reception after startup. A single-frame transmission can be achieved in a basic operation. Users can set continuous storage for long-term testing.
3．For advanced operations, 100 frames can be predefined; the transmission counts and intervals can also be set.
4．Vehicular DBC files, CANopen protocol and J1939 protocol can be loaded.
5．The BMS communication protocol analysis for state grid charging pile and electric automobile are supported, and the display can be classified to refresh.

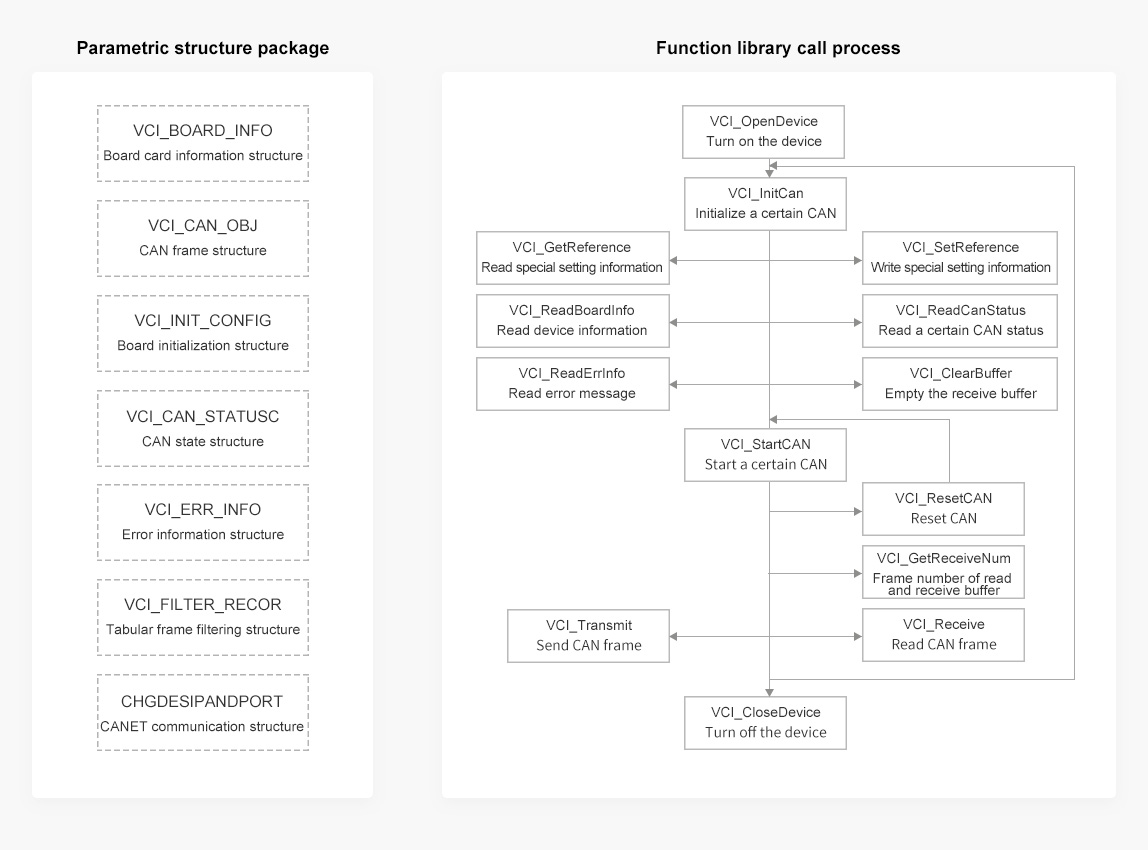

Secondary Development Function Library
All CAN cards from ZHIYUAN Electronics share the same PC secondary development function library (supporting major development environments like VC, VB, C#, LINUX, Labview, LabWindows and Delphi 7), and users can freely switch interfaces just by modifying device types.
