CAN Card for PCIe Interface
The PCIe Series universal CAN card is a dual-channel CAN interface card of PCI Expressx1 specification and a high-performance CAN interface card of 2-channel CAN interfaces. By plugging into the PC’s PCIe interface.
With its small size, the PCIe Series universal CAN card can fit into any type of 3.3V/DC PCI Express slots. With high-end PCIe control chip, it comes with very high communication speed and instantaneity. The CAN interface is equipped with a magnetic coupling isolation module which can avoid ground circulation damage and has such powerful antistatic and anti-surge function that it is still usable in extreme environments.
The CAN card support Win2000/XP/WIN7/WIN8/WIN10 operating systems.
Product Selection

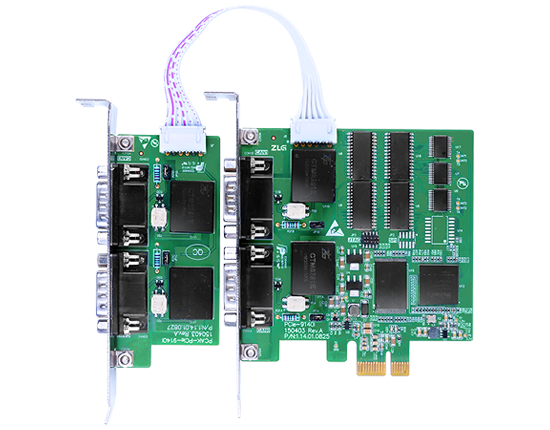

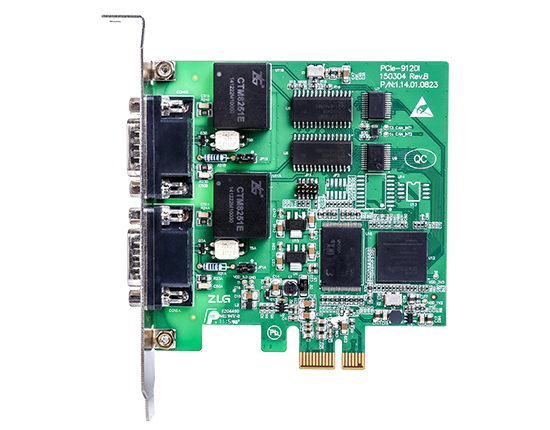

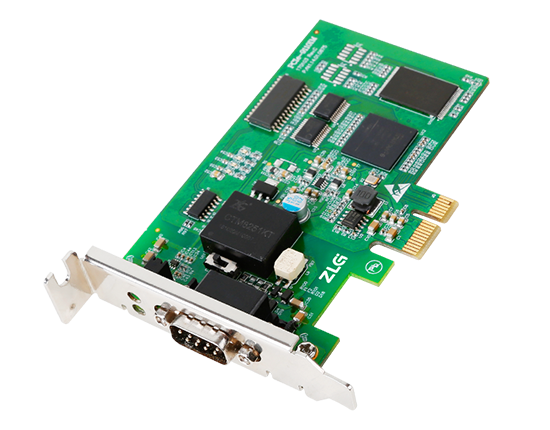

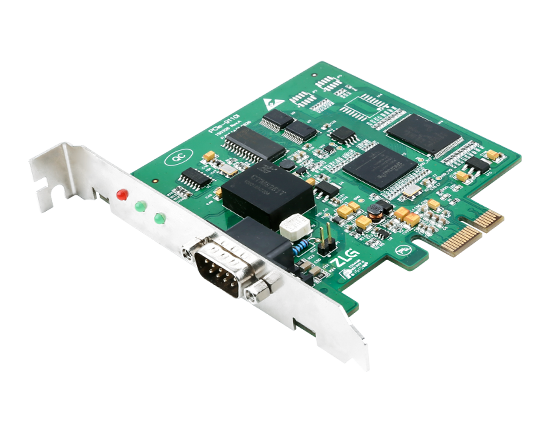

| Models | PCIe-9140I | PCIe-9120I | PCIe-9110I | PCIe-9221 |
|---|---|---|---|---|
| Pictures |  |  |  |  |
| Features | High speed and low latency | High speed and low latency | High speed and low latency | Use dedicated PCIe chip. The deliverytime is long. |
| CAN channels | 4 channels | 2 channels | 1 channel | 2 channels |
| Interface type | DB9 port | DB9 port | DB9 port | DB9 port |
| Electrical isolation | √ | √ | √ | √ |
| Industrial grade | √ | √ | √ | √ |
| Data reception capability | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) | 14000 frames/second (each channel) |
| Data transmission capability | 4000 frames/second (each channel) | 4000 frames/second (each channel) | 4000 frames/second (each channel) | 4000 frames/second (each channel) |
| Windows system drive | supported | supported | supported | supported |
| Linux system drive | supported | supported | supported | - |
| Vxworks drive | - | - | - | - |

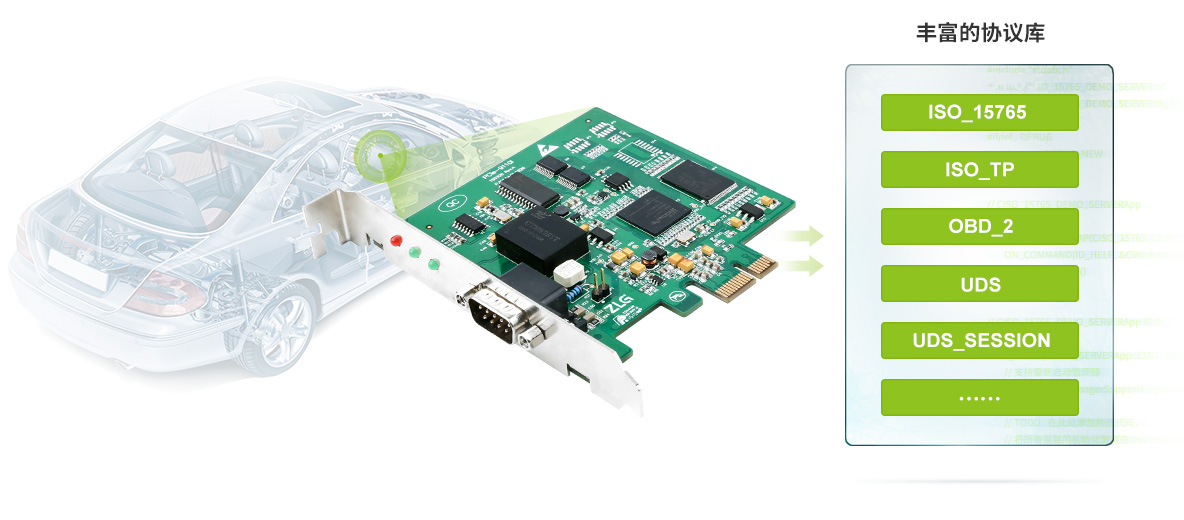

Worldwide State-of-the-art Solution, Excellent Communication Performance and Stable Operation

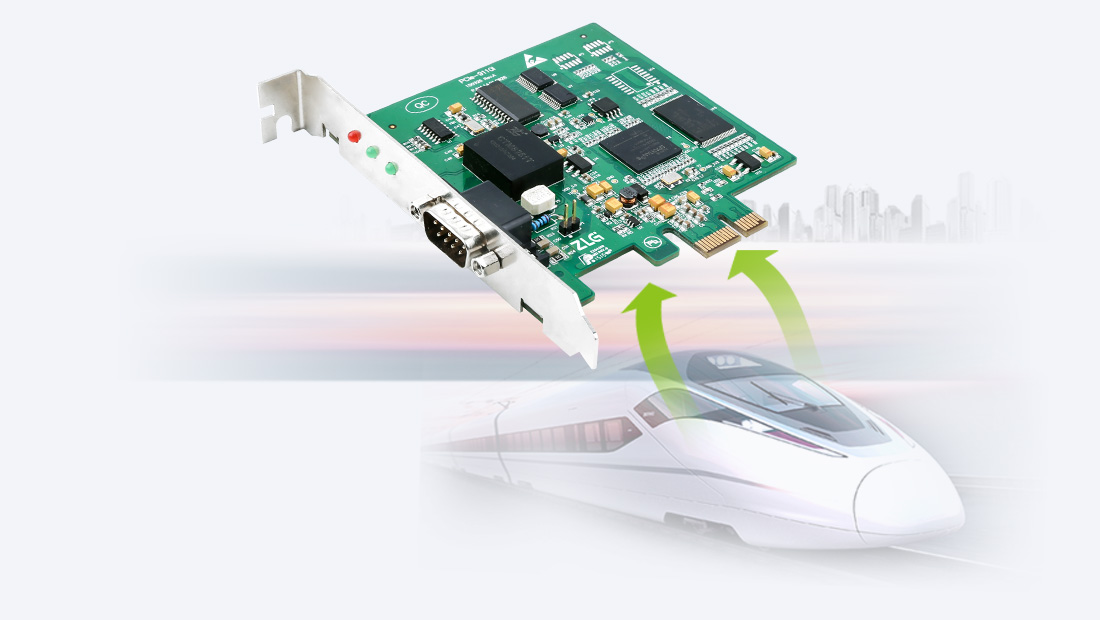

It is used with worldwide state-of-the-art solution and has excellent communication performance as well as stable operation, which is widely applied to high-speed railways, metros, aerospace, building security, elevator control, weighing apparatus, medical equipments and so on.
1~4-Channel 3500VDC Electrical Isolation
It has 1~4-channel CAN interface with 3500VDC electrical isolation and ±8KV electrostatic discharge.
130,000-frame Super Buffer with no Frame Loss
High-performance type with full-load reception capability at any Baud rate; 130,000-frame super buffer with no frame loss as the top priority

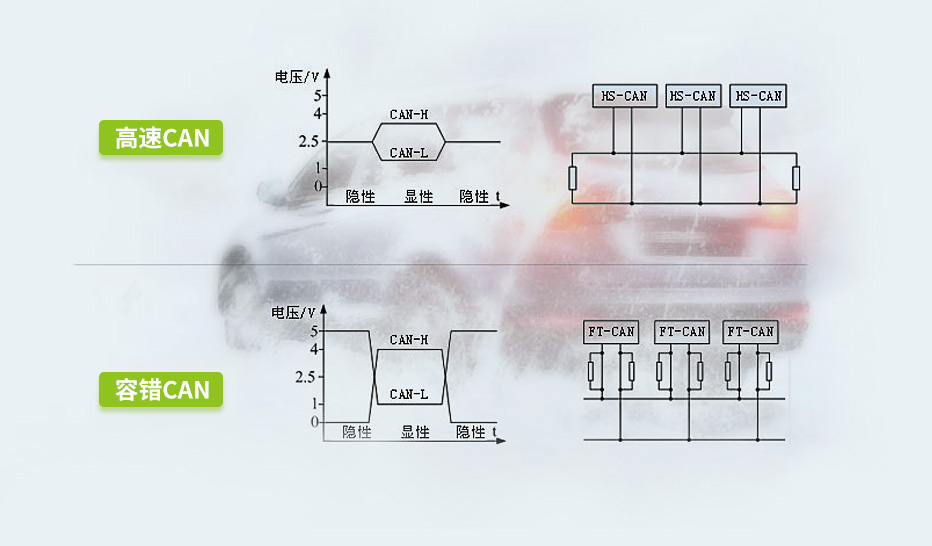

Compliant with CAN2.0B Specification
CAN protocol is fully compliant with CAN2.0B specification and ISO11898-1/2 and compatible with CAN2.0A. Users can choose CANBridge-1054 to support fault-tolerant CAN standard of ISO11898-3.
CAN Baud Rate Can Be Set at Random within 1Mbps

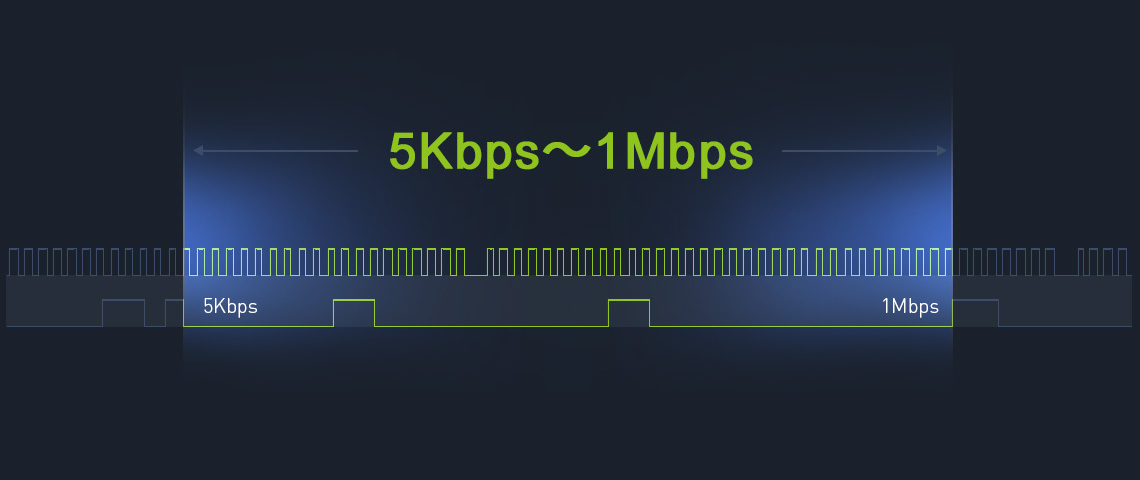

The CAN Baud rate can be set at random in the range of 5kbps～1Mbps.
Support Various Development Environments
It has effective and easy secondary development function, and supports various development environments like VC, C#, Labview, LINUX, etc.

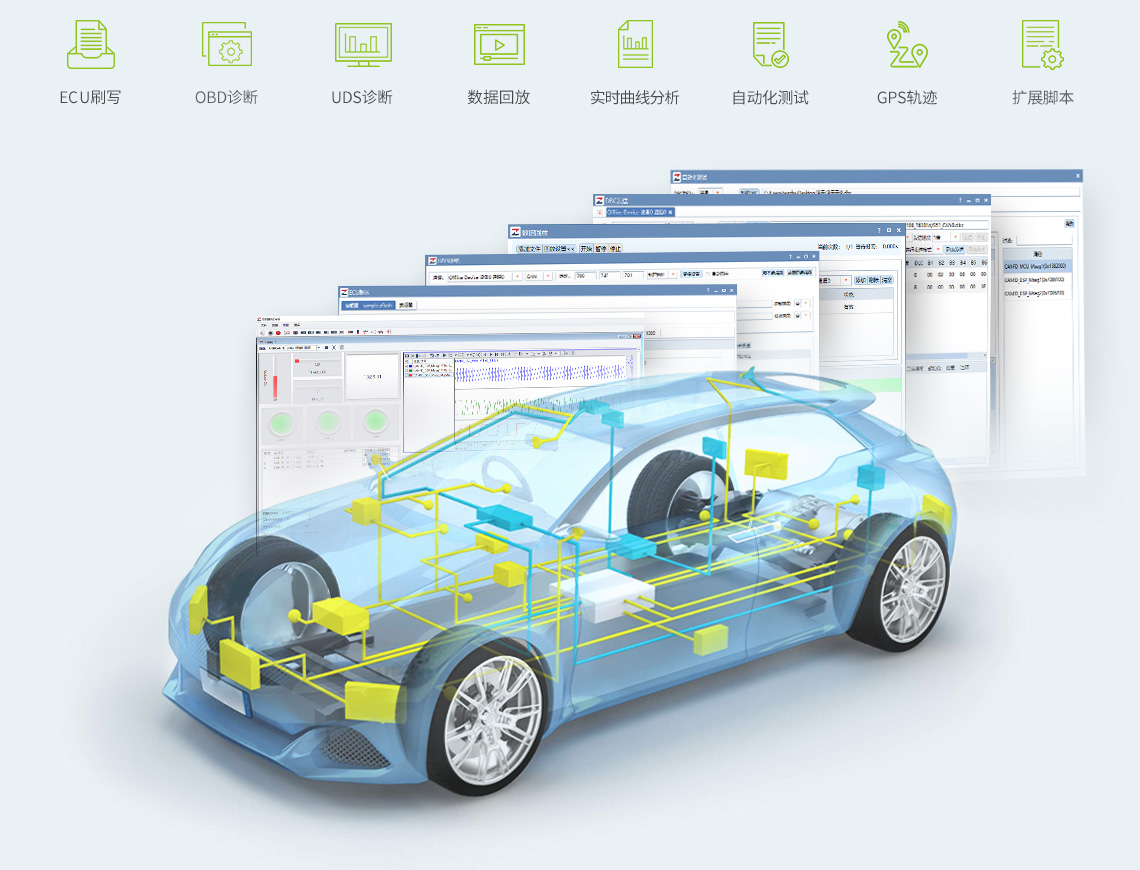

Powerful CANtest Testing and Analyzing Software

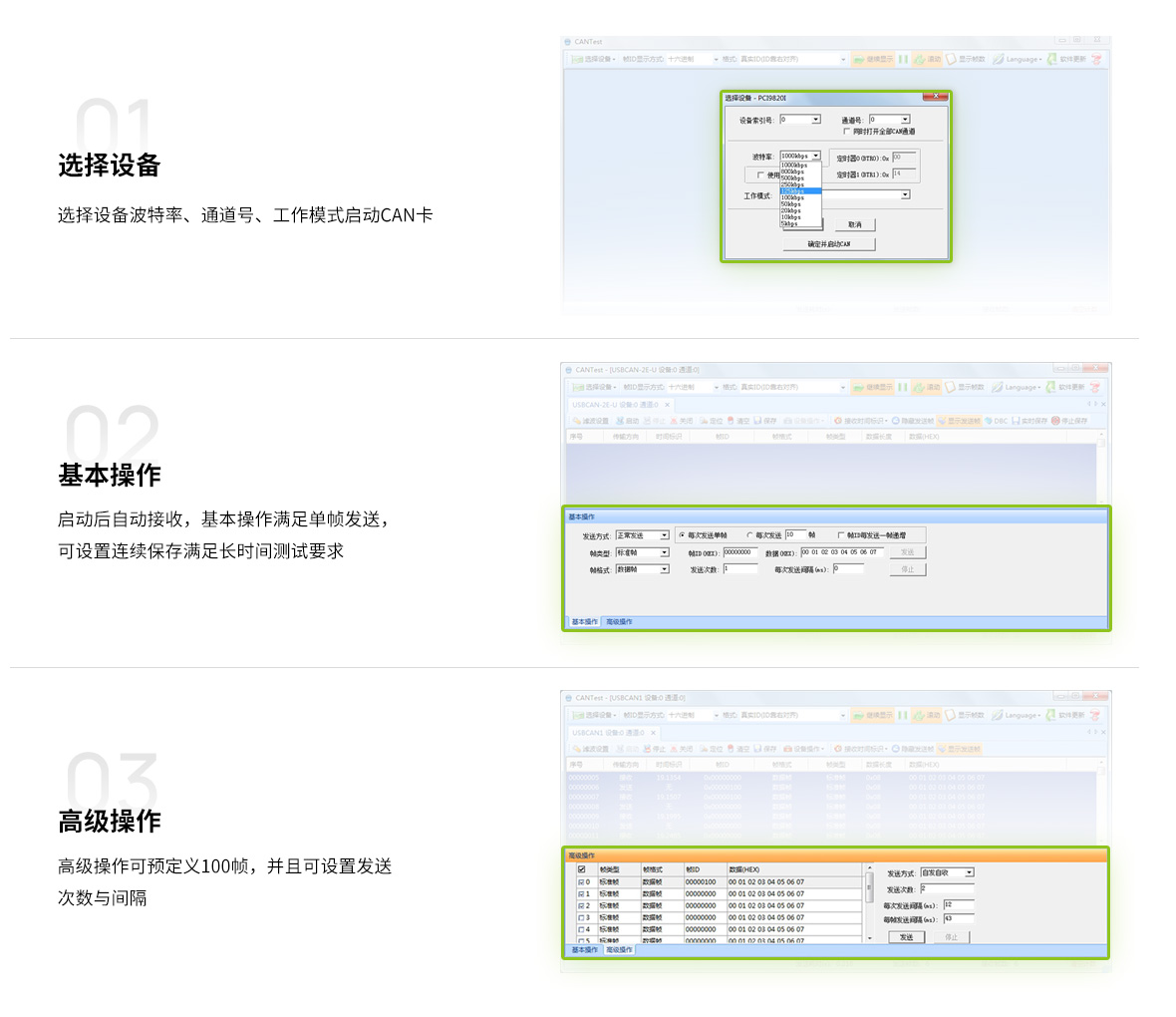

1．Select device Baud rate, channel number and operating mode to start CAN card.
2．Perform automatic reception after startup. A single-frame transmission can be achieved in a basic operation. Users can set continuous storage for long-term testing.
3．For advanced operations, 100 frames can be predefined; the transmission counts and intervals can also be set.

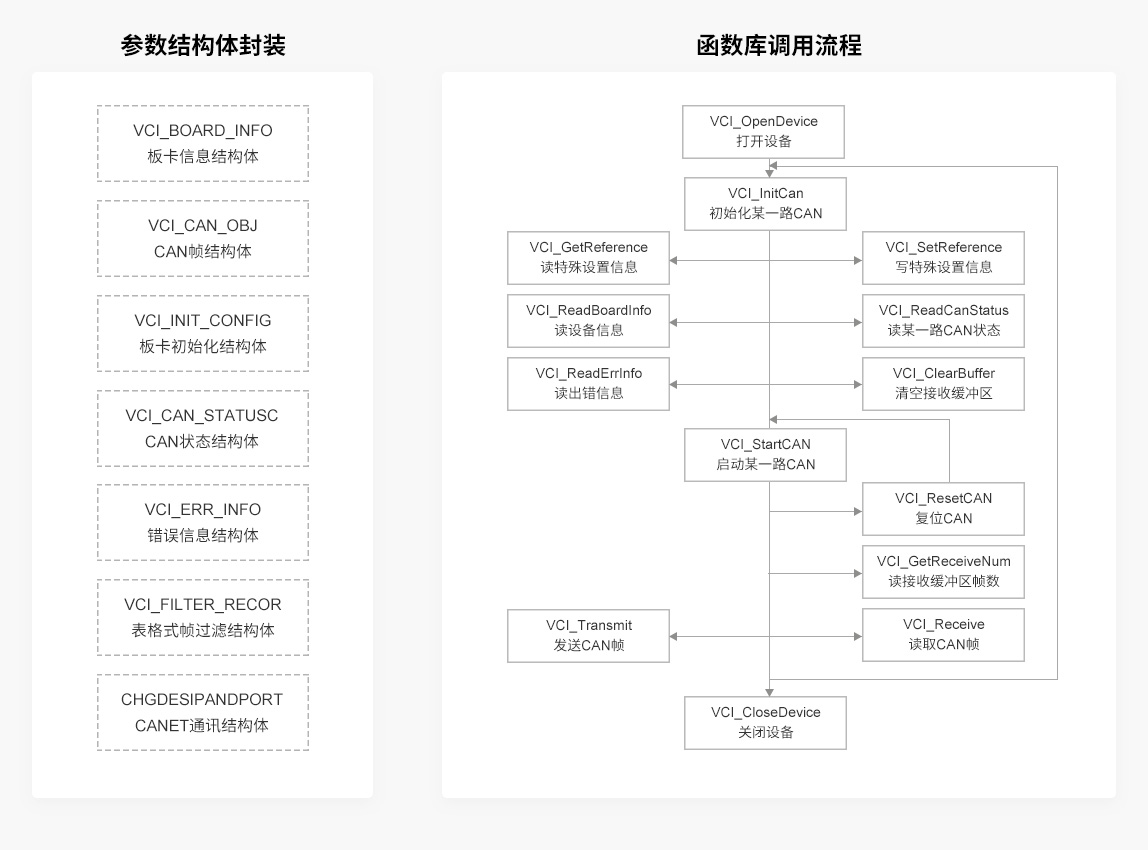

Secondary Development Function Library
All CAN cards from ZHIYUAN Electronics share the same PC secondary development function library (supporting major development environments like VC, VB, C#, LINUX, Labview, LabWindows and Delphi 7), and users can freely switch interfaces just by modifying device types.
